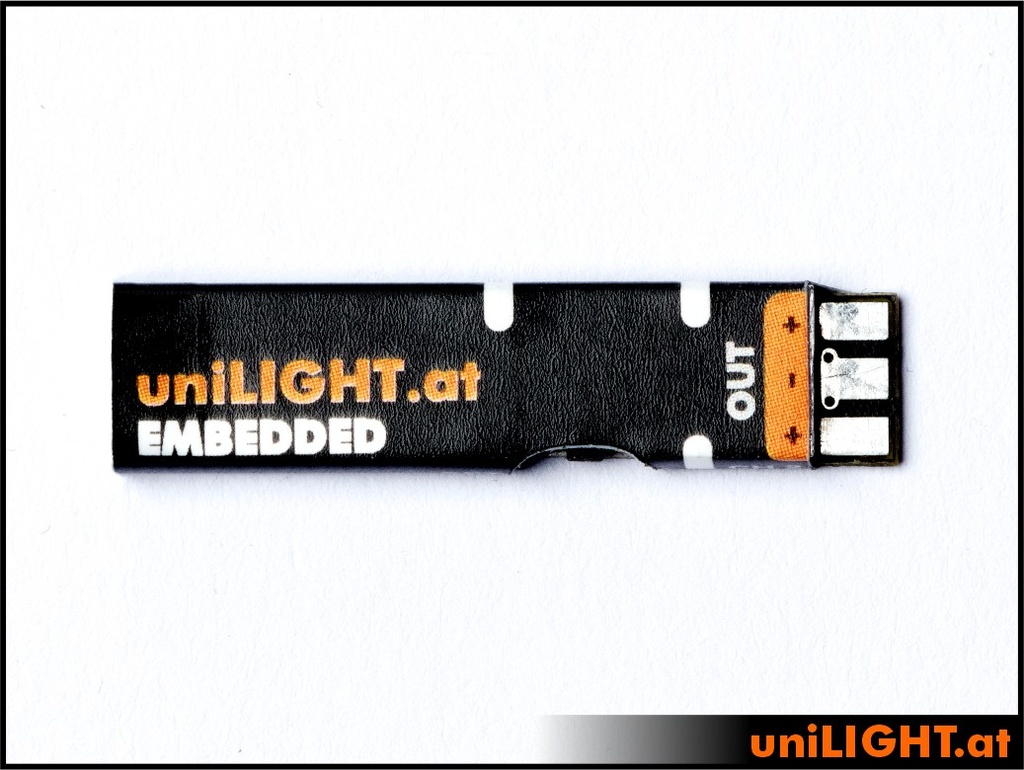

uniLIGHT EMBEDDED
MODUL-EMB
The EMBEDDED is the smallest yet most advanced lighting controller from uniLIGHT.at. Measuring just 7x30x2.5mm, as compact as a match, small enough to fit into tight spaces, such as inside lights or in industrial applications. Supporting 1 ½ functions, it offers one fully configurable channel and a second switched channel, used in applications like powering the navigation light of a DUAL light setup.
Equipped with a wide range of both new and traditional features, the EMBEDDED is suited for nearly all applications. As a member of the uniLIGHTPLUS family, it can be fully programmed and configured with the programming cable and uniLIGHT DESK. The button allows for adjustments to the blink pattern and its speed in solo operation.
For design efficiency, the EMBEDDED does not feature our standard connectors for lights, as it is often installed directly into the lamp itself, allowing for a compact build. Due to the fixed wiring, no short circuit or polarity protection is included, as these features were omitted to save space.
As a cost-optimized OEM version, the EMBEDDED can be easily integrated into professional applications.
Connection voltage: 4,8-9,6V
Weight (without cable): 1g
Dimentions: 7.3x30.8x2.6mm (W/L/H)
Current max: 3A, up to 16V
impulse current max: 5A, to 16V
Galvanically isolated curcuit: NO
Operational without RC Signal: YES
Operation in uniLIGHTPLUS datamode: YES
Variable speed effects: 8 + 1 freely configurable
Fully assembled with a servo connection cable for direct operation via the receiver, and a Y-splitter cable for separately connecting the battery. The lights can be directly soldered.
the EMBEDDED can be connected directly to a battery or via the included Y-cable. For uniLIGHT.at lights, this is typically a 2S LiPo battery. However, the controller can also be directly connected to HV systems through the receiver.
