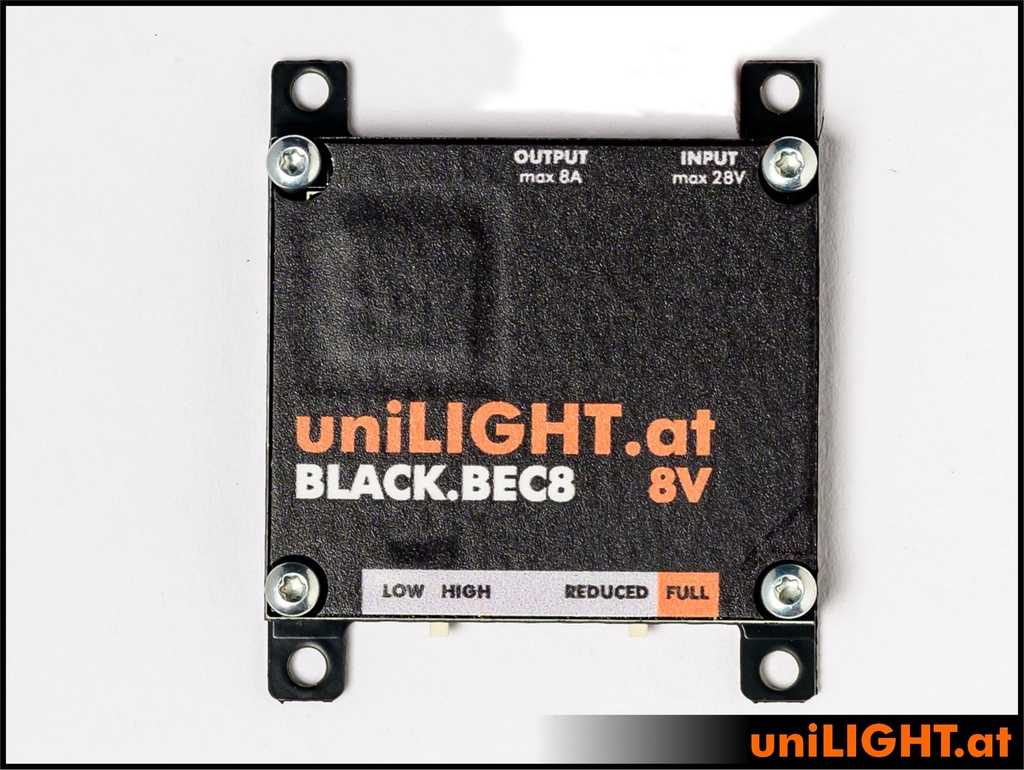

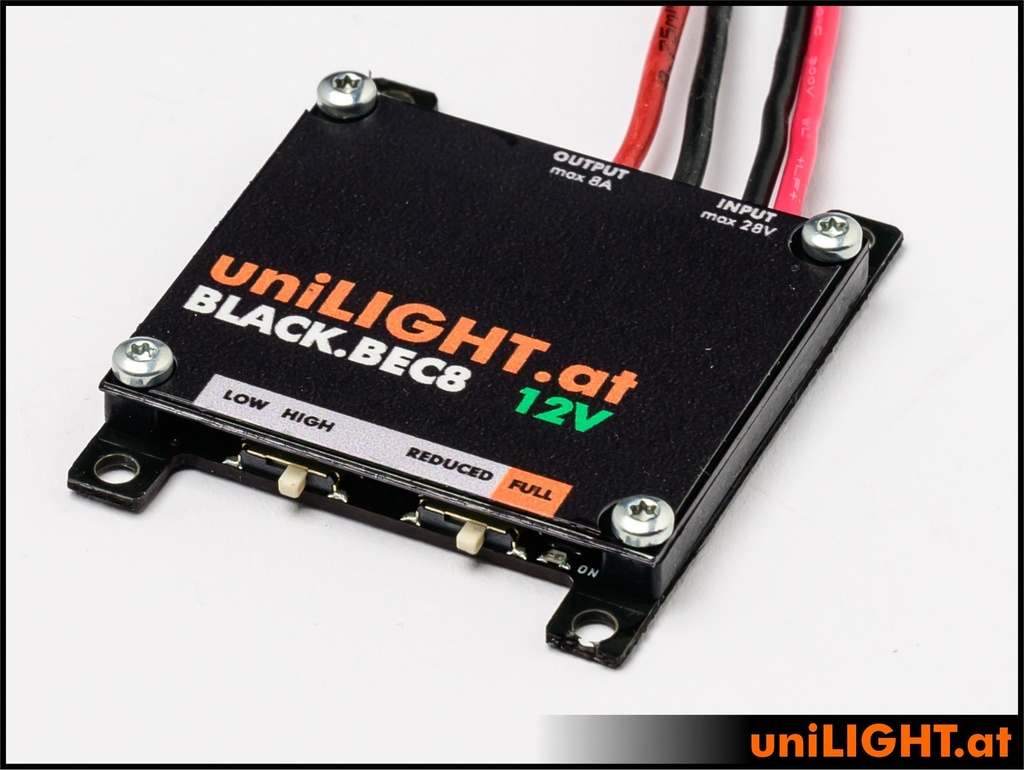

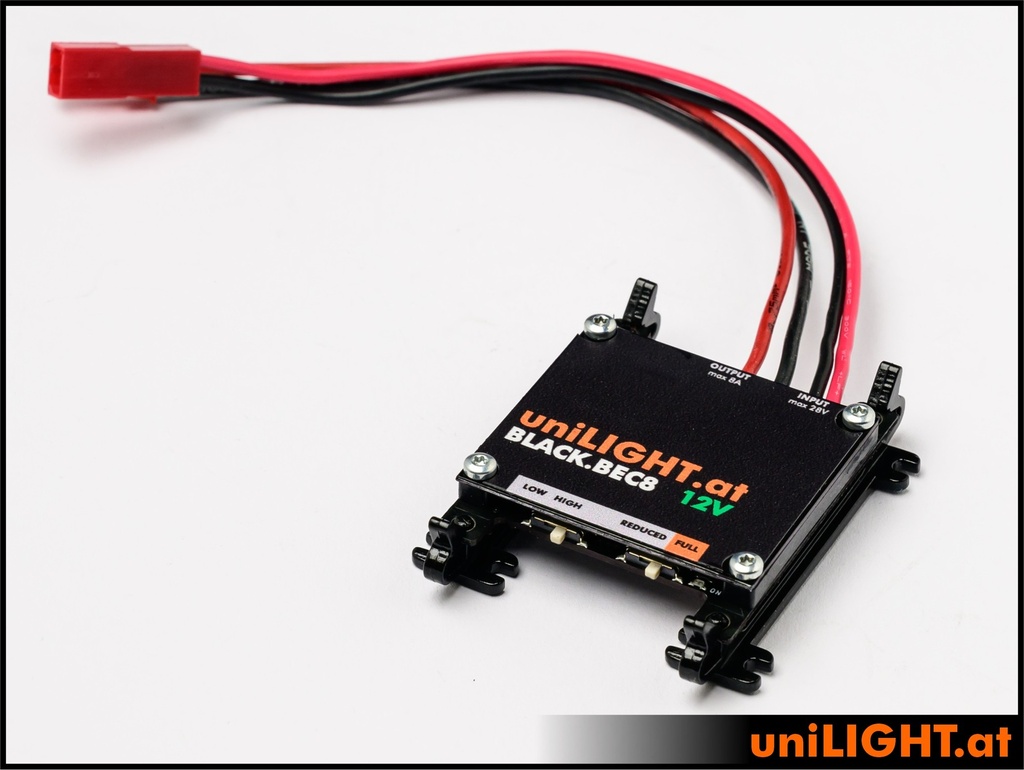

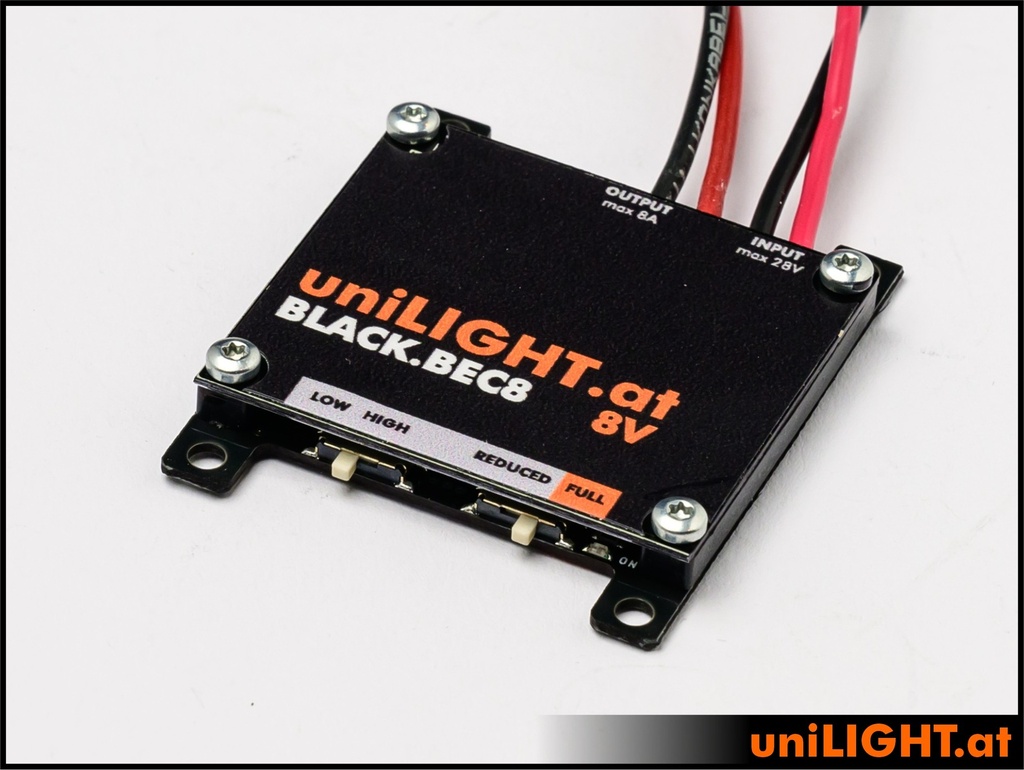

uniLIGHT BEC module, 8A
MODUL-BEC8
BEC Module up to 5A constant current, 8A peak current
Our BEC Module (Battery Elimination Circuit) is specifically designed for use with uniLIGHT.at lighting systems, offering high performance in a compact form.
The module allows for the direct generation of the required constant voltage from a drive battery (up to 28V/6S). There are two versions available: the 8V/2S version, designed for standard lighting systems, and the 12V/3S version, intended for glider ACL use.
To use the module, simply connect it to the drive battery, and the lighting system can be powered directly from the output. Due to the galvanic isolation of the uniLIGHT controllers, there is no risk of interference in the receiver range. The module can operate lighting systems with up to 5A continuous current and 8A peak current.
In addition, this BEC Module offers further adjustment options via small switches on the side.
SWITCH FULL
Provides full/maximal voltage of 8.4V for standard lighting systems or 13V for glider ACL.
SWITCH REDUCED - HIGH/LOW
Reduces the output voltage to slightly or significantly dim the lighting system to prevent glare at dusk or allow operation during an exhibition without overheating.
Operating voltage input: up to 26VDC
Output current, constant: up to 5A
Peak current: 8A
Output voltage 8V version: 8.4V / 8.0V / 6.4V
Output voltage 12V version: 13V / 12V / 9V
Weight (without cable): approx. 26g
Dimentions: 35x48x5mm

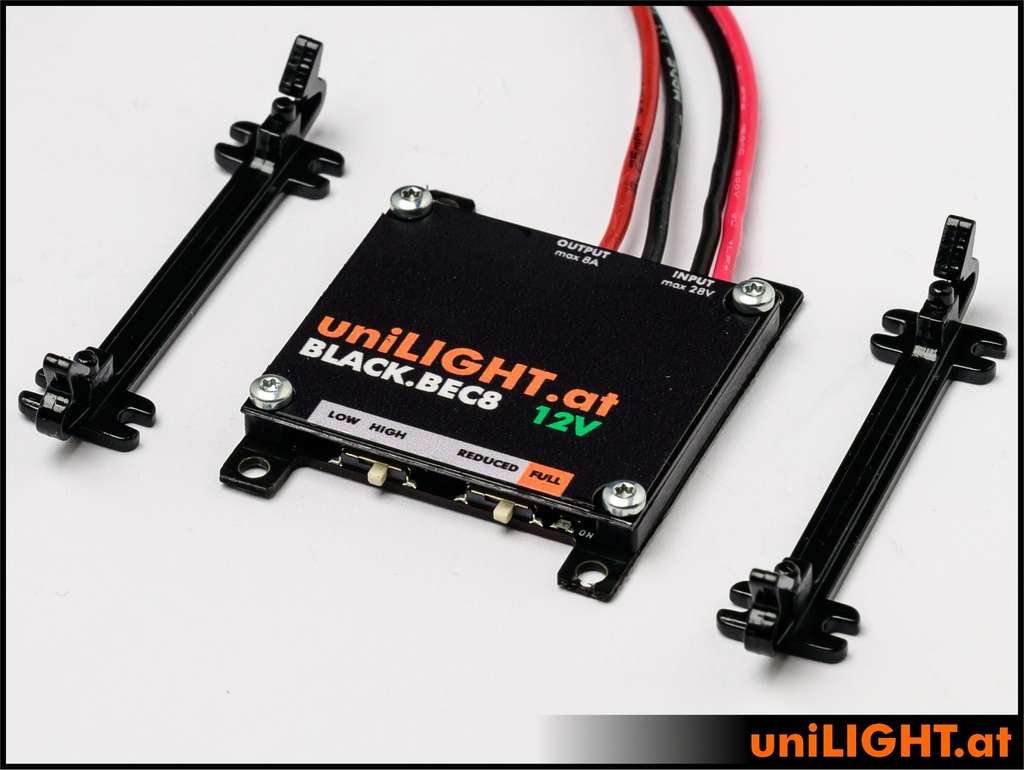

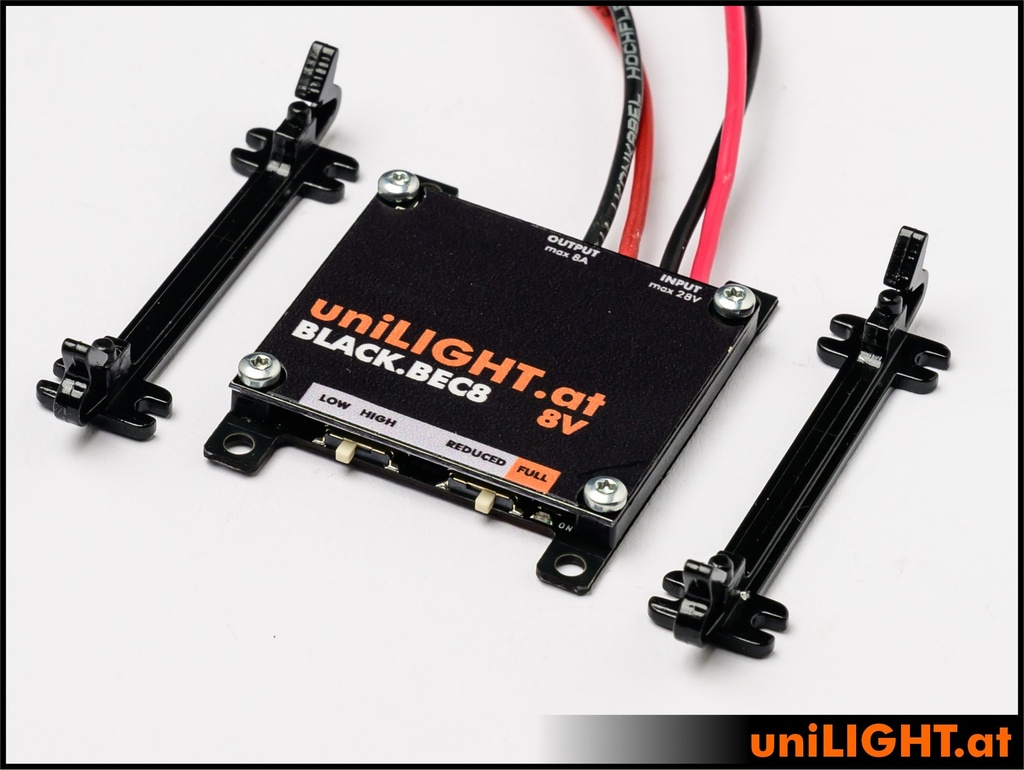

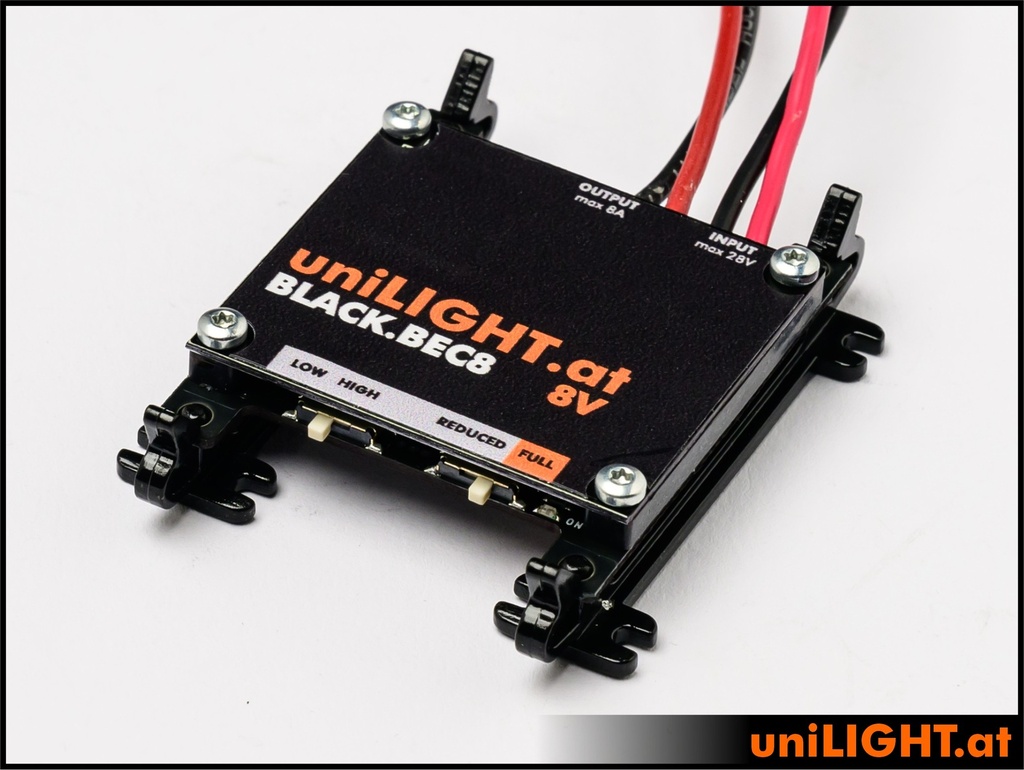

JST BEC cable M/F, mounting brackets
| Function: Power Supply |
The BEC System MODUL8 is specifically designed for lighting systems and is not intended for use with RC systems. In the event of an overload, the module may shut down to protect itself from damage!
