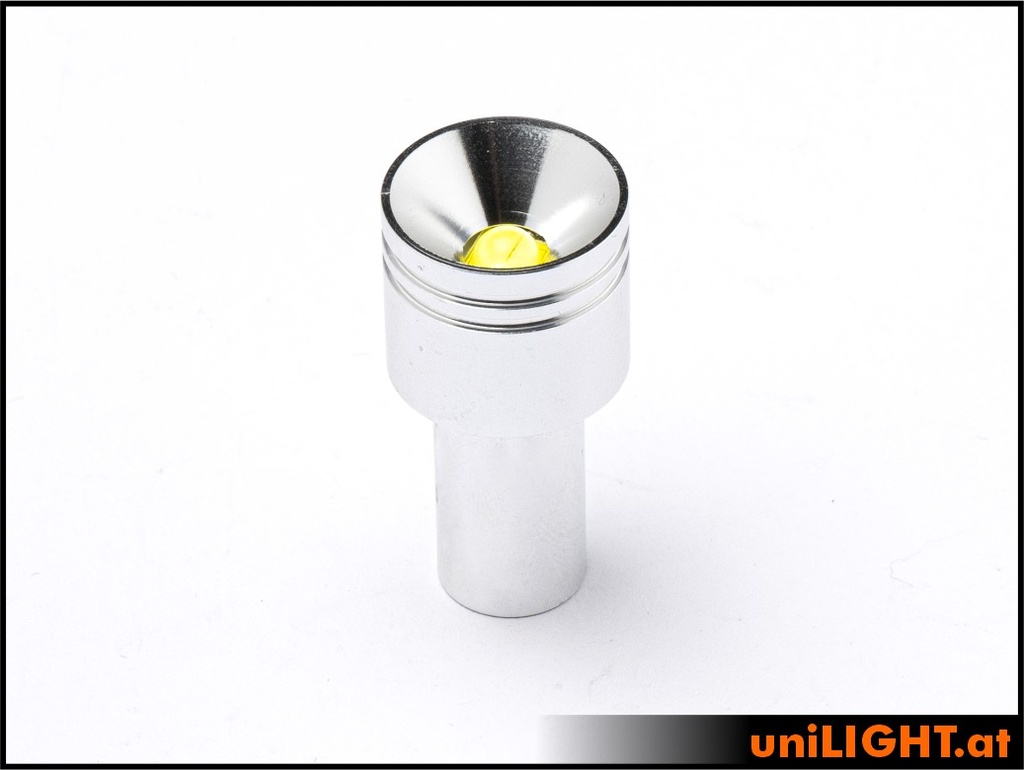

16mm Aluminum Spotlight, 5Wx2
SPOT16-050x2-WE
Compact 16mm spotlight with 300 lumen light output
Small spotlight with a sophisticated LED chip technology and a CNC-manufactured aluminum reflector with a 16mm diameter mounted on an aluminum body. This spotlight delivers 300 lumens of light output with only 5W of electrical power.
Performance: 5Wx2 reference power
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.45A
Beam angle: ~100°
Light intensity: ~300 Lumen WHITE
Dimension: D16mm, mounting hole D10mm
Weight: 6g (without cable)
Equipped with a 1m connection cable.
| Colour: White |
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Dimension: 16mm |
| Design: Round |
| Function: Spot |
Internal Reference:
SPOT16-050x2-WE
A 10mm mounting hole is required.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3-4 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
