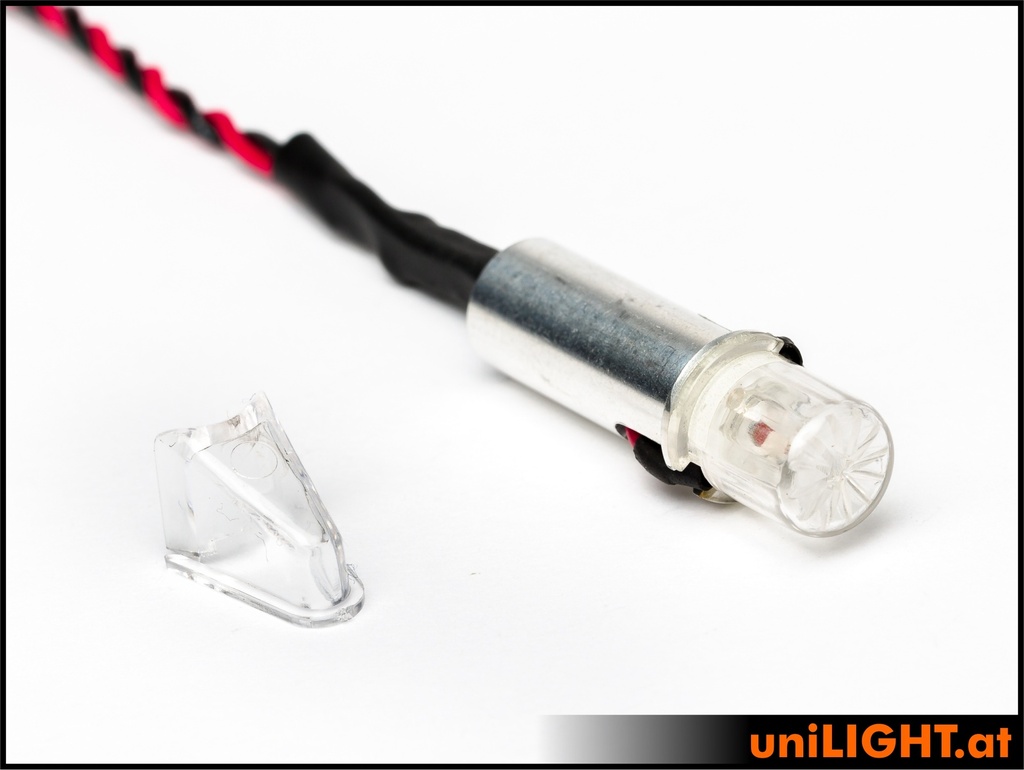

10mm SLIM Navigation Light, 4W, SHORT
SLIMX-040-RT-SALE
Compact LED Light of the SLIM line with 4W reference power for operating as position/navigation light compatable with a variety of models. The light comes pre-assembled and mounted on a CNC-manufactured aluminum carrier.
Electricity: 4W reference power,
Voltage: 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~80 Lumen GREEN
Light intensity: ~110 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10/12mm, 25mm length
Weight: 4g (without cable)
Ideal as a navigation light on all models from 1.5m to 2.5m
Equipped with 1m silicone cable and pre-configured resistor for 2S.
1x 10mm cylinder cap
1x 10mm profile extension
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Colour: Green |
| Design: Round |
| Function: Navigation/Position Light |
| Dimensions: 10mm |
Internal Reference:
SLIMX-040-RT-SALE
The caps can be glued separately before or after installing the light and/or painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Por, silicone, canopy glue, usw.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. However, these lights are only suitable for flash operation, as they would quickly overheat if left on continuously. Duty cycle up to approx. 20%.
We cannot guarantee against overheating. Information on the reference power is only a comparison value between the lamps offered. They usually refer to an operating voltage of 12V/3S Lipo.
Attention: The LED lights are extremely bright! Never look directly into an LED!
