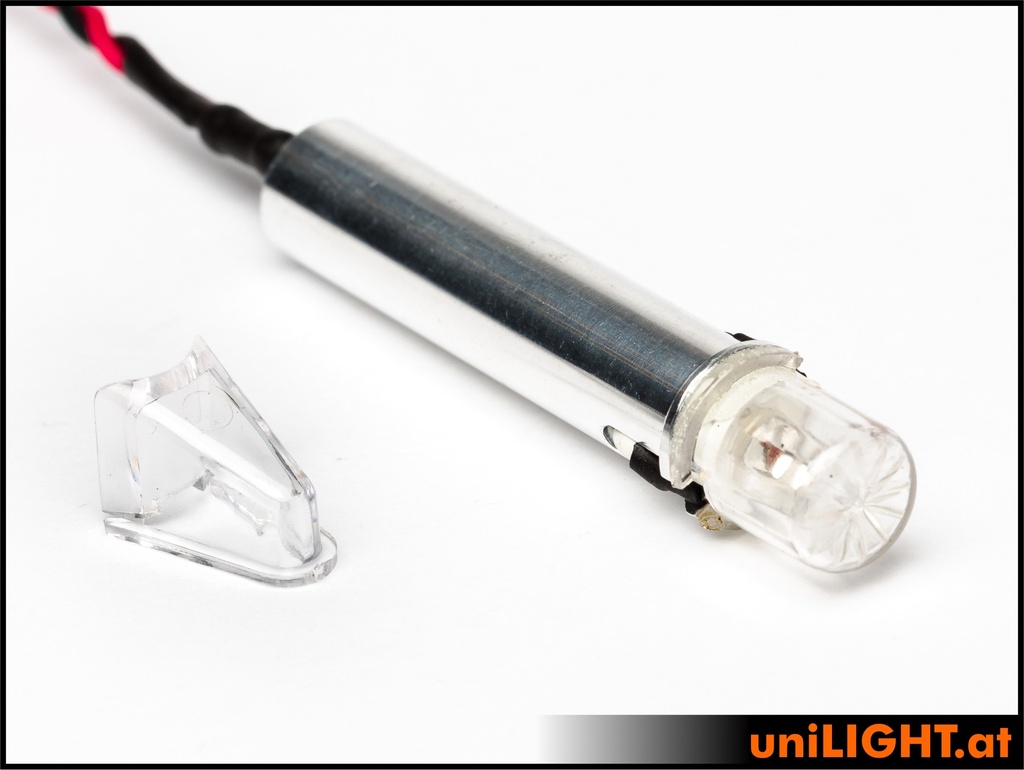

10mm SLIM Navigation light, 8Wx2, T-Fuse
SLIMF-080x2-GN-SALE
Compact LED Light of the SLIM line with 8W reference power x2 chip technology for operation as a position/navigation light on a wide range of models. The light comes pre-assembled and mounted on a CNC-manufactured aluminum carrier.
The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down.
Electricity: 8Wx2 reference power,
Übertemperaturschutz: bei 65-70° wird die Leuchte sicher abgeschaltet bzw. getaktet
Voltage: 8(12)V, 0.7A
Beam angle: >160°
Light intensity: ~200 Lumen RED
Light intensity: ~300 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10/12mm, 45mm length
Weight: 5g (without cable)
Ideal as a navigation light on all models from 1.5m to 2.5m
Equipped with 1m silicone cable and pre-configured resistor for 2S.
1x 10mm cylinder cap
1x 10mm profile extension
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Colour: Green |
| Design: Round |
| Function: Navigation/Position Light |
| Dimensions: 10mm |
Internal Reference:
SLIMF-080x2-GN-SALE
The caps can be glued separately before or after installing the light and/or painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Por, silicone, canopy glue, usw.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. However, these lights are only suitable for flash operation, as they would quickly overheat if left on continuously. Duty cycle up to approx. 20%.
We cannot guarantee against overheating. Information on the reference power is only a comparison value between the lamps offered. They usually refer to an operating voltage of 12V/3S Lipo.
Attention: The LED lights are extremely bright! Never look directly into an LED!
