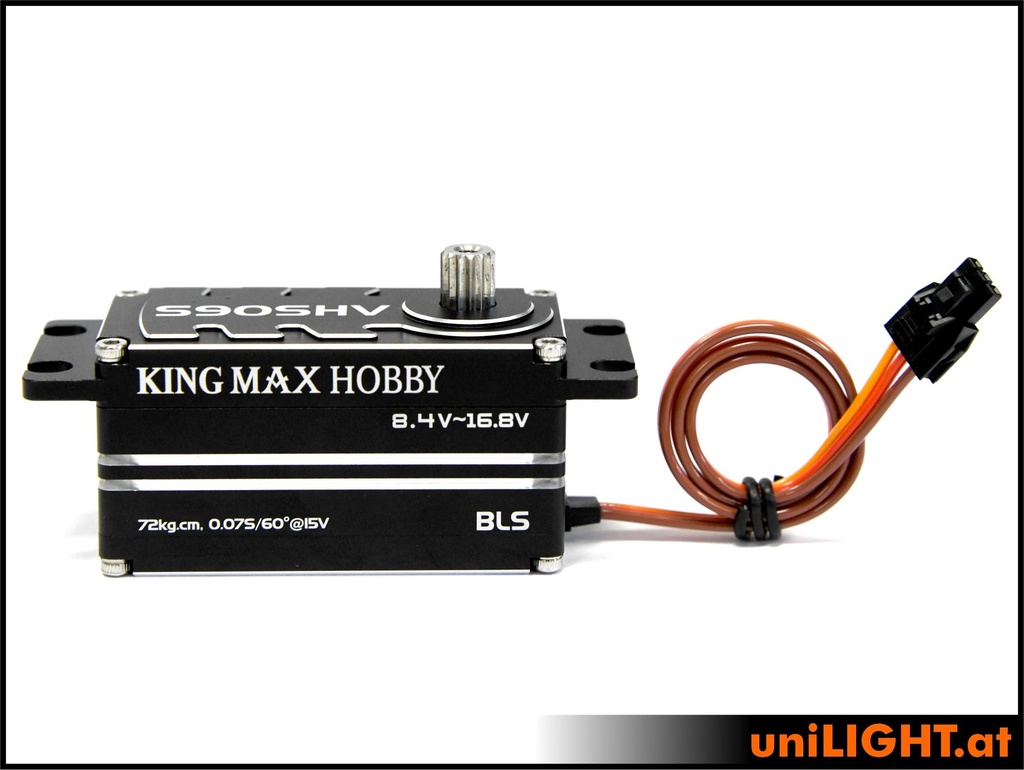

30mm SHV-Servo S90SHV, ALU, MG

https://www.unilight.at/web/image/product.template/3263/image_1920?unique=9496ebb

S90SHV

Double Voltager = Half Current!

The S90SHV Servo from the premium STORM series is a powerhouse in the 30mm class, designed for SHV systems up to 16.8V/4S. Delivering unmatched efficiency and performance, it features robust steel gears, a precision-engineered brushless motor, and high-quality potentiometers for superior reliability and longevity.

Ideal for large-scale models, its advanced soft-start system ensures smooth engagement, while the full CNC aluminum housing offers exceptional durability. Fully waterproof, this servo is the epitome of cutting-edge technology for demanding applications.

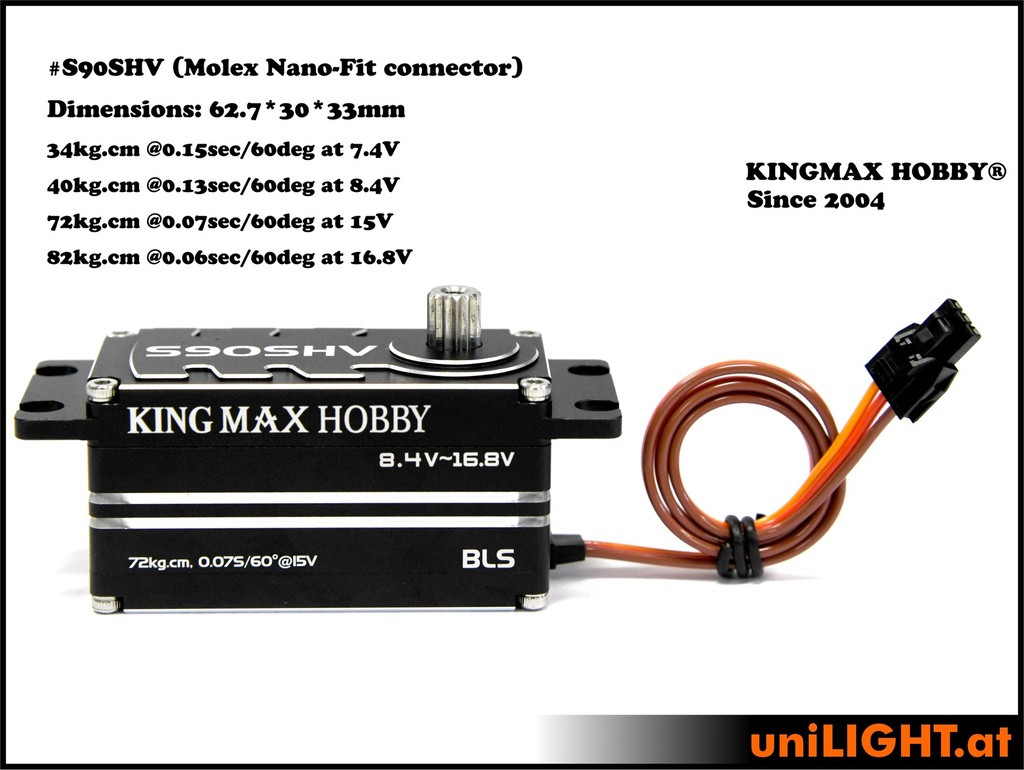

Technical Data:

Operating Speed(7.4V):0.15sec/60degrees
Operating Speed(8.4V):0.13sec/60degrees
Operating Speed(12V):0.09sec/60degrees
Operating Speed(15V):0.07sec/60degrees
Operating Speed(16.8V):0.06sec/60degrees
Stall torque(16.8V):82g.cm
Dimensions:62.7*30*33mm
Weight:156g
Connector Wire Length: 280mm, Molex Nano-Fit

191.58 € 191.58 EUR 191.58 €

191.58 €

Not Available For Sale

  • Stall Torque (16.8V)
  • Blockiermoment (15V)
  • Blockiermoment (12.6V)
  • Stall Torque (8.4V)
  • Stall Torque (7.4V)
  • Speed (16.8V)
  • Geschwindigkeit (15V)
  • Geschwindigkeit (12.6V)
  • Speed (8.4V)
  • Speed (7.4V)
  • Family
  • Weight
  • Gear
  • Body
  • Ball Bearings
  • Motor
  • Softstart
  • Programmable
  • Axis
  • Width
  • Length
  • Height

This combination does not exist.

Stall Torque (16.8V): 82kg.cm
Blockiermoment (15V): 74kg.cm
Blockiermoment (12.6V): 62kg.cm
Stall Torque (8.4V): 40kg.cm
Stall Torque (7.4V): 34kg.cm
Speed (16.8V): 0.06s/60°
Geschwindigkeit (15V): 0.07s/60°
Geschwindigkeit (12.6V): 0.09s/60°
Speed (8.4V): 0.13sec/60°
Speed (7.4V): 0.15s/60°
Family: 30mm SHV
Weight: 156g
Gear: Steel
Body: Aluminum
Ball Bearings: 2BB
Motor: Brushless
Softstart: No
Programmable: No
Axis: 7.50/15T
Width: 30mm
Length: 63mm
Height: 33mm

Internal Reference: S90SHV
