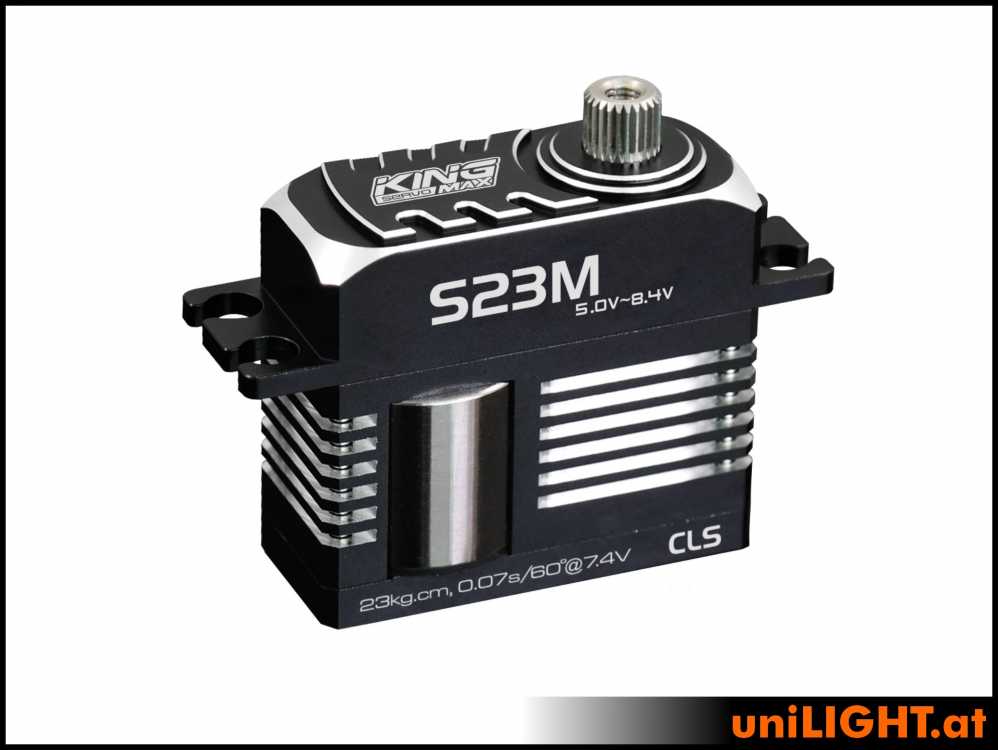

15mm MINI Servo S23M, HV, ALU, MG
S23M
Premium high-performance Miniservo of 15mm class with metal gears and aluminum housing
The S23M 15mm Mini Servo from the new STORM series is a premium high-performance servo for demanding RC enthusiasts. Designed with a larger coreless motor, it delivers the power and performance of a standard servo while maintaining a lightweight design of just 50g. Featuring a steel gears, top-quality potentiometers, and an integrated soft-start function, the S23M ensures exceptional durability, reliability, and smooth operation. The aluminum housing enhances cooling and structural strength, while high-voltage capability up to 8.4V guarantees consistent performance in high-demand applications. This high-end servo is perfect for those who require superior precision, power, and longevity in a compact 15mm form factor.
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):23.0kg.cm(319.47oz/in)
Maximum working torque(7.4V):10.4kg.cm(144.45oz/in)
Dimensions(L*W*H):36*15*33mm/1.40X0.58X1.28in
Weight:50.5g(1.78oz)
Connector Wire Length:JR220mm(8.58in)
| Speed (8.4V): 0.06/60° |
| Speed (7.4V): 0.07sec/60° |
| Speed (6V): 0.08s/60° |
| Family: 15mm Mini |
| Weight: 55g |

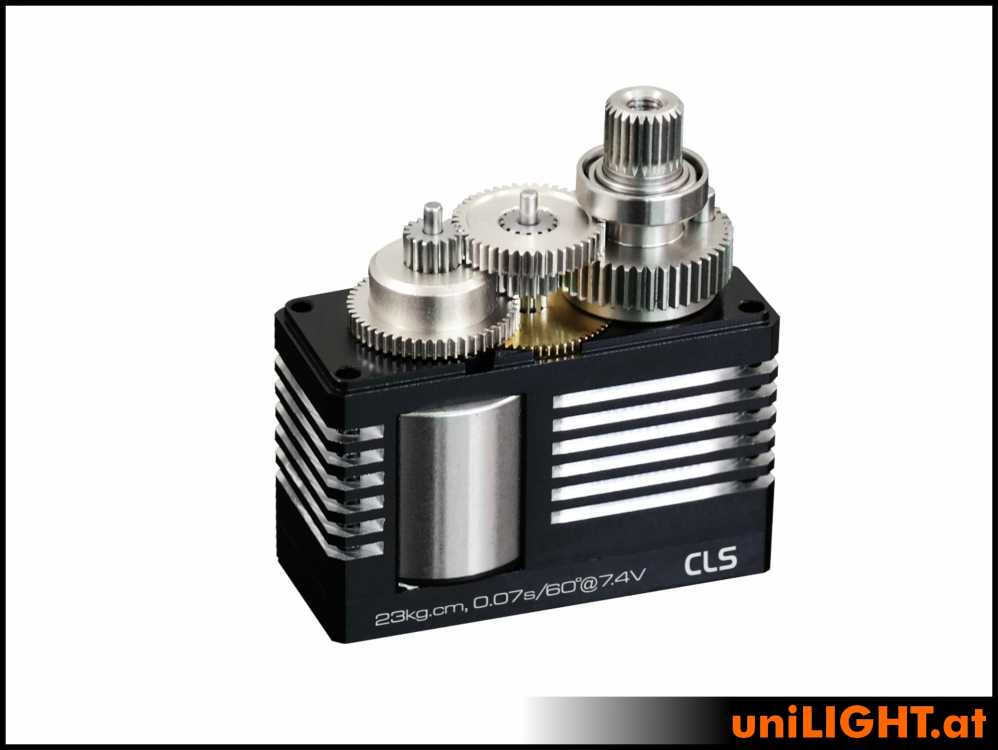

| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: Yes |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 15mm |
| Length: 36mm |
| Height: 33mm |
Internal Reference:
S23M
