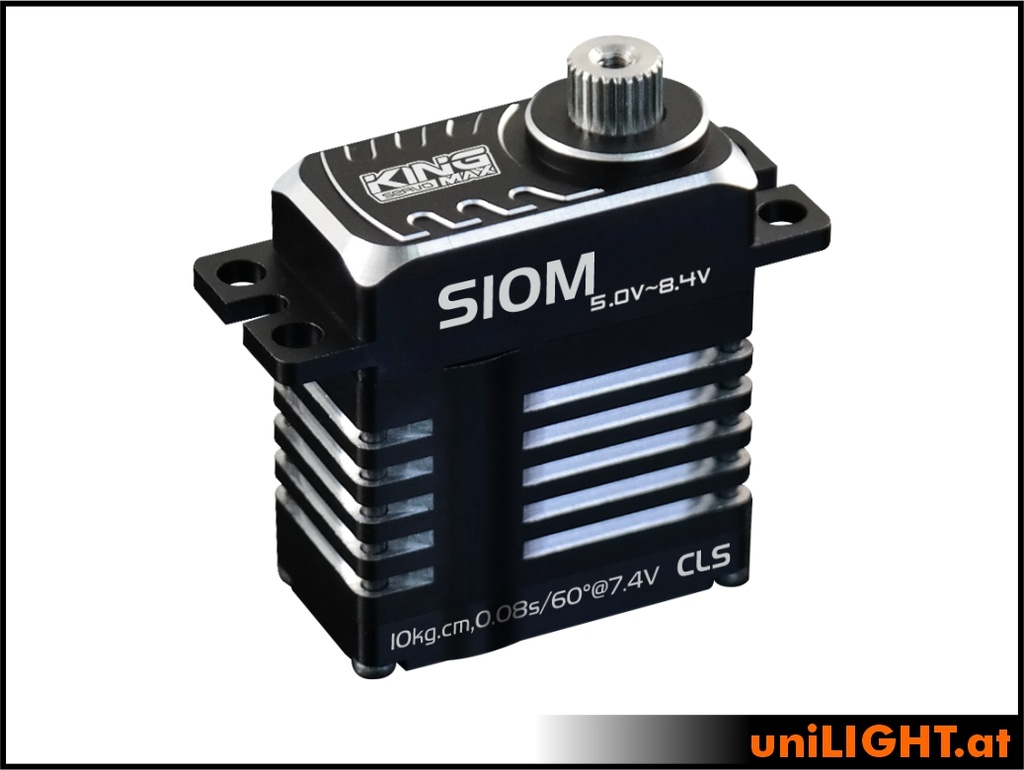

12mm Mini-Servo S10M, HV, ALU, MG
S10M
The S09M 12mm Mini Servo is a top-quality servo designed for demanding RC applications. With high-voltage (HV) capability up to 8.4V, it provides consistent and reliable performance under various conditions.

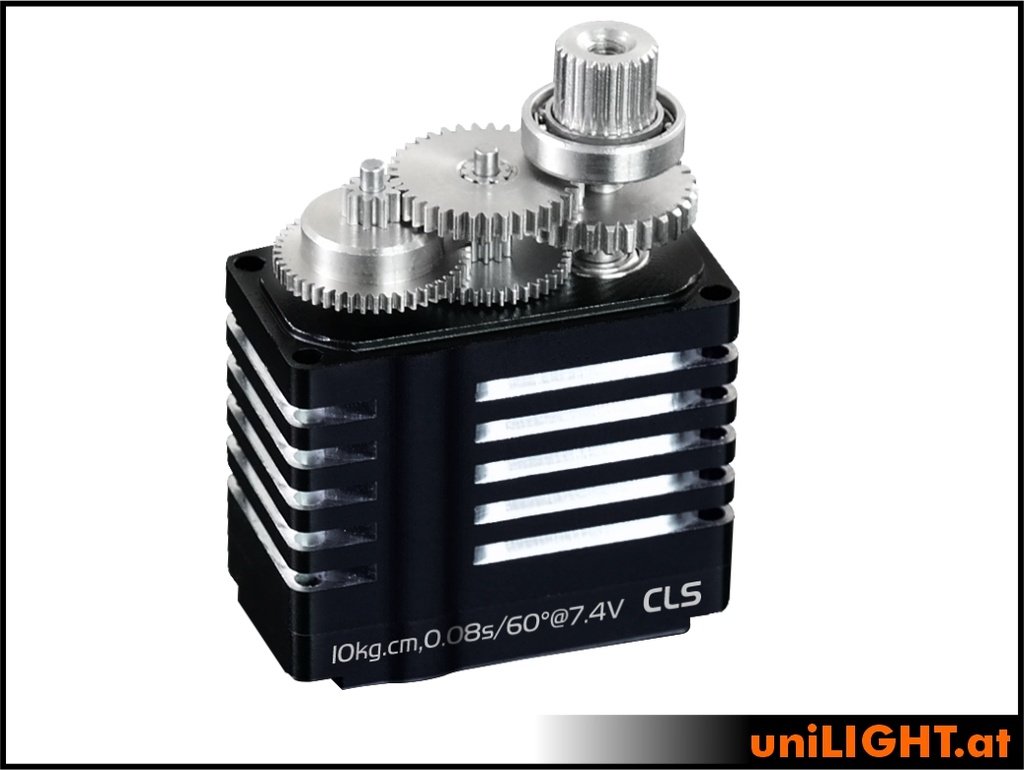

The aluminum housing offers durability and heat dissipation, while the metal gears ensure smooth and precise operation, even under high stress. This servo is perfect for high-performance models where precision and reliability are essential. Whether for planes, helicopters, or other advanced RC setups, the S09M is designed to handle the toughest tasks with ease and efficiency.
Operating Speed(5.0V):0.12sec/60degrees
Operating Speed(6.0V):0.10sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):10.00kg.cm(138.90oz/in)
Maximum working torque(7.4V):6.60kg.cm(91.67oz/in)
Rated working torque(5.0V):3.00kg.cm(41.67oz/in)
Rated working torque(6.0V):3.30kg.cm(45.83oz/in)
Rated working torque(7.4V):4.20kg.cm(58.33oz/in)
Rated working torque(8.4V):4.80kg.cm(66.67oz/in)
Dimensions:23*12*26.5mm/0.89X0.46X1.03in
Weight:20g(0.71oz)
Connector Wire Length:JR185mm(7.21in)
| Stall Torque (8.4V): 11kg.cm |
| Stall Torque (7.4V): 10kg.cm |
| Stall Torque (6V): 8.50kg.cm |
| Blokiermoment(5V): 7kg.cm |
| Speed (8.4V): 0.07s/60° |
| Speed (7.4V): 0.08/60° |
| Speed (6V): 0.10/60° |
| Geschwindigkeit(5V): 0.12s/60° |
| Family: 12mm Mini |
| Weight: 20g |
| Gear: Metall |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: No |
| Axis: 4.90/25T |
| Width: 12mm |
| Length: 23mm |
| Height: 26.5mm |
Internal Reference:
S10M
