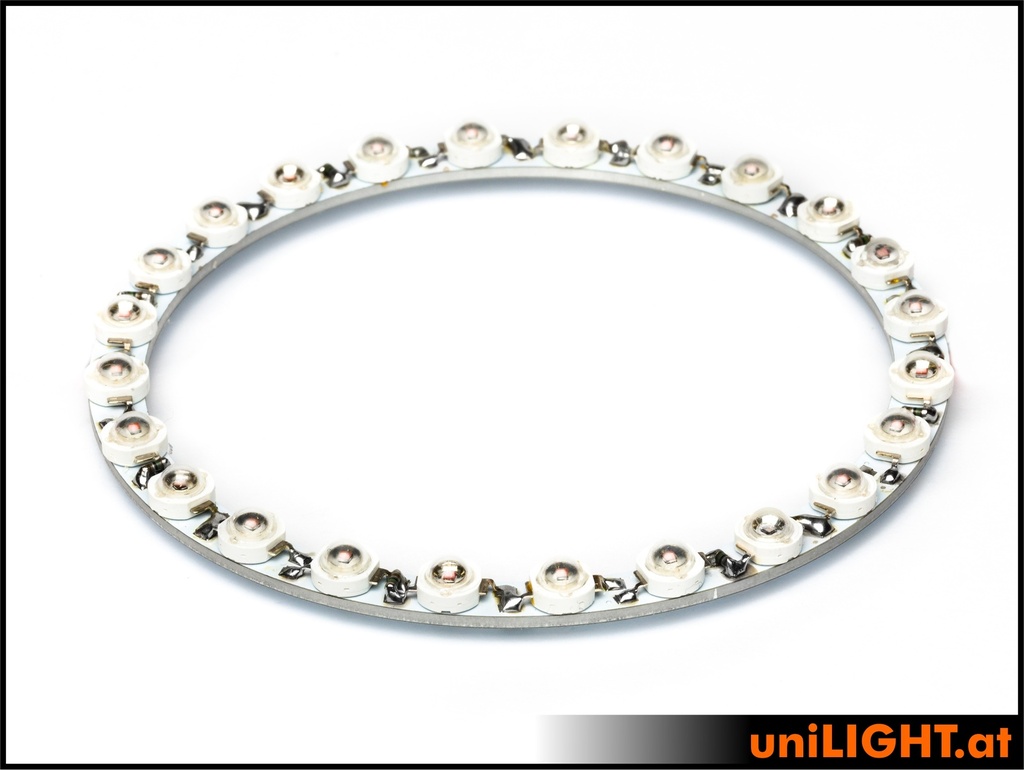

92mm Afterburner ring, SHORT, 24x40-70lm
RINGX-92-OR
Ultra power afterburner ring in a compact design
The short Ultra-Power afterburner rings are based on the same emitter technology and specially manufactured aluminum-core PCBs, but are designed without extensive cooling rods to save on size and weight. Their output is slightly reduced to enable normal operation in the model, achieved mainly by using thinner cables. Without additional air cooling, the rings can be operated continuously for approximately 1 minute, so the mixing with the gas channel should only occur in the upper section. Due to the need to avoid excessive ambient temperatures, these rings are particularly suitable for EDF systems, where their lightweight design is an additional advantage.
The light output of the emitter rings is extraordinarily high and visible in a range of over 120° in all directions. Therefore it illuminates both onto the outlet and into the nozzle, significantly amplifying the effect of a glowing thrust tube.
The ring is pre-configured for operation on 2S (8V) LiPo. Please ensure sufficient airflow during operation. The high power requirements of the afterburner rings requires properly sized batteries and an efficient control system.
Each afterburner ring includes a compatible second-generation nozzle attachment. This cover provides a completely different light effect, especially recommended when the ring can be fully visible during operation.
Performance: 24 emitters with 40-70 lumens each
Voltage: 2S/8V
Electricity: ~3A
Beam angle: ~100°
Internal Dimension: 92.4mm
External Dimension: 106.2mm
Weight: 17g (without cable)
This afterburner ring is perfectly suited for EDF systems, offering an impressive glow effect with minimal weight
Equipped with 2x1m silicone cables and pre-configured resistor for 2S.
Includes a Light-Spreader nozzle
| Colour: Orange |
| Operating Voltage: 2S/8V |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimensions: 92mm |
| Function: Afterburner |
Internal Reference:
RINGX-92-OR
The ring comes with two 1m/0.25mm silicone cable, which can be connected in parallel to the controller. In 2-channel controllers, a boost effect can be created, allowing the afterburner ring to operate at maximum power in the top operational mode through both cables.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
