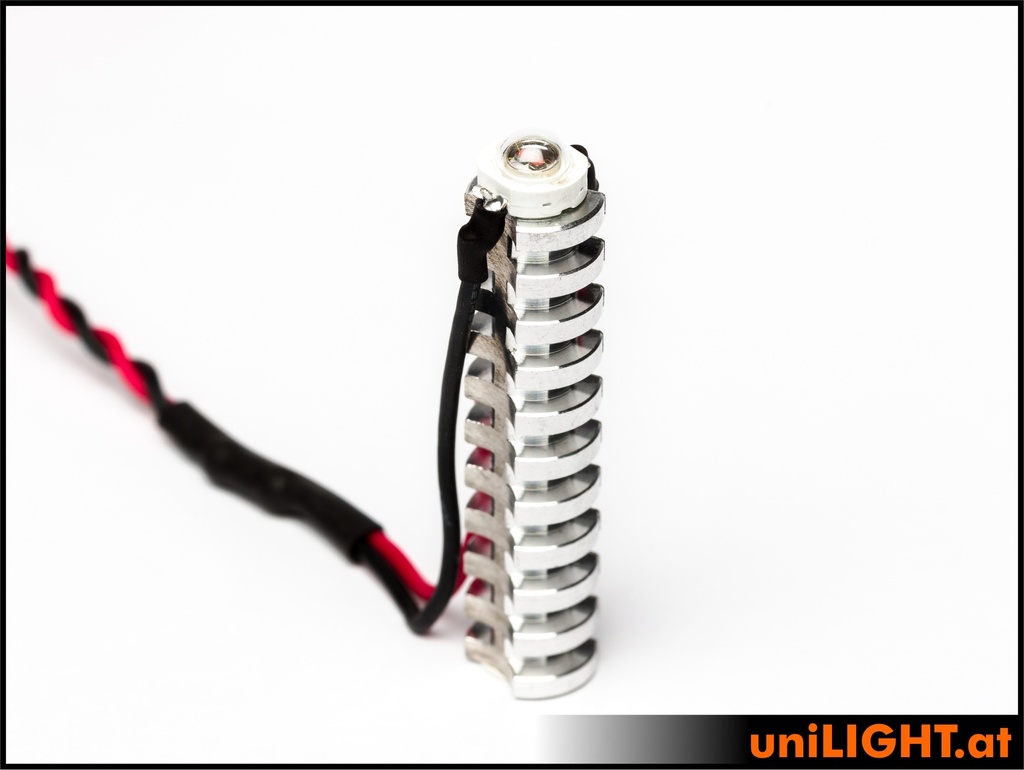

PURE Navigation light, 4Wx2

https://www.unilight.at/web/image/product.template/2128/image_1920?unique=0ff06f6

PURE-040x2

All-round light with significantly increased brightness as a position/navigation light, featuring an advanced heat sink for installation behind existing glass fittings, ideal for hobbyists and as DIY solutions. The heat sink is specially tapered to allow for a completely concealed installation.
The module comes pre-wired on an aluminum heat sink.

Technical Data:

Performance: 4Wx2 reference power
Voltage: 8V, 0.35A
Beam angle: ~160°
Light intensity: ~90 Lumen RED
Light intensity: ~140 Lumen GREEN
Light intensity: ~190 Lumen WHITE
Dimension: D10x42mm
Weight: 4g (without cable)

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S

18.25 € 18.25 EUR 18.25 €

18.25 €

Not Available For Sale

  • Colour
  • Operating Voltage
  • Cable Length
  • Design
  • Function

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: Round
Function: Navigation/Position Light

Short URL

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
