5mm HIGHEFF-LED Set
POINT-003-SET
High-performance 5mm-LED Set
These small LEDs have an enormous light output with a relatively wide beam angle, representing one of the highest technical performance available for these types of LEDs. The light barely heats up, requires only a few milliamperes of current, and is ideal for use in small models such as helicopters and Styrofoam models (up to approx. 1 meter) as well as for night flying.
Performance: 0.3W reference power
Voltage: 8V/12V, 5x0.03A
Beam angle: 18-25°
Light intensity: ~2-4 lumen
Dimentions: 5x10mm
Weight: 10g (without cable)
Ideal for use in small models such as helicopters and Styrofoam models (up to approx. 1 meter) as well as for night flying.

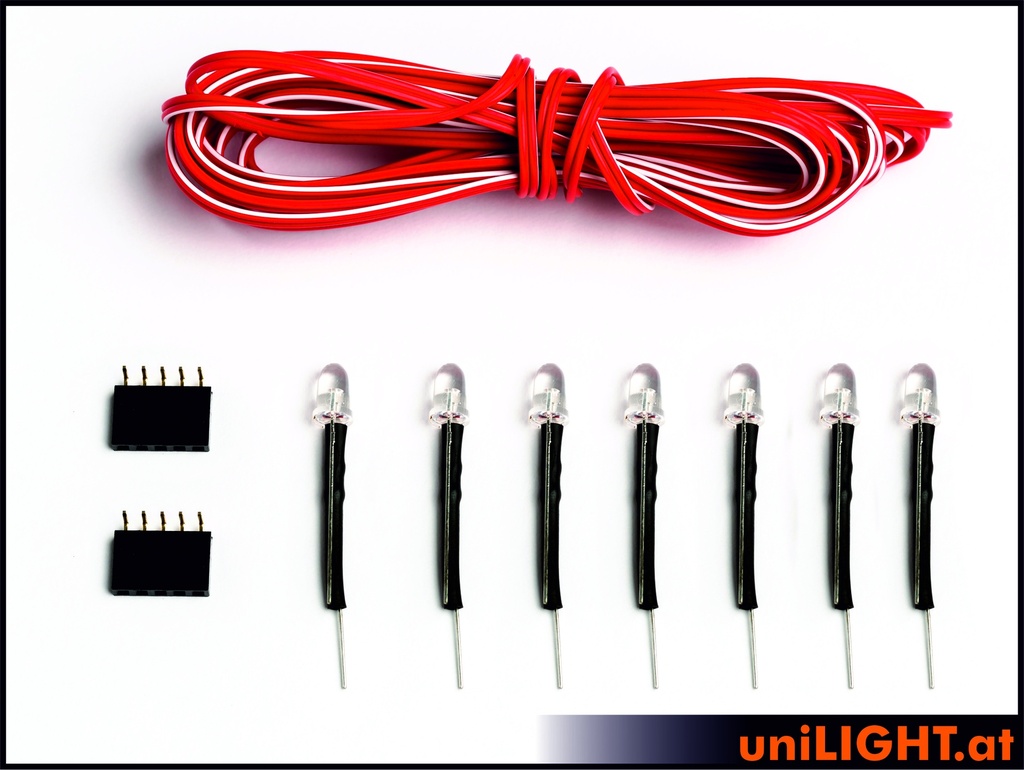

The set includes:
1x RED + 1x GREEN for Position light
1x RED for Beacon Light
2x WHITE for ACL strobe lights or landing lights
Pre-configured resistor for 8V/12V
3m connection cable
Insulation materials
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Dimensions: 5mm |
| Design: Round |
Internal Reference:
POINT-003-SET
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
