15mm VERTICAL Strobe light, 14x2W, SHORT
PIN15VX-140x2-GN-SALE
High-performance LED strobe light
High-performance LED strobe light with the previous generation chip for use as a strobe on various models. The special design of the LEDs allows for optimal side illumination in a very compact form.
Electricity: 14W reference power,
Voltage: 8(12)V, 1.2A
Beam angle: >160°
Dimension cooling tube: D 8mm, flange 10mm
Dimension light cap: round 15x11mm, cylindric 15x15mm
Total mass: D15mm, 35mm length
Weight: 8g (without cable)
Attention: in case of using the round cap you may need to file off the edges of the chip a bit.

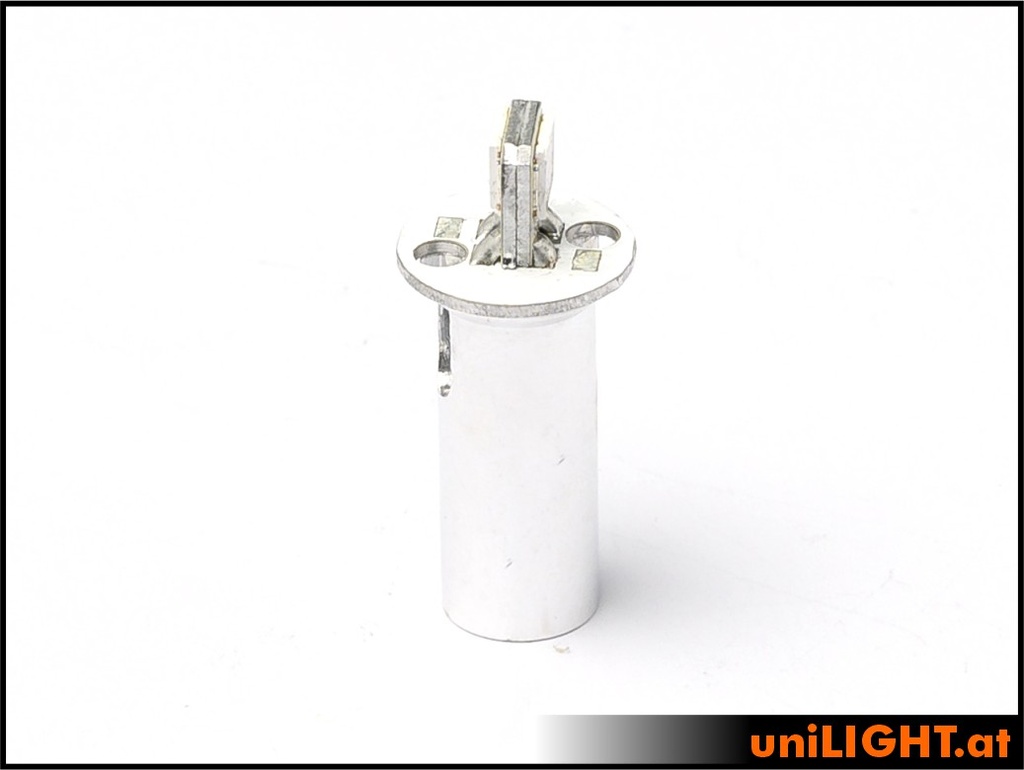

The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heatsink

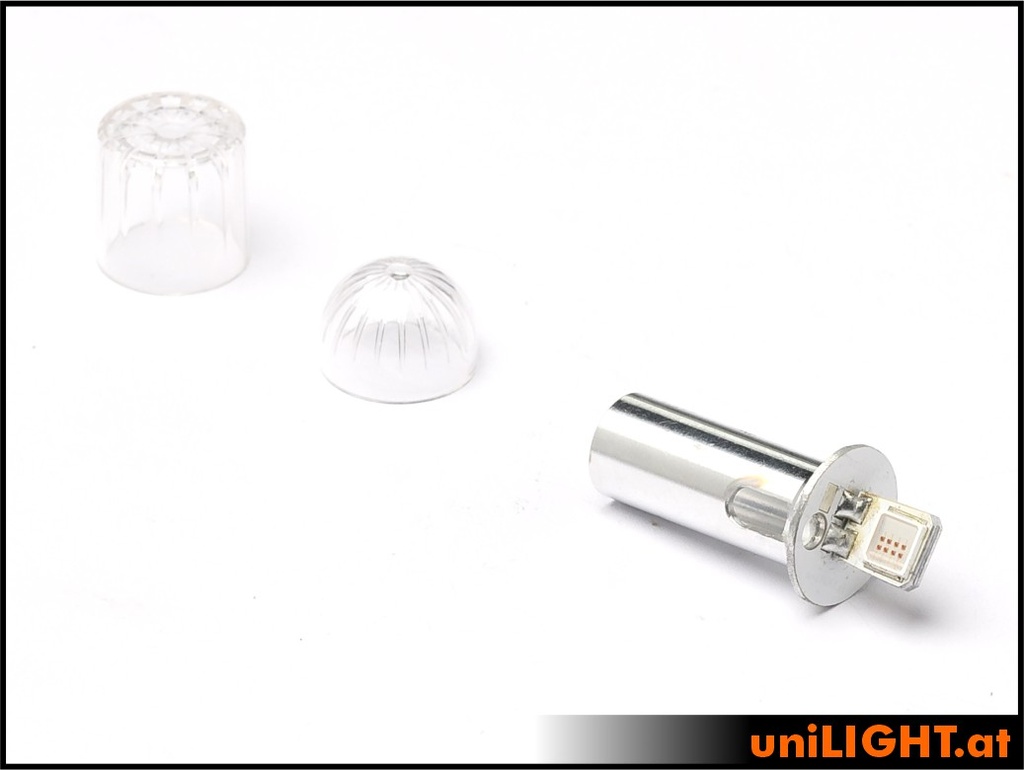

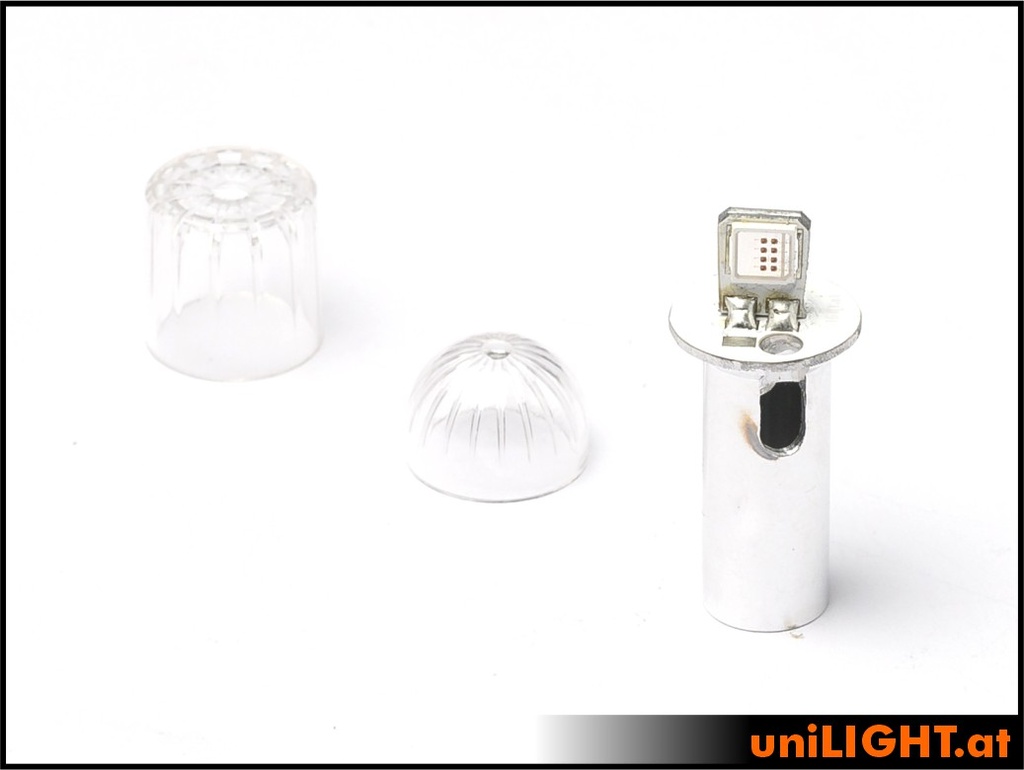

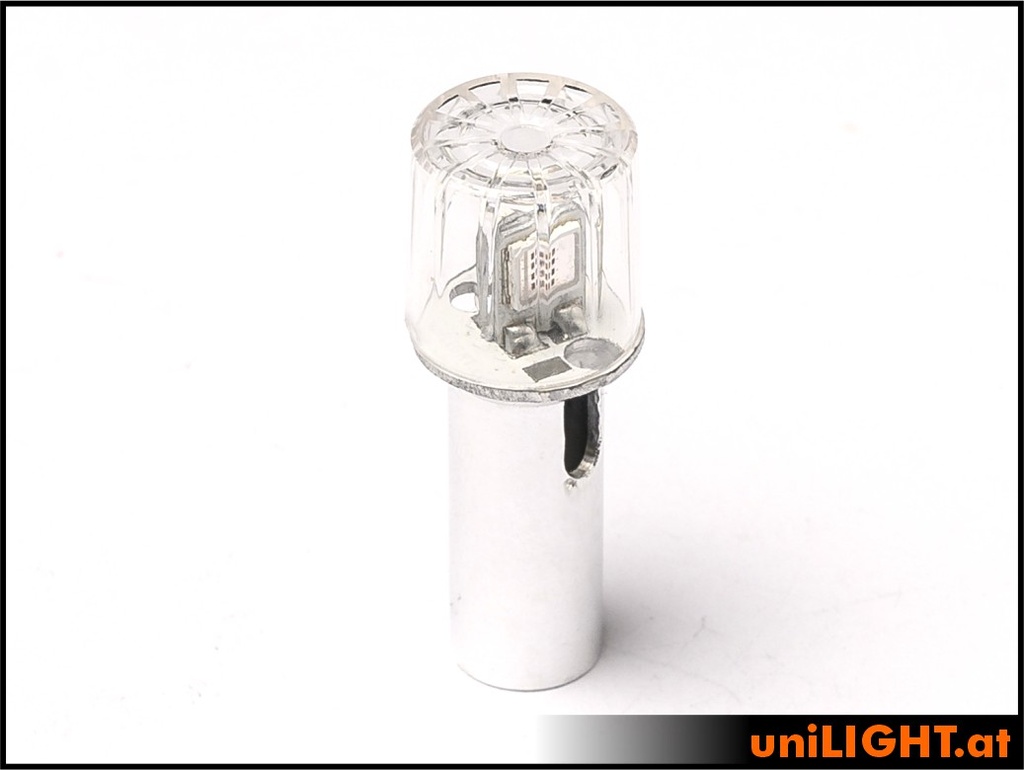

2 high-strength polycarbonate caps are included for versatile use.
1x 15mm cylinder cap
1x 15mm ball cap
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Colour: Green |
| Design: Round |
| Dimension: 15mm |
| Function: Strobe |
Internal Reference:
PIN15VX-140x2-GN-SALE
The caps must be glued separately and can also in some cases be painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, Canopy Glue,... When using the small round cap, the ALU PCB may need to be adjusted slightly at the edges.
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
