15mm VERTICAL Strobe light, 24Wx2, T-Fuse
PIN15VF-240x2-GN-SALE
LED high-performance strobe light with a thermal fuse
LED high-performance strobe light with the previous generation chip for operation on various models. The special design of the LEDs allows optimal illumination to the side in a very compact form.
The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down. Its thermal design is intended for use as a strobe or beacon, and using it as a position light would lead to early shutdown.
Electricity: 24W reference power,
Voltage: 8(12)V, 2A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Dimension cooling tube: D 15mm,48mm
Dimension light cap: round 15x10mm, cylindric 15x15mm
Total mass: D15mm, 59mm length
Weight: 10g (without cable)
Attention: in case of using the round cap you may need to file off the edges of the chip a bit.

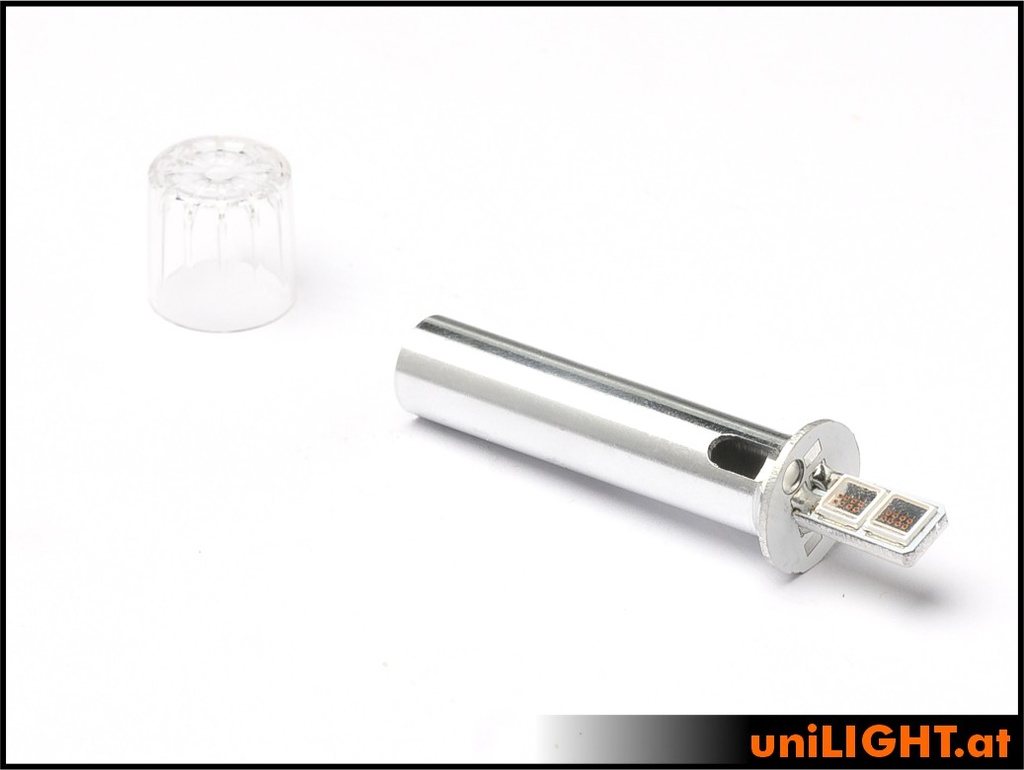

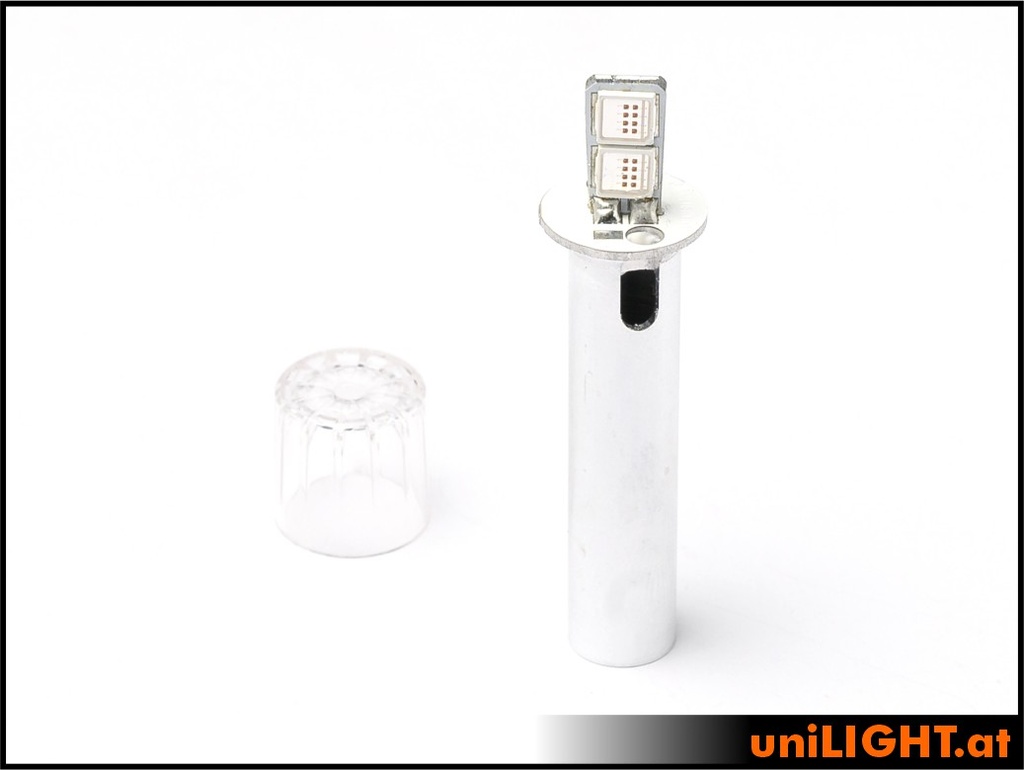

The light is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heatsink.
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.

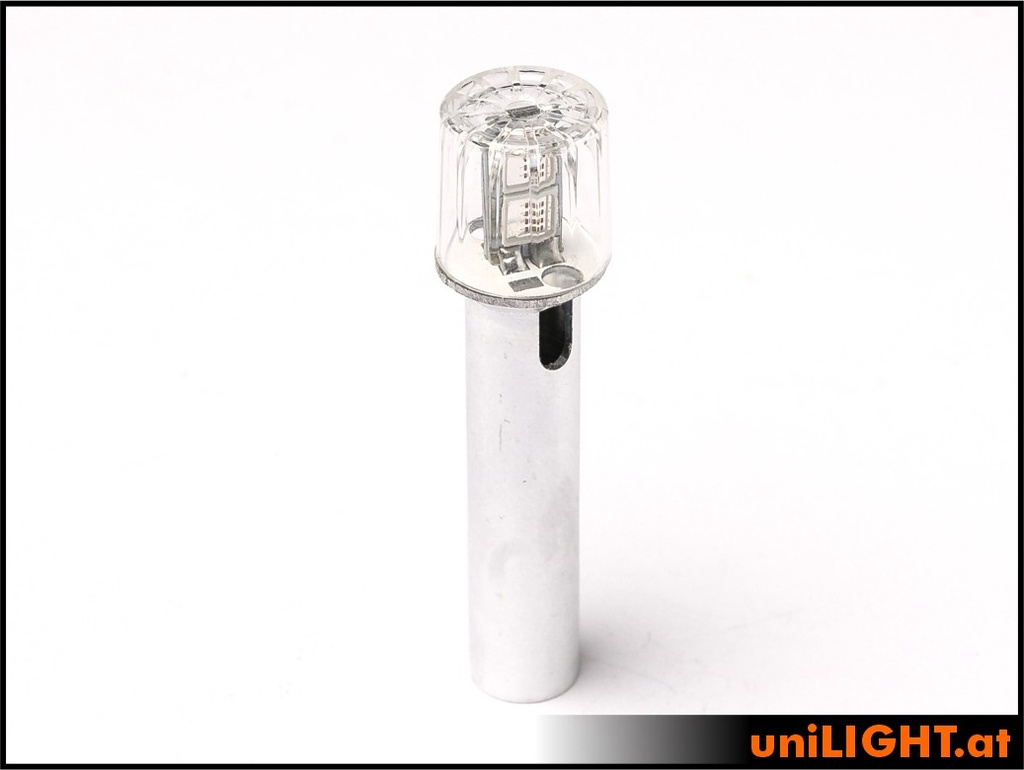

2 caps (cylindrical and round) are included.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Colour: Green |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 15mm |
| Function: Strobe |
Internal Reference:
PIN15VF-240x2-GN-SALE
The caps must be glued separately and some of them can also be painted in the model color. Any adhesive that does not evaporate is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, canopy glue,...
This light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling. The thermal design is intended for strobe or beacon operation and would lead to early shutdown if used as a position light. When used continuously or with an increased duty cycle, damages may occur if the safety mechanism does not trigger quickly enough.
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Attention: The LED lights are extremely bright! Never look directly into an LED!
