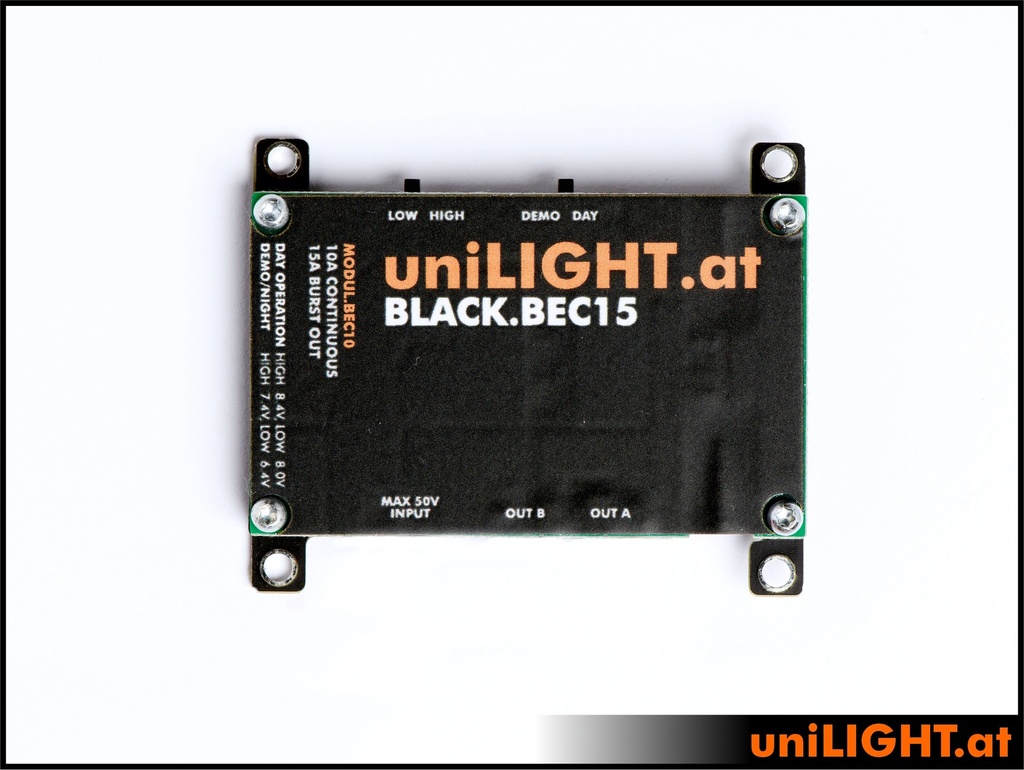

uniLIGHT BEC module, 15A

Our BEC Module (Battery Elimination Circuit) has been specifically designed for use with uniLIGHT.at lighting systems, providing high performance in a compact form.

The module allows you to directly generate a constant 8V output (equivalent to a 2S LiPo battery) from a drive battery (up to 50V). Simply connect the power supply to the module, and the lighting system can be powered directly from the output. Due to the galvanic isolation of the uniLIGHT controllers, there is no risk of interference in the receiver range. It can support powerful lighting systems, handling up to 10A continuous current and 15A peak current.

In addition, this BEC Module offers further adjustment options via small switches on the side.

SWITCH A DAY/DEMO
This switch toggles between Day operation (8V) and a significantly reduced Night/Demo mode (6.4V). Please note that the demo mode reduces the brightness, limiting continuous operation. Always monitor the operating temperature:

SWITCH B HIGH/LOW
This switch adjusts the power output within each mode, toggling between full power (8.4V/7.4V) and a slightly reduced voltage (8.0V/6.4V).
Please be aware that in DAY + HIGH mode, the lights are powered at maximum voltage, offering optimal brightness but may also heat up accordingly.
