uniLIGHT 1-channel, BLACK.1

MODUL-B1

Single-Channel System of the BLACK-Series

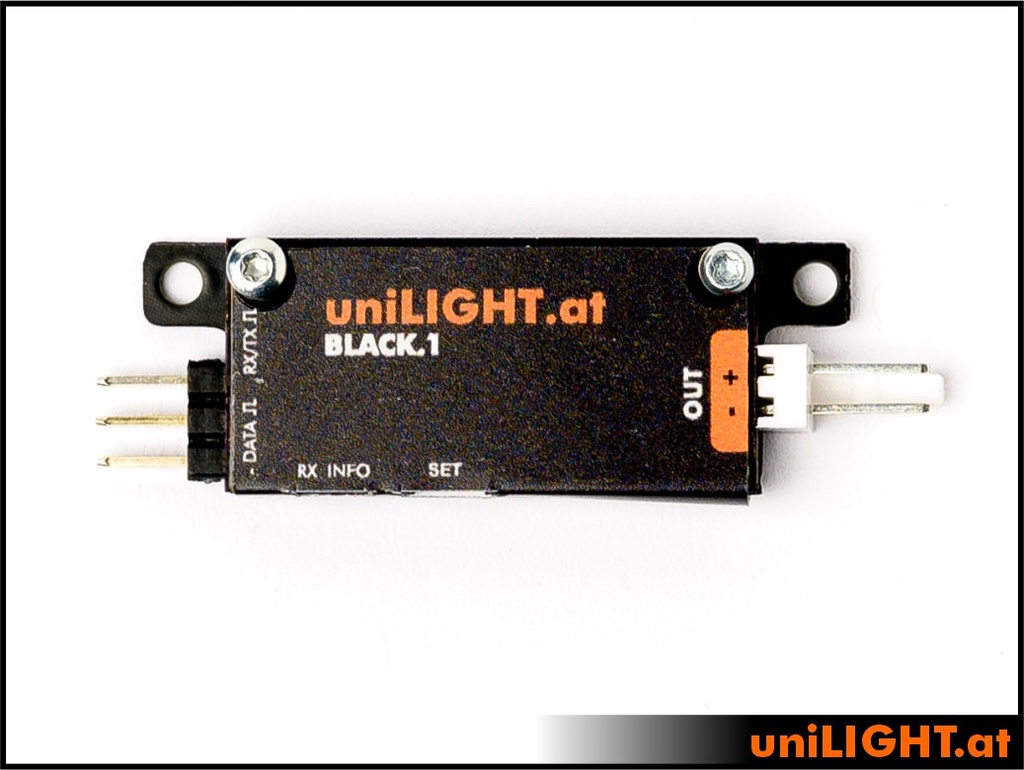

The solution for the simplest applications where space and minimal weight are critical. The BLACK.1 controller is perfect for functional position, flashing, strobe/ACL lights, or spotlights in basic models. Generally, it operates without a remote control channel, although this is optionally supported. The BLACK.1 controller connects directly to a 2S/3S battery. In programming mode, a custom light pattern can be selected, which will then run by default. If connected to a receiver, the light pattern can also be picked via the transmitter.

BLACK-Series Enhancements:

Dynamic: Improved, faster, and more sharply defined lighting effects
Dimensions: Reduced size and weight, optimized for dual-channel applications
Safety: Basic short-circuit protection on outputs with automatic shutdown and reactivation
Battery: Integrated deep discharge protection for connected LiPo batteries

Control side: receiver 4.8-9.6V
Weight: approx. 3g without cable
Dimensions: 45x16x5mm
Current: 6A, impulse <10A
Operation also possible via RC signal

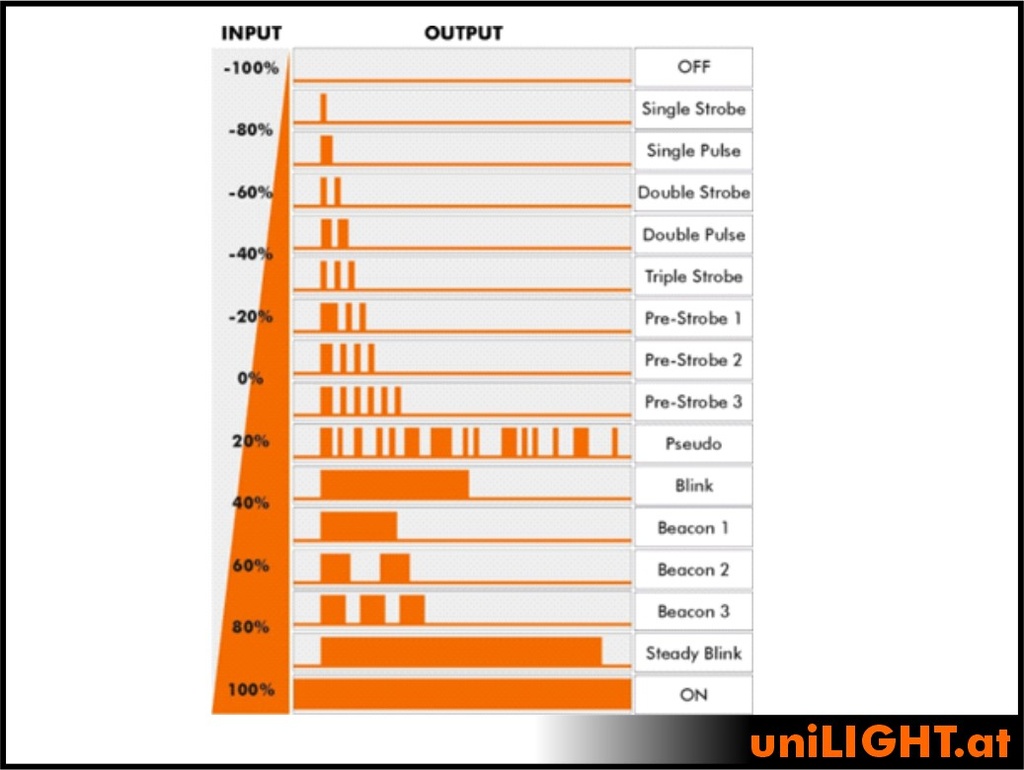

14+2 effects with variable speed
Short-circuit protection
Deep discharge protection

Purpose of Use:

Simple implementation of position strobes for gliders and sport models, position lighting for multicopters, or spotlights for orientation in jets. The B.1 controller can also be used as an extension channel for other uniLIGHT control systems.

Delivery Content:

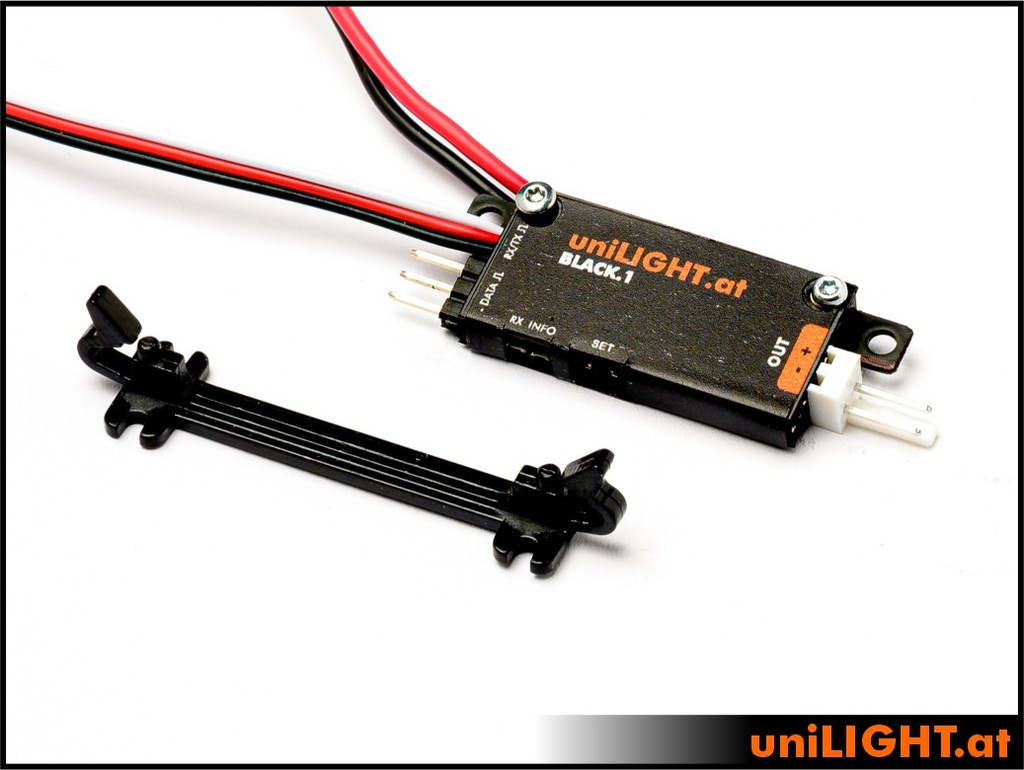

Includes mounting clips, receiver connection cable and a manual
