uniLIGHT Afterburner AB.2+
MODUL-AB2PLUS

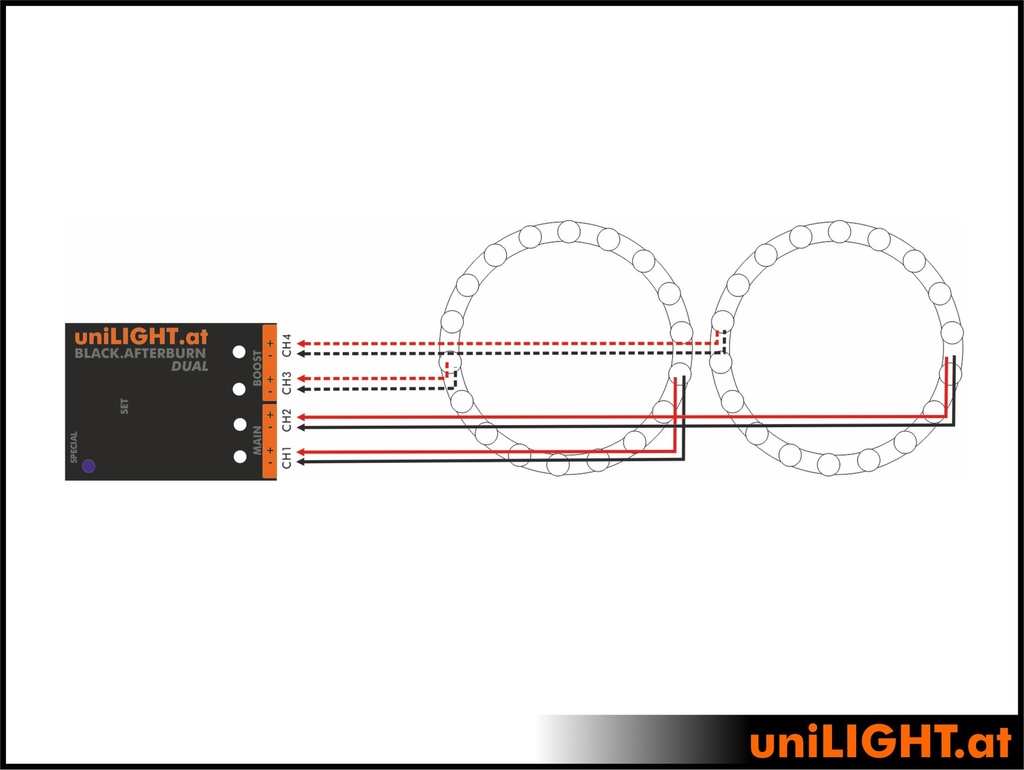

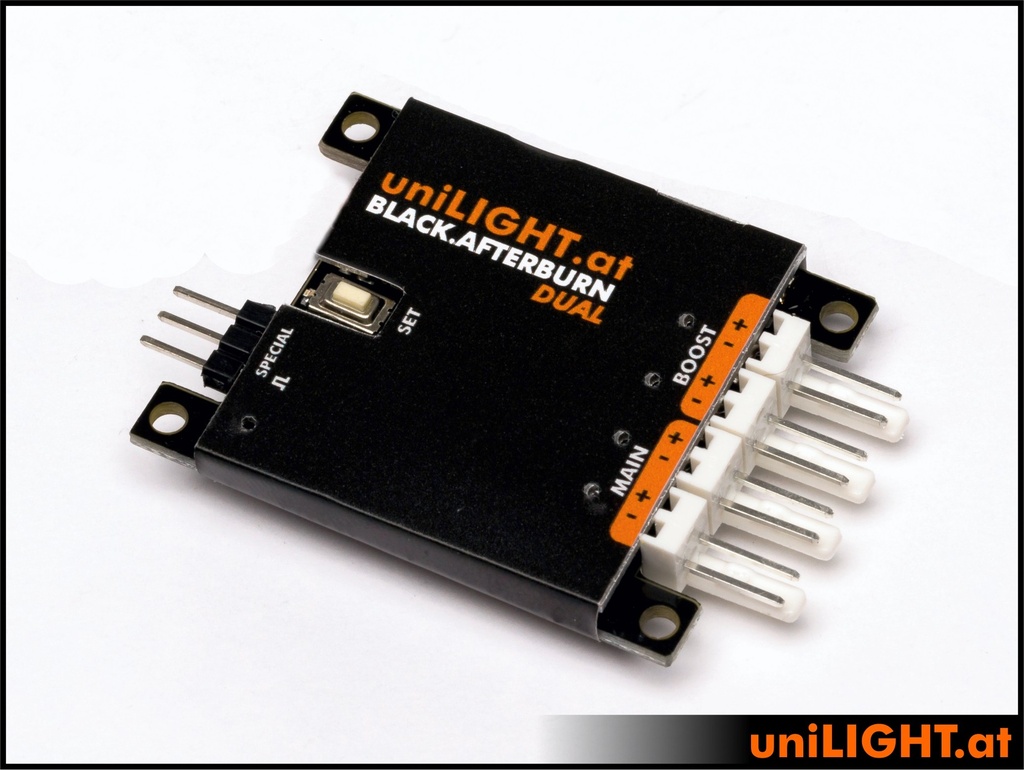

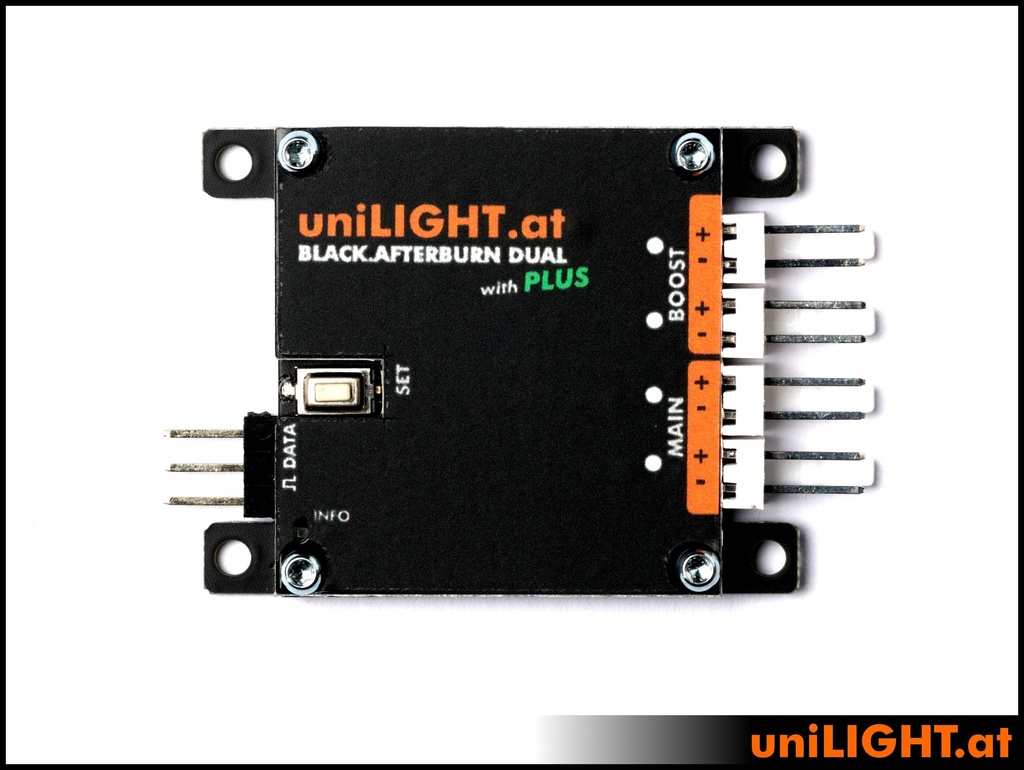

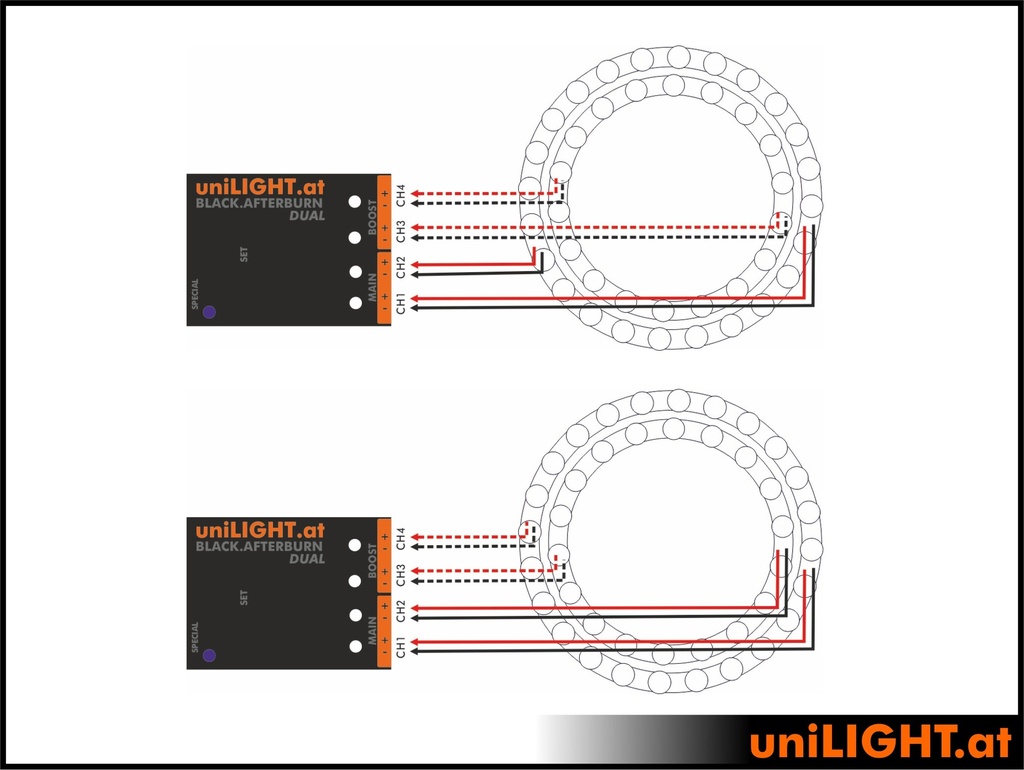

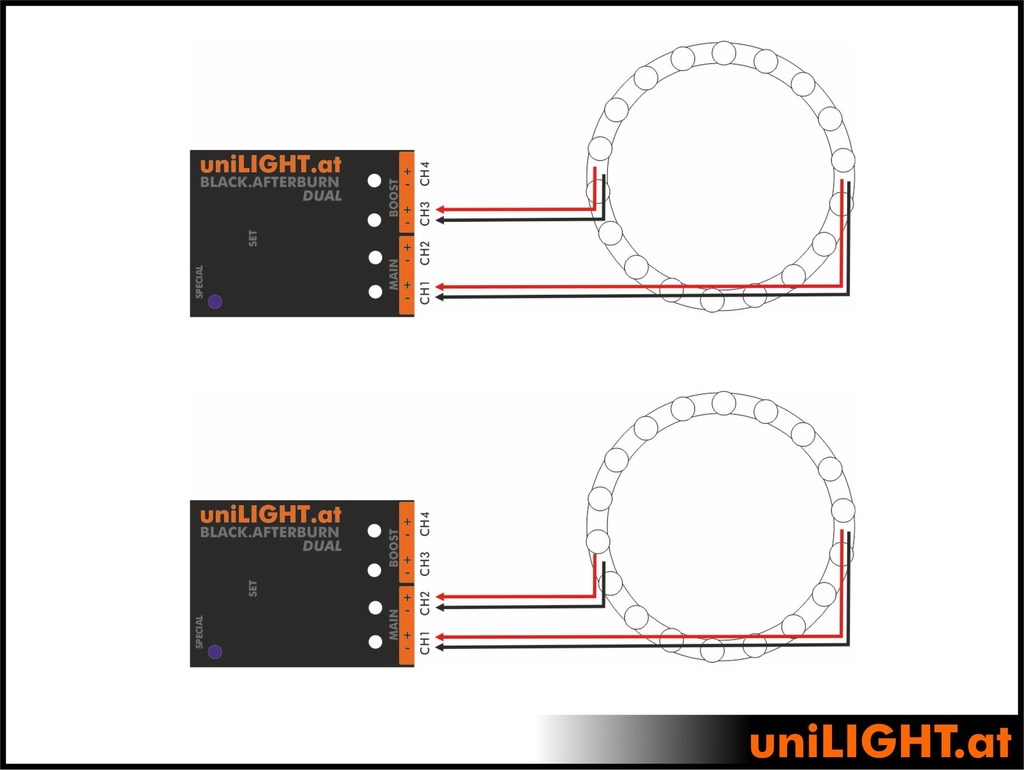

The BLACK.AB2PLUS afterburner controller supports up to two extremely powerful afterburner rings, suitable for twin-engine aircraft or as a dual ring for maximum light output. In addition to the typical "flicker" effect, the controller now also features smooth glow functions. Like all uniLIGHT controllers, it is operated via the servo channel or parts of it. Now, a switch-point operation is also possible, allowing the connection to be parallel to the gas-channel.
With the PLUS function, you can now conveniently select all settings and configurations via our software (available on our website in the DOWNLOAD section).
All you need is our MODUL-PLUS (programming cable), and you're ready to go.

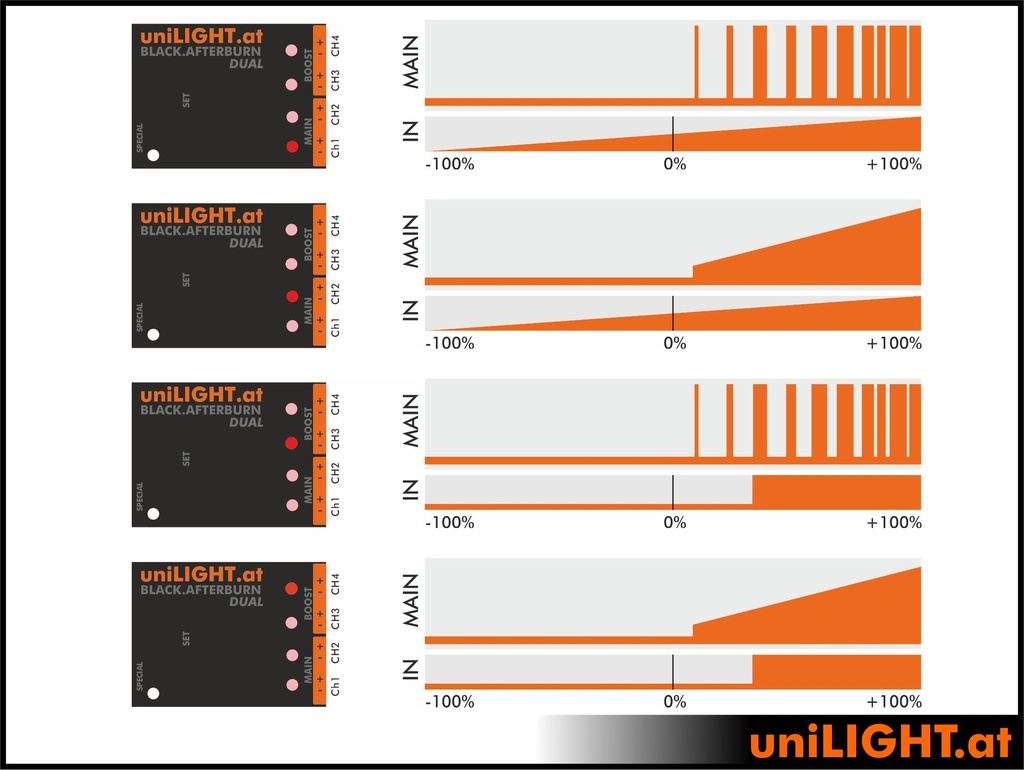

Operating Modes
- Random flicker effect or smooth glow effect
- Directly dependent on the servo input or in parallel operation with a switch-point

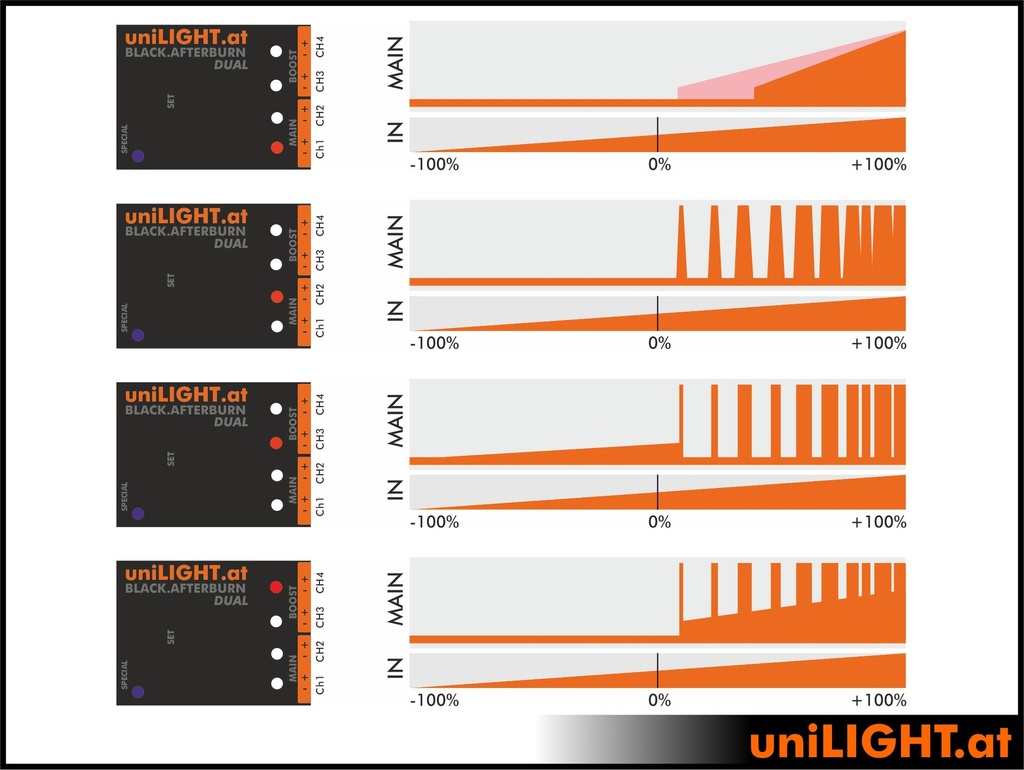

Options
- Fast or delayed response to signal input
- Damped motion effect with soft flickering
- Pre-glow function below the main function
- Base level underlaid with the flicker signal
Control side: receiver 3.6-9.6V
Weight: 9g
Dimensions: 50x35x6mm
Load/each channel: 8A, up to 16V
Total load: 12A
Galvanically isolated system
Deep discharge protection
Servo output

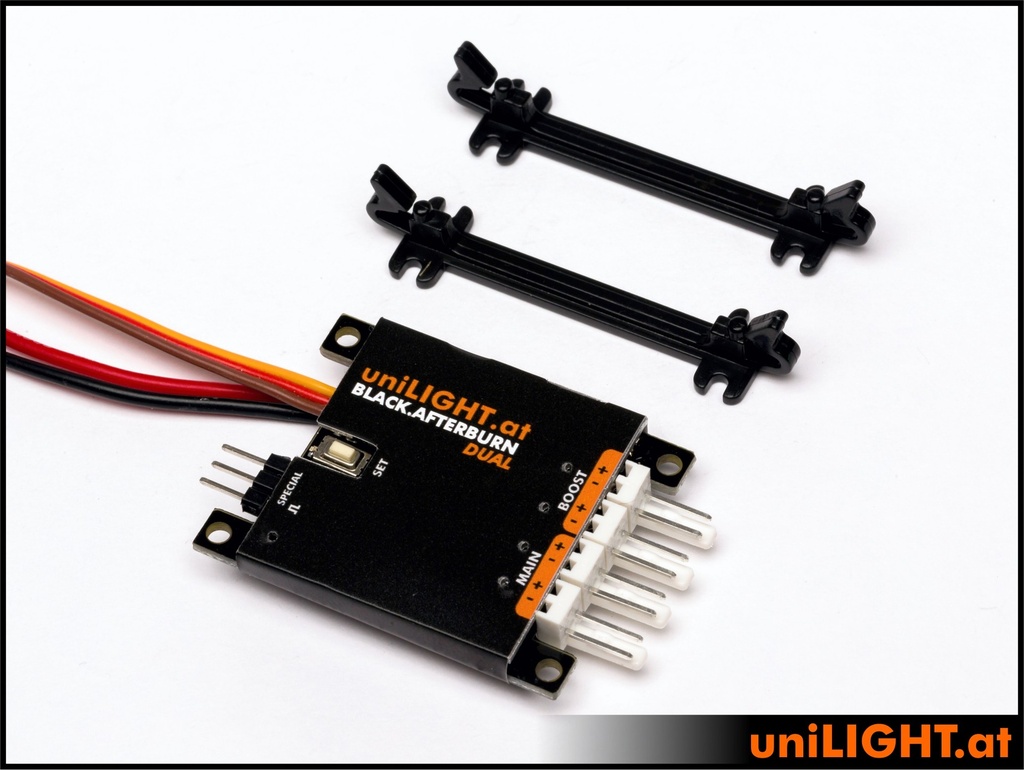

Includes mounting brackets and a manual
| Functions: 2x2CH |
| Programmable: PLUS |
| galvanically isolated: Yes |
| Master/Slave Shutdown: Yes |
Internal Reference:
MODUL-AB2PLUS
