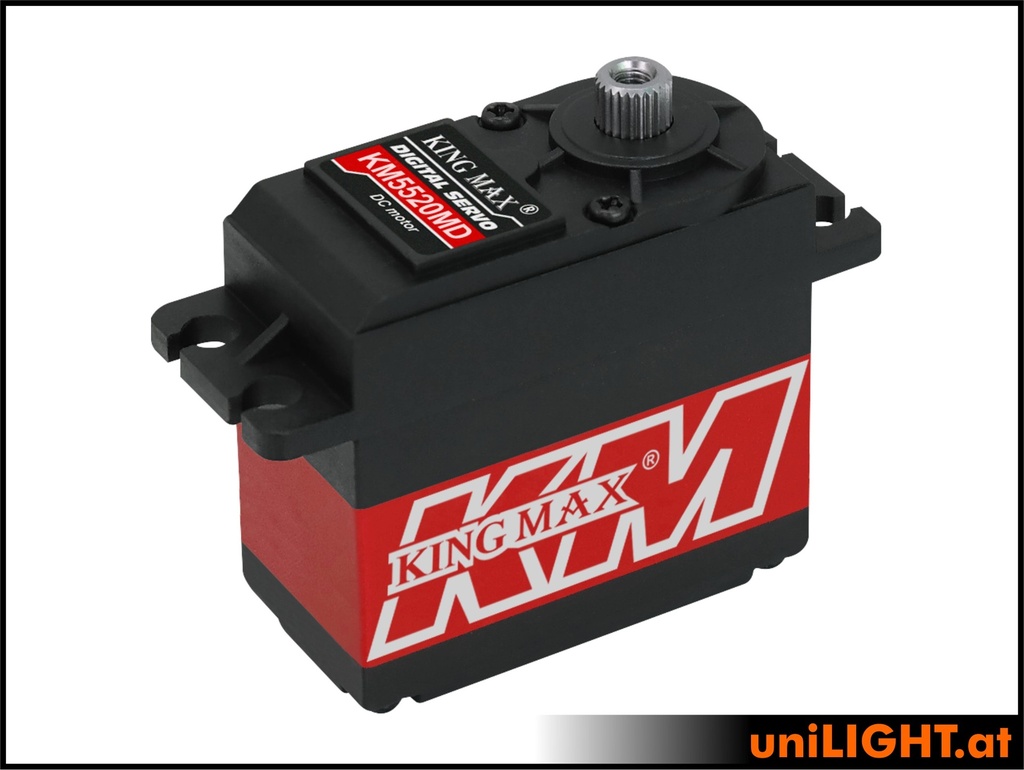

20mm Standard Servo KM5520MD, MG
KM5520MD
The KM5520MD is an affordable 20mm standard servo with a partial metal housing and metal gears, offering great performance for various applications. The dual ball bearing system enhances stability, making it a solid choice for hobbyists seeking reliable performance at an affordable price.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.19sec/60 degrees
Operating Speed (6.0V): 0.16 sec/60 degrees
Stall Torque (4.8V): 17.86 kg.cm
Stall Torque (6.0V): 20.25 kg.cm
Dimensions:40.5x20.2x40.5mm
Weight: 60g
Bearings: 2BB
Connector Wire Length: JR 265 mm
Spline: 25T (Futaba)
| Stall Torque (6V): 20.2kg.cm |
| Blokiermoment(5V): 17.8kg.cm |
| Speed (6V): 0.16sec/60° |
| Geschwindigkeit(5V): 0.19s/60° |
| Family: 20mm Economy |
| Weight: 60g |
| Gear: Metall |
| Body: Teil-Aluminium |
| Ball Bearings: 2BB |
| Motor: DC |
| Softstart: No |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 20.5mm |
| Length: 40mm |
| Height: 41mm |
Internal Reference:
KM5520MD
