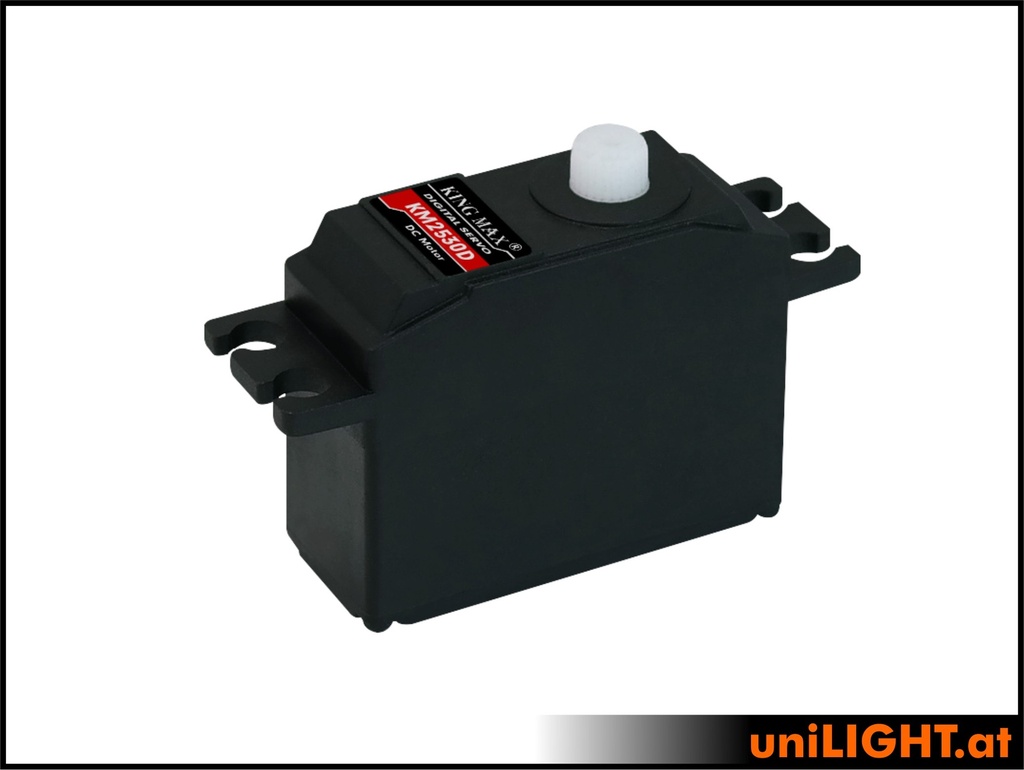

15mm Mini-Servo KM2530D
KM2530D
The KM2530D 15mm Mini Servo is an affordable servo in the 15mm class, featuring plastic gears for basic performance. A budget-friendly option for those seeking a simple, reliable servo for lightweight applications.
Dead band: 4μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60 degrees
Operating Speed (6V): 0.10 sec/60 degrees
Stall Torque (4.8V): 2.85kg.cm
Stall Torque (6.0V): 3.35 kg.cm
Dimentions: 36x15x32.4 mm
Gewicht: 25.32 g
Bearing: 2BB
Connector Wire Length: JR 180 mm
Spline: 25T (Futaba)
| Stall Torque (6V): 3.56kg.cm |
| Speed (6V): 0.09sec/60° |
| Family: 15mm Mini |
| Weight: 25.3g |
| Gear: Plastic |
| Body: Plastic |
| Ball Bearings: 1BB |
| Motor: DC |
| Softstart: No |
| Programmable: No |
| Axis: 25T/Mini |
| Width: 15mm |
| Length: 32.4mm |
| Height: 36mm |
Internal Reference:
KM2530D
