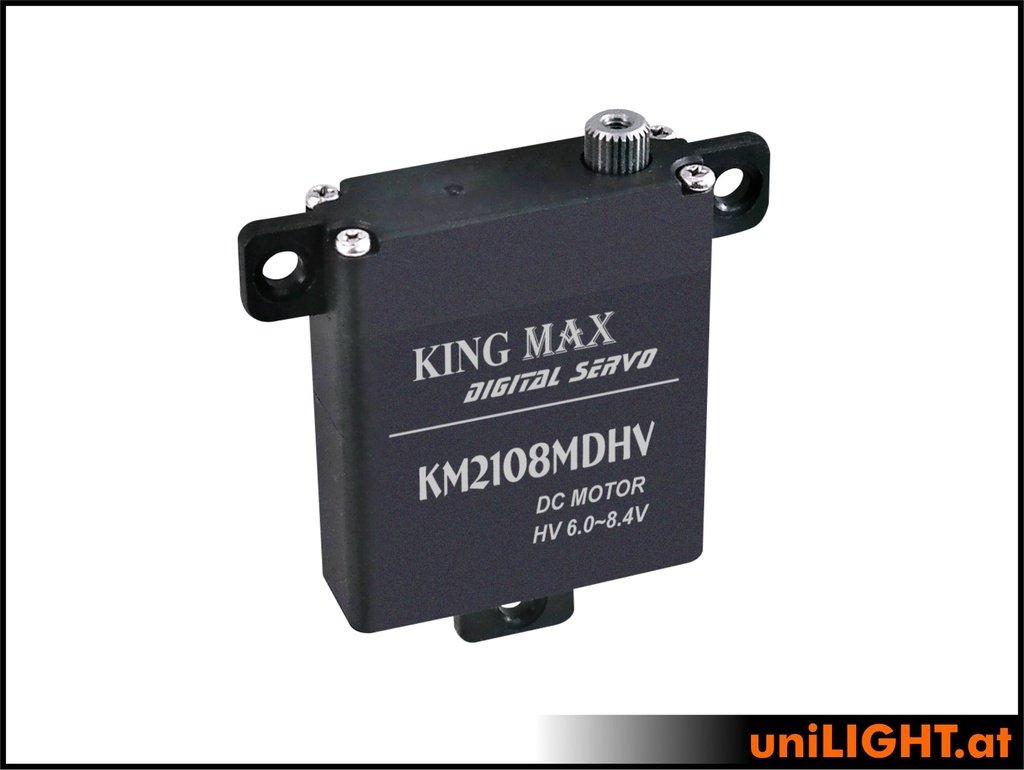

10mm Wing Servo KM2108MDHV, HV, MG
KM2108MDHV
An affordable wing servo of the 10mm class
The Kingmax KM2108MDHV 10mm Wing Servo is an affordable and efficient solution for low-profile RC setups. Designed with high-voltage (HV) capability, it operates reliably at voltages up to 7.4V, ensuring consistent performance for various applications.
The hard-anodized aluminum gears provide durability and smooth operation, making this servo an ideal choice for lightweight models like wooden or foam gliders, as well as RES. Its 10mm profile allows for flat mounting in space-limited configurations. The KM2108MDHV delivers reliable power and precision, all while keeping your build lightweight and efficient.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~7.4 V
Operating Speed (6V): 0.14sec/60°
Operating Speed (7.4V): 0.12 sec/60°
Stall Torque (6V): 6.8 kg.cm
Stall Torque (7.4V): 7.9 kg.cm
Potentiometer Drive: Direct Drive
Dimentions: 30.0X10.0X35.5mm
Weight: 21g
Bearing: 2BB
Connector Wire Length: JR/Futaba 220 mm
Spline: Exklusiv
| Stall Torque (7.4V): 7.90kg.cm |
| Stall Torque (6V): 6.80kg.cm |
| Speed (7.4V): 0.12sec/60° |
| Speed (6V): 0.14s/60° |
| Family: 10mm Wing |
| Weight: 21g |
| Gear: Metall |
| Body: Plastic |
| Ball Bearings: 2BB |
| Motor: DC |
| Softstart: No |
| Programmable: No |
| Axis: Exclusive |
| Width: 10mm |
| Length: 30mm |
| Height: 35.5mm |
Internal Reference:
KM2108MDHV
