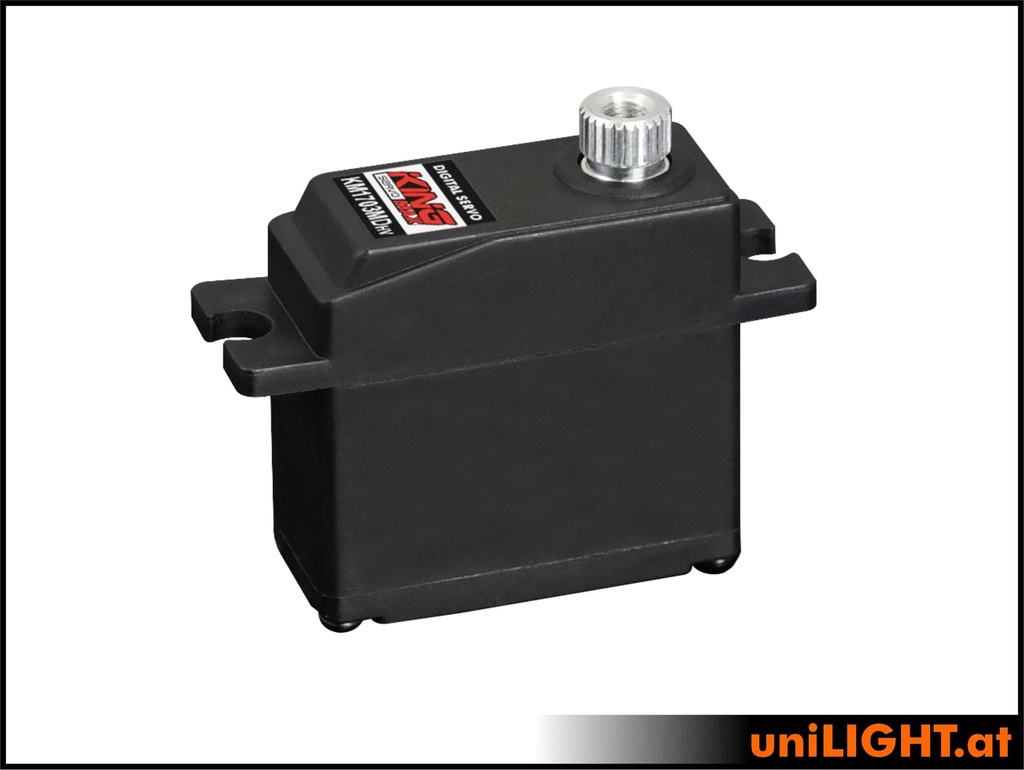

13mm Mini Servo KM1703MDHV, HV, MG
KM1703MDHV
Affordable yet powerful 13mm class Mini-servo with metal gears
High-voltage capable up to 8.4V
The Kingmax KM1703MDHV Mini Digital Servo is a reliable choice for compact RC applications.
With programmable high-performance metal gears, it ensures durability and precise operation. Its high-quality coreless motor and dual ball bearings provide consistent performance and stability. The full CNC aluminum case and structure enhance durability and heat dissipation, making it suitable for demanding setups. The 13mm servo fits well into space-limited configurations while delivering dependable results.
Operating Speed (5.0V): 0.24sec/60 degrees
Operating Speed (6.0V): 0.19sec/60 degrees
Operating Speed (7.4V): 0.15sec/60 degrees
Operating Speed (8.4V): 0.13sec/60 degrees
Stall Torque (5.0V): 3.90kg.cm (54.17oz/in)
Stall Torque (6.0V): 4.80kg.cm (66.67oz/in)
Stall Torque (7.4V): 5.80kg.cm (80.56oz/in)
Stall Torque (8.4V): 6.80kg.cm (94.45oz/in)
Dimensions: 28.1*12.9*27mm/1.09*0.50*1.05in
Weight: 20g(0.70oz)
| Stall Torque (8.4V): 6.8kg.cm |
| Stall Torque (7.4V): 5.80kg.cm |
| Stall Torque (6V): 4.8kg.cm |
| Blokiermoment(5V): 3.9kg.cm |
| Speed (8.4V): 0.13sec/60° |
| Speed (7.4V): 0.15s/60° |
| Speed (6V): 0.19s/60° |
| Geschwindigkeit(5V): 0.24s/60° |
| Family: 13mm Mini |
| Weight: 20g |
| Gear: Metall |
| Body: Plastic |
| Ball Bearings: 2BB |
| Motor: DC |
| Softstart: No |
| Programmable: Yes, 180° possible |
| Axis: 5.90/25T/Futaba |
| Width: 12.8mm |
| Length: 28mm |
| Height: 27mm |
Internal Reference:
KM1703MDHV
