Disconnector KS, 2 channel
KILLSWITCH-2-DIY
The uniLIGHT switch is a simple system for safely and completely disconnecting the battery or power supply from the electronics, preventing unwanted residual currents and battery discharge. It is ideal for use with lights, BEC, and ignition systems, and also well-suited for fully isolating system batteries from the rest of the electronic circuit downstream. Additionally, it offers further features:
- Current capacity: 10A continuous, 20A peak
- Multiple options for directly soldering cables or connectors
- Signal LED for power-on indication, can be deactivated
- Support capacitors for improved voltage stability, can be deactivated
- Can be used as a simple diode bridge for dual power supply, 0.3V, can be activated
- High-current charging of the battery via the connector
- Multiple systems can be mounted on a common carrier plate
Operating Voltage Input: up to 16VDC
Constant Output Current: up to 10A
Peak Current: 20A
Double-channel unit

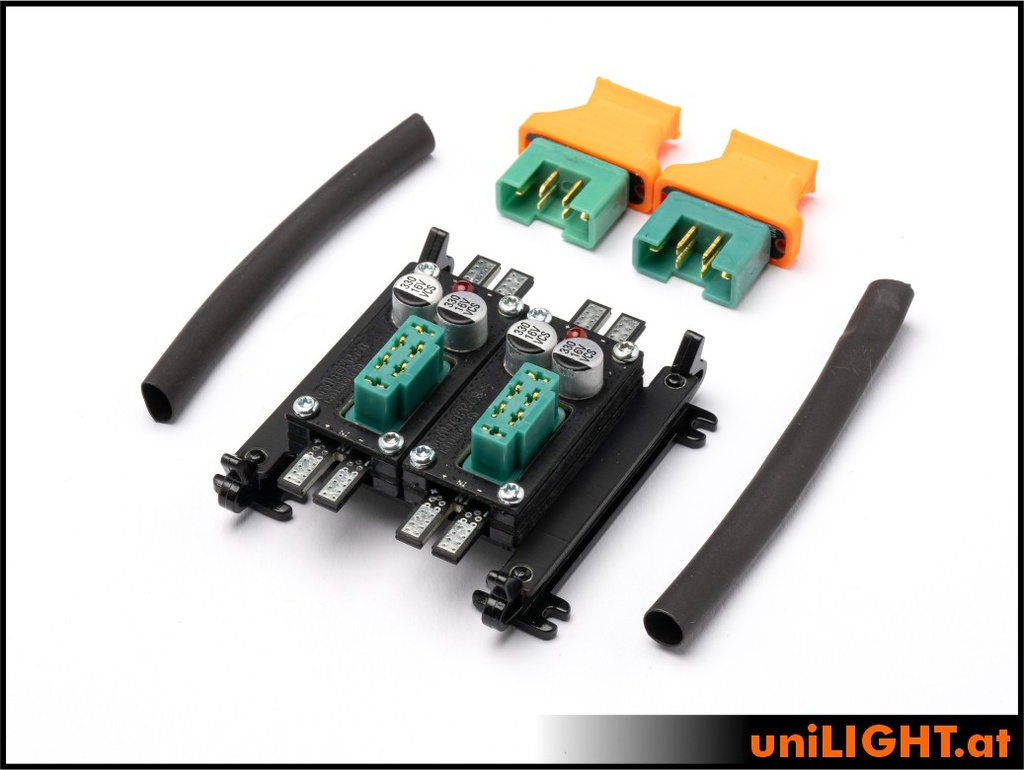

Included: Module, mounting clips, jumper, shrink tube
Disconnect switch, voltage buffer, power-on control, and diode switch
All parts for mounting the disconnector module, mounting clamps, plug-in bridge, and a shrink tubing are included
| Version: DIY (1pcs) |
| Functions: 2CH |
| Function: Power Supply |
Internal Reference:
KILLSWITCH-2-DIY
Can be screwed onto the base. For simple applications, the included mounting clips can be utilized.
