35mm Dropout Spotlight, 10Wx2, T-FUSE, HV
FLIP35HVF-100x2-WE

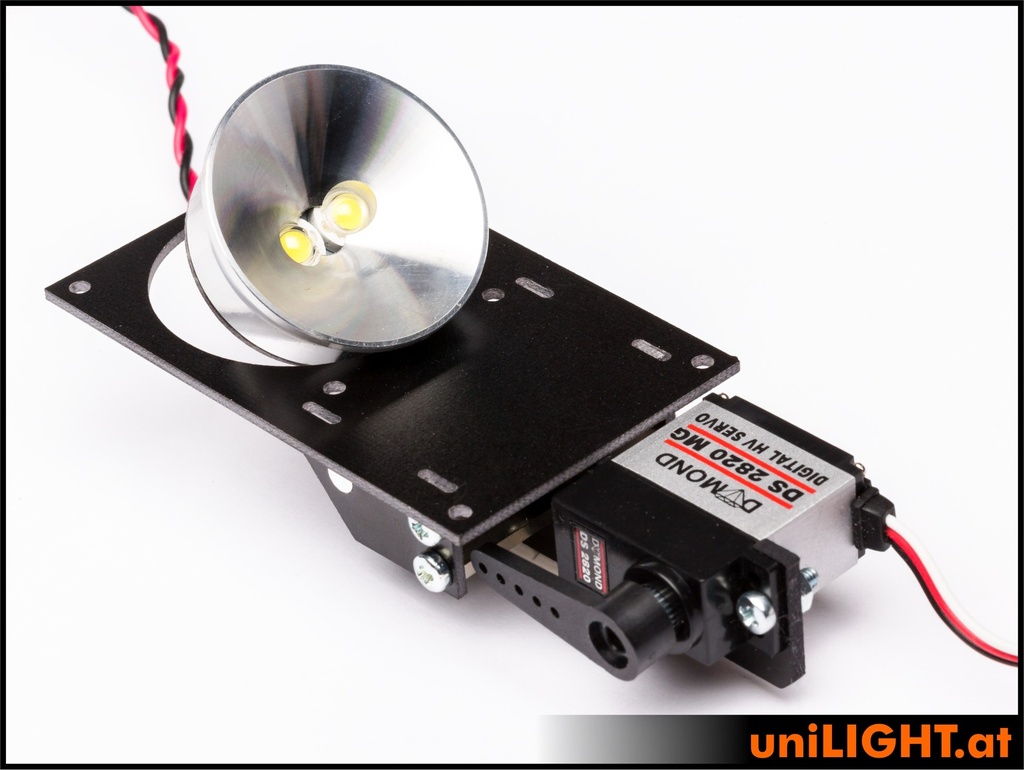

High Power 35mm Dropout Spotlight
High-performance drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use! Now with Kingmax KM1203 HV Servo, making it compatible with any system.
Our pre-assembled spotlights feature flat 35mm 10Wx2 lights with built-in thermal fuse, delivering impressive brightness in a compact form. The mechanism uses a Kingmax KM1203 HV servo; you only need to determine the mounting position and attach the pull rod. The design allows two different mounting positions of the pivot axis relative to the servo using the included parts: in front of the axis or, for fuselage installation, above the axis.
Power: 10Wx2 reference power
Voltage: 8V, use additional resistor for 12V!
Current: 0.7A
Beam angle: ~110°
Light intensity: 620 lumens WHITE
Light intensity: 600 lumens WARM WHITE
Weight: 55g (with servo)
Mounting BEHIND axle
Mounting OVER axle
Overtemperature protection: at 65-70° the light is switched off or switched off safely
Ready assembled with 1m connection cable
| Colour: White |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 35mm |
| Function: Flip Spotlights |
Internal Reference:
FLIP35HVF-100x2-WE
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.
Attention: The LED lights are extremely bright! Never look directly into an LED!
