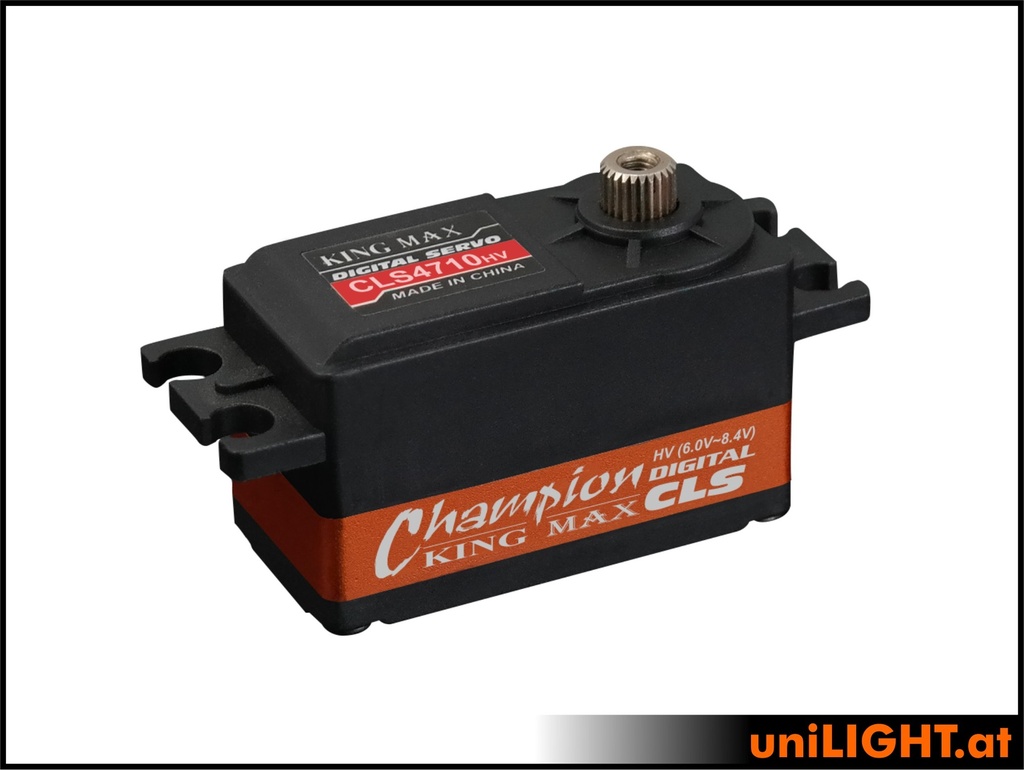

20mm Low-Profile Servo CLS4710HV, HV, MG
CLS4710HV
The CLS4710HV 20mm Low-Profile Servo is a high-performance, ultra-light servo designed for demanding RC applications. Equipped with metal gears and a coreless motor, it delivers smooth operation and reliable performance.
With high-voltage capability up to 8.4V, the CLS4710HV provides consistent power and responsiveness while maintaining a compact and lightweight design. Ideal for models that require both performance and precision in a low-profile form factor.
Operating Speed (6.0V):0.10sec/60 degrees
Operating Speed (7.4V):0.08sec/60 degrees
Operating Speed (8.4V):0.07sec/60 degrees
Stall Torque (6.0V):10.2kg.cm
Stall Torque (7.4V):12.0kg.cm
Stall Torque (8.4V):13.6kg.cm
Dimentions: 40.5X20X26mm
Weight: 47.5g
Spline: 25T (Futaba)
| Stall Torque (8.4V): 13.6kg.cm |
| Stall Torque (7.4V): 12kg.cm |
| Stall Torque (6V): 10.2kg.cm |
| Speed (8.4V): 0.07s/60° |
| Speed (7.4V): 0.08/60° |
| Speed (6V): 0.10/60° |
| Family: 20mm Low-Profile |
| Weight: 47.5g |
| Gear: Metall |
| Body: Teil-Aluminium |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes |
| Axis: 5.90/25T/Futaba |
| Width: 20.5mm |
| Length: 41mm |
| Height: 26mm |
Internal Reference:
CLS4710HV
