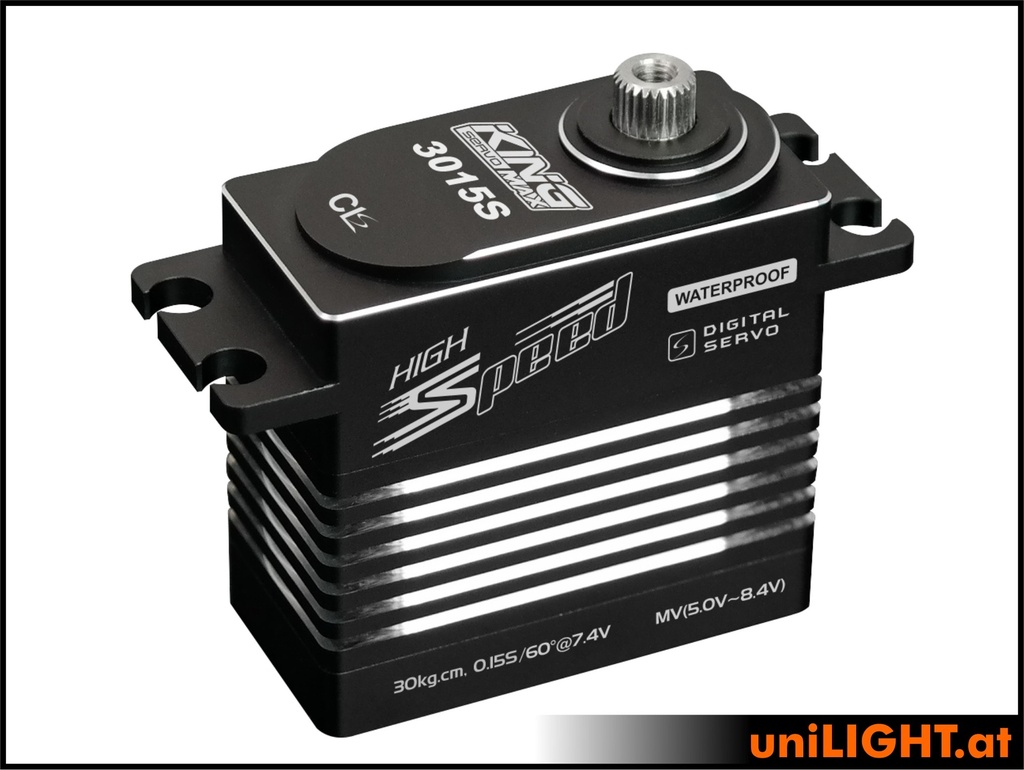

20mm Standard Servo CLS3015S, HV, ALU, MG
CLS3015S

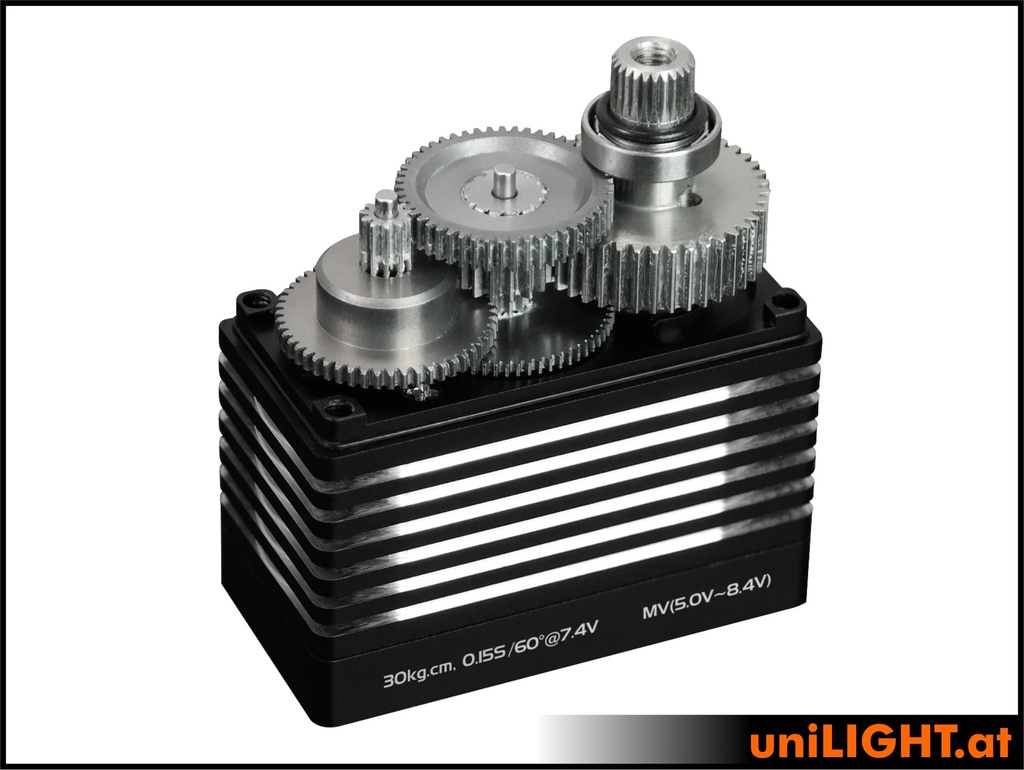

The CLS3015S 20mm Standard Servo is a high-performance, digital multivoltage servo designed for reliability and precision. Featuring high-precision steel gears and a coreless motor, this servo delivers excellent performance with long-lasting durability.
The full CNC aluminum case ensures maximum strength, while the long-life potentiometer guarantees smooth operation over time. With dual ball bearings and a waterproof design, it is built to withstand harsh conditions. Operating up to 8.4V, this servo is perfect for demanding applications requiring both power and precision.
Dead band: 2μs default
Working frequence: 1520μs / 330hz
Operating Voltage: DC6.0~8.4 V
Operating Speed (6.0V): 0.18sec/60 º
Operating Speed (7.4V): 0.15sec/60 º
Operating Speed (8.4V): 0.13sec/60 º
Stall Torque (6.0V): 27.8kg.cm
Stall Torque (7.4V): 30kg.cm
Stall Torque (8.4V): 35 kg.cm
Dimentions: 40X20X40.9mm
Weight: 80g
Bearings: 2BB
Connector Wire Length: 300mm
Spline: 25T (Futaba)
Water Resistant
| Stall Torque (8.4V): 35kg.cm |
| Stall Torque (7.4V): 30kg.cm |
| Stall Torque (6V): 27.8kg.cm |
| Blokiermoment(5V): 25.7kg.cm |
| Speed (8.4V): 0.13sec/60° |
| Speed (7.4V): 0.15s/60° |
| Speed (6V): 0.18s/60° |
| Geschwindigkeit(5V): 0.20s/60° |
| Family: 20mm Alu |
| Weight: 80g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes, 180° possible |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 39mm |
Internal Reference:
CLS3015S
