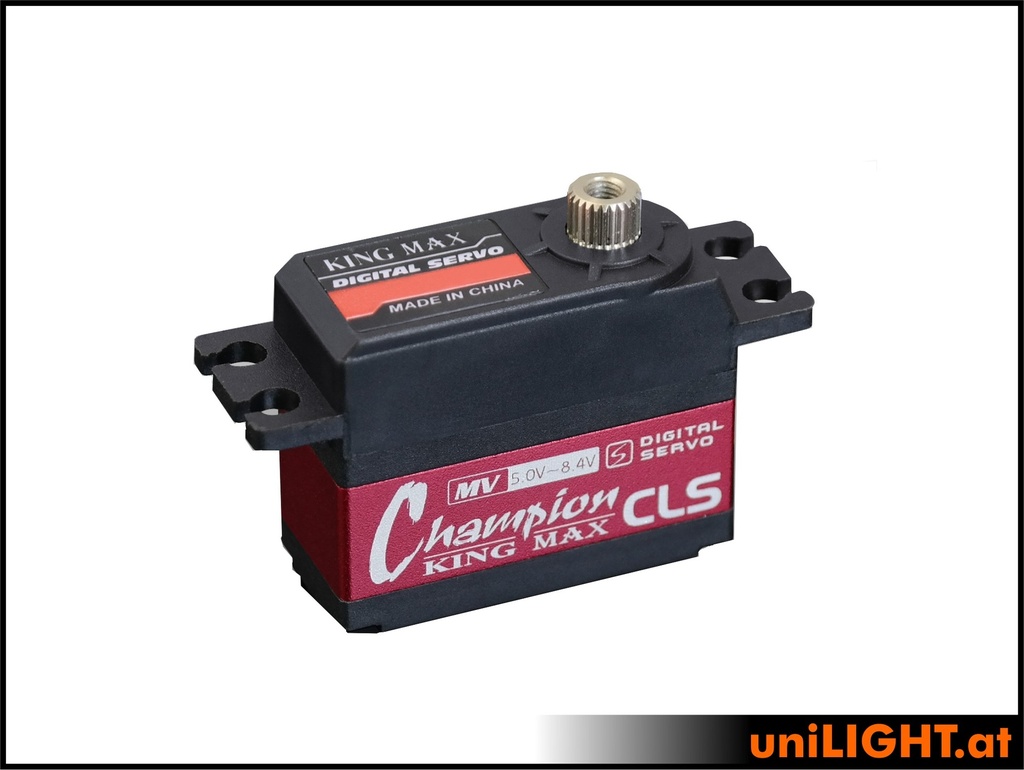

15mm Mini-Servo CLS2875H, HV, MG
CLS2875H
Miniservo of 15mm class with metal gears
The CLS2875H 15mm Mini Servo is a reliable servo in the 15mm class, designed with precision metal gears for smooth and durable operation. With high-voltage capability up to 8.4V, it provides consistent performance for a variety of RC applications. A solid choice for those seeking a dependable servo with a compact design.
Dead band: 2us
Working frequence:1520μs/330hz or 760μs 560hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.12sec/60 degrees
Operating Speed (6.0V): 0.10sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (5.0V): 7.60kg.cm
Stall Torque (6.0V): 8.40kg.cm
Stall Torque (7.4V): 10.0kg.cm
Stall Torque (8.4V): 11.0kg.cm
Dimentions: 35x15x29mm
Weight: 28g
Bearing: 2BB
Connector Wire Length: JR260mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 11.0kg.cm |
| Stall Torque (7.4V): 10.0kg.cm |
| Stall Torque (6V): 8.4kg.cm |
| Blokiermoment(5V): 7.6kg.cm |
| Speed (8.4V): 0.07s/60° |
| Speed (7.4V): 0.08/60° |
| Speed (6V): 0.10/60° |
| Geschwindigkeit(5V): 0.12s/60° |
| Family: 15mm Mini |
| Weight: 28g |
| Gear: Metall |
| Body: Teil-Aluminium |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes, 180° possible |
| Axis: 5.90/25T/Futaba |
| Width: 14.92mm |
| Length: 35mm |
| Height: 29.2mm |
Internal Reference:
CLS2875H
