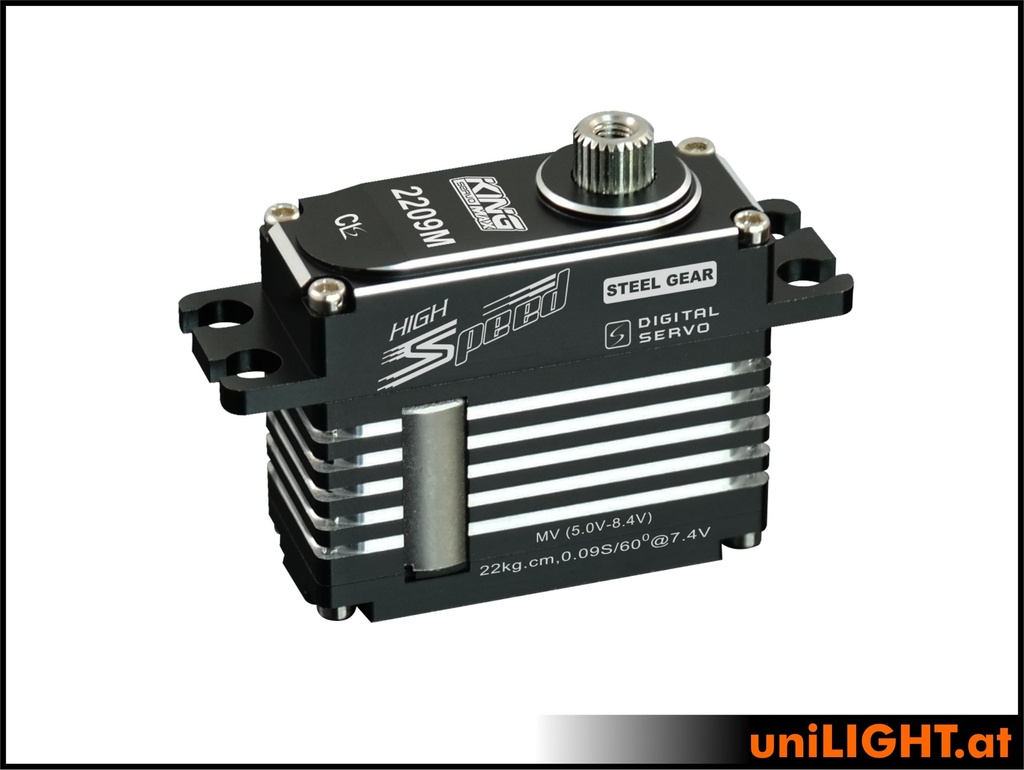

15mm Mini-Servo CLS2209M
CLS2209M

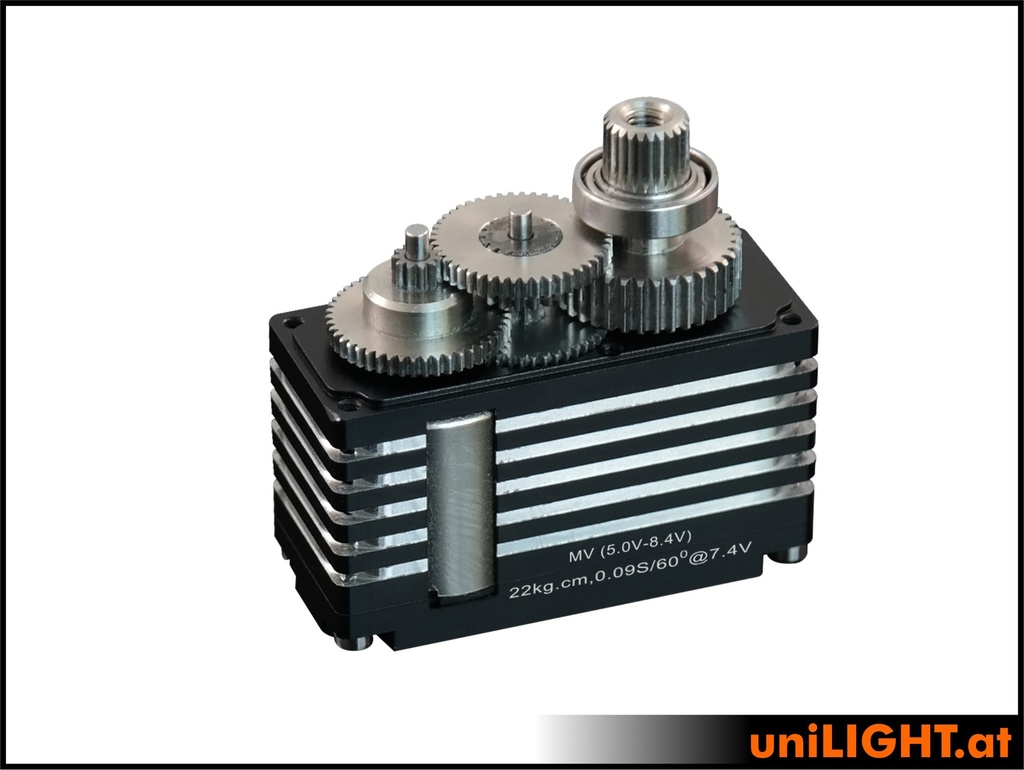

Top-tier servo in the 15mm class with metal gear and aluminum housing
The CLS2209M 15mm Mini Servo is a top-tier servo in the 15mm class, designed for precision and reliability. Equipped with a metal gear train, it offers smooth and durable performance, perfect for demanding RC applications.
Now available at a special price, the CLS2209M delivers premium quality and value in one compact package.
Operating Speed(5.0V):0.14sec/60degrees
Operating Speed(6.0V):0.11sec/60degrees
Operating Speed(7.4V):0.09sec/60degrees
Operating Speed(8.4V):0.08sec/60degrees
Stall Torque(5.0V):16kg.cm(222.24oz/in)
Stall Torque(6.0V):19kg.cm(263.91oz/in)
Stall Torque(7.4V):22kg.cm(305.58oz/in)
Stall Torque(8.4V):25kg.cm(347.25oz/in)
Dimensions:35.5*15*29.7mm/1.38*0.58*1.15in
Weight:43g(1.51oz)
Connector Wire Length:JR250mm(9.75n)
| Stall Torque (8.4V): 25kg.cm |
| Stall Torque (7.4V): 22kg.cm |
| Stall Torque (6V): 19kg.cm |
| Blokiermoment(5V): 16kg.cm |
| Speed (8.4V): 0.08sec/60° |
| Speed (7.4V): 0.09sec/60° |
| Speed (6V): 0.11s/60° |
| Geschwindigkeit(5V): 0.14s/60° |
| Family: 15mm Mini |
| Weight: 43g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes, 180° possible |
| Axis: 5.90/25T/Futaba |
| Width: 15mm |
| Length: 35.5mm |
| Height: 30mm |
Internal Reference:
CLS2209M
