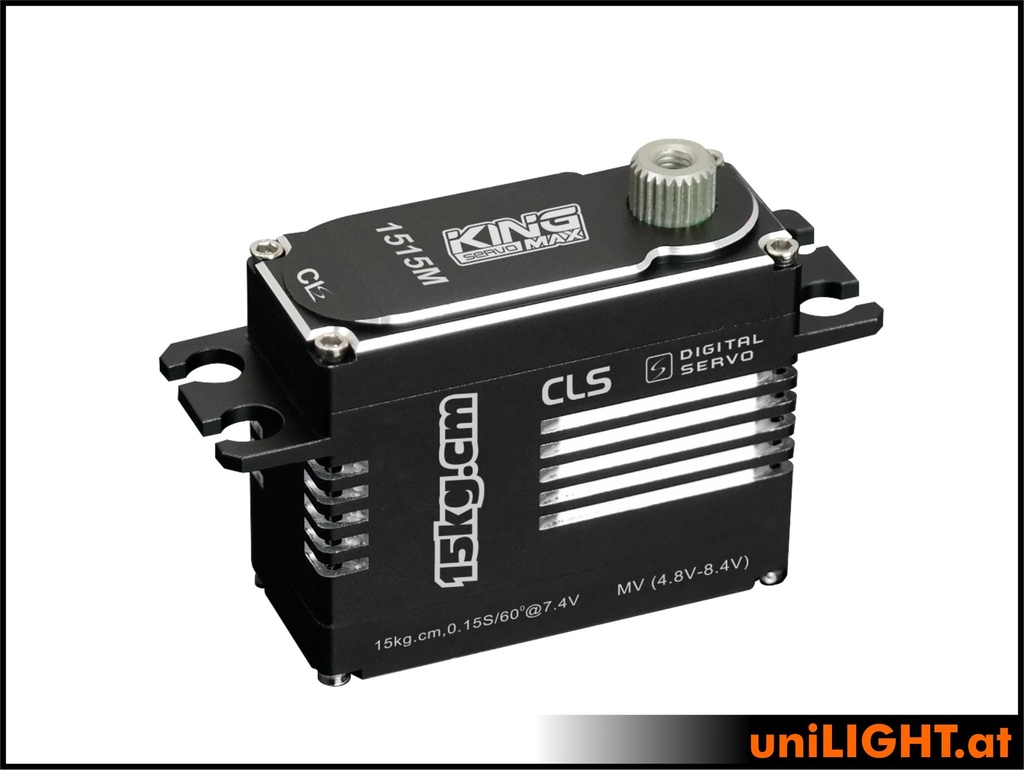

15mm Mini-Servo CLS1515M, HV, ALU, MG
CLS1515M
High-end miniservo of 15mm class with metal gear and aluminum housing

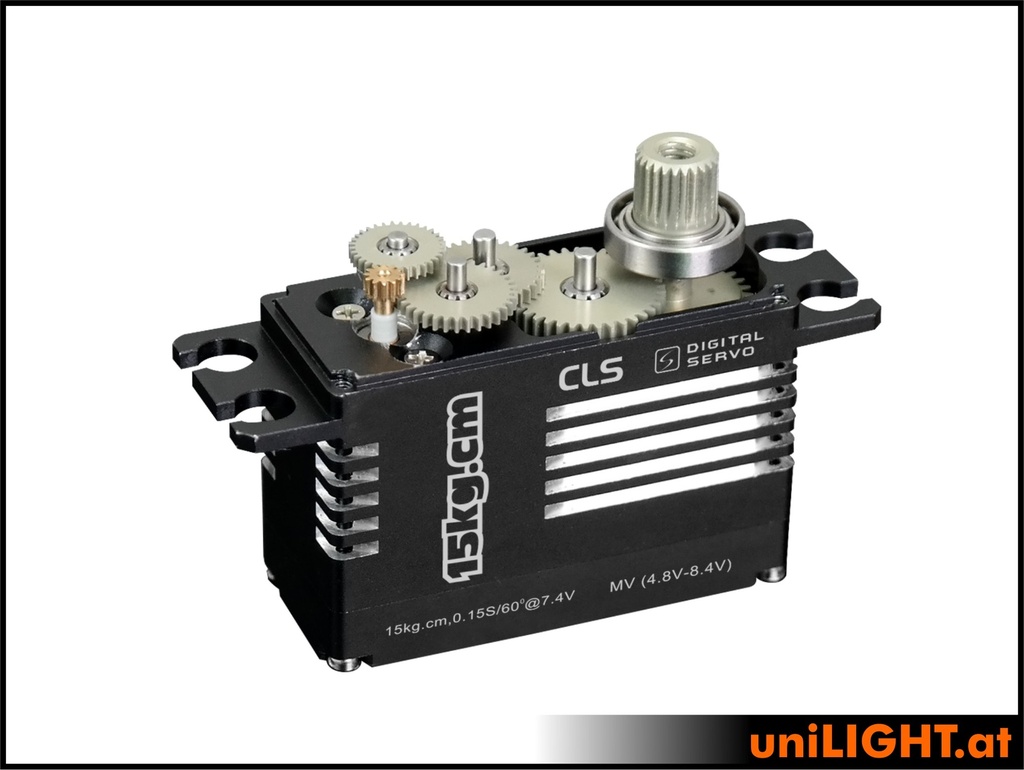

The CLS1515M 15mm Mini Servo is a high-end servo designed for advanced RC applications that demand precision and durability. Featuring metal gears, it ensures smooth and reliable operation even under high stress.
With high-voltage (HV) capability up to 8.4V, it provides consistent performance across a variety of setups. The aluminum housing enhances strength, durability, and heat dissipation, making it ideal for high-performance models requiring both power and reliability. The CLS1515M is a premium choice for RC enthusiasts seeking top-tier performance in the 15mm servo class.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC4.8~8.4 V
Operating Speed (6.0V): 0.20sec/60 degrees
Operating Speed (7.4V): 0.15sec/60 degrees
Operating Speed (8.4V): 0.14sec/60 degrees
Stall Torque (6.0V): 10.5kg.cm
Stall Torque (7.4V): 15.0kg.cm
Stall Torque (8.4V): 17.0kg.cm
Dimentions: 35.5x15x28.5mm
Weight: 34g
Bearing: 2BB
Connector Wire Length: JR265 mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 17kg.cm |
| Stall Torque (7.4V): 15kg.cm |
| Stall Torque (6V): 10.5kg.cm |
| Blokiermoment(5V): 8.7kg.cm |
| Speed (8.4V): 0.14sec/60 |
| Speed (7.4V): 0.15s/60° |
| Speed (6V): 0.20s/60° |
| Geschwindigkeit(5V): 0.24s/60° |
| Family: 15mm Mini |
| Weight: 34g |
| Gear: Metall |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes |
| Axis: 5.90/25T/Futaba |
| Width: 15mm |
| Length: 35.5mm |
| Height: 21mm |
Internal Reference:
CLS1515M
