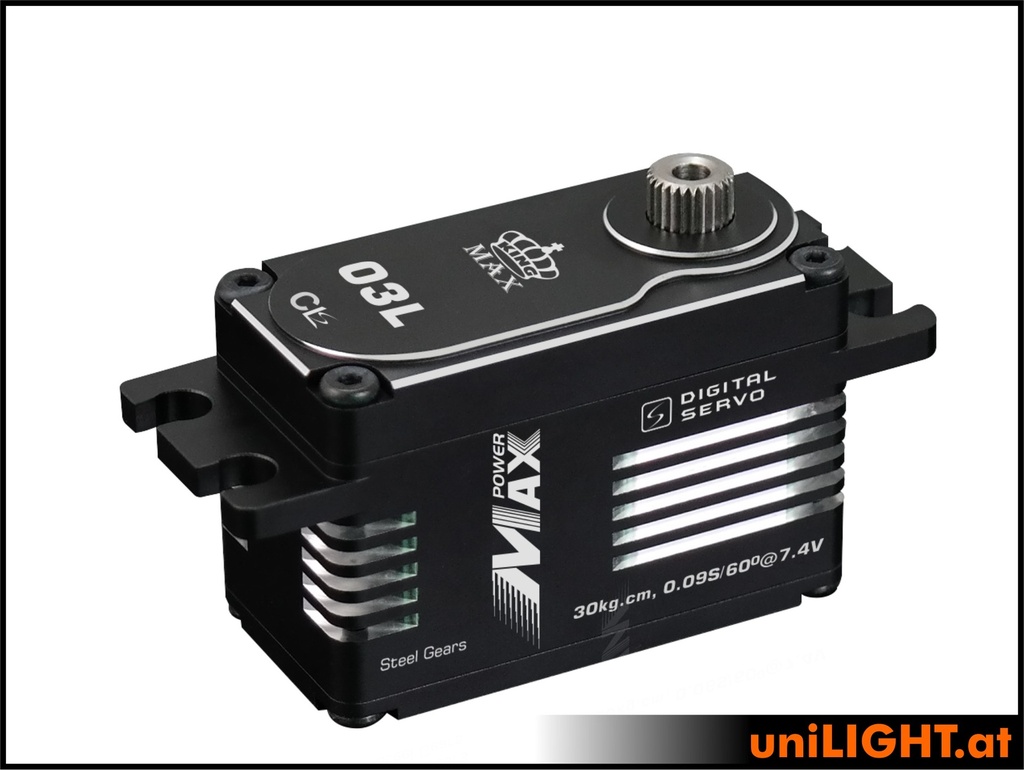

20mm Standard Low Profile CLS03L, HV, ALU, MG
CLS03L
The CLS03L 20mm Standard Low Profile Servo is a high-performance solution that combines a slim design with exceptional power and reliability. Despite its compact size, this servo delivers outstanding performance, making it perfect for applications where space is limited.

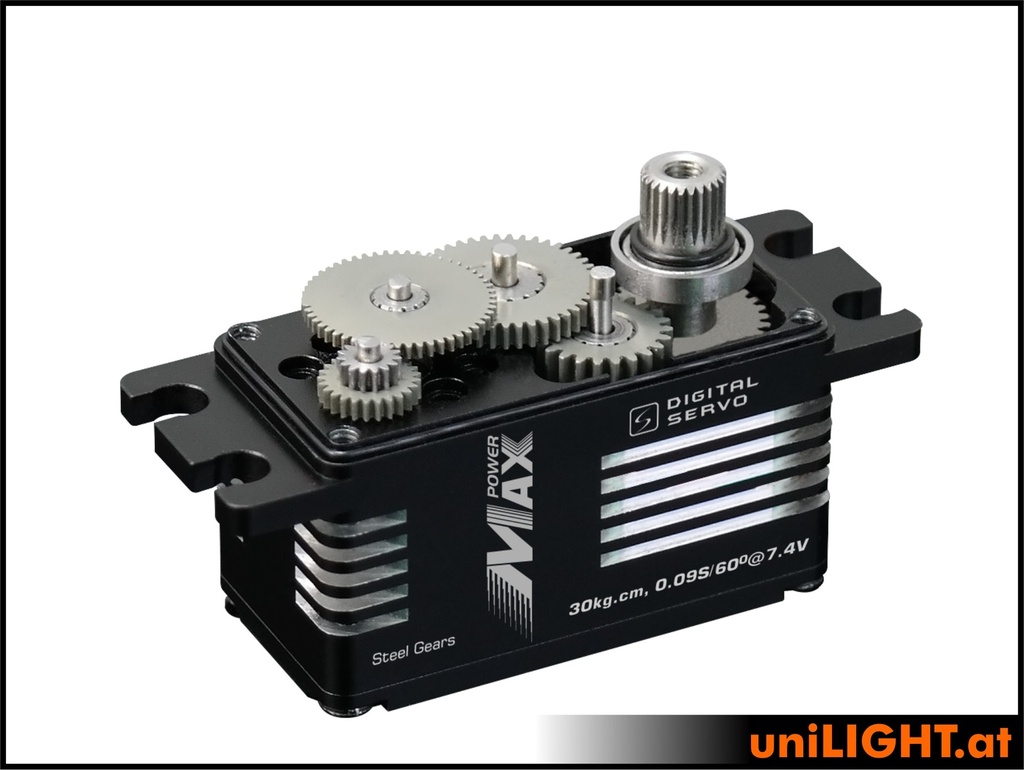

Featuring high-precision steel gears, a full CNC aluminum structure, and a high-quality coreless motor, the CLS03L ensures smooth and precise operation. Its patented gear chain design increases stability and durability, while dual ball bearings enhance performance. With high-voltage compatibility up to 8.4V and waterproof capabilities, this servo is built to withstand challenging environments and provide long-lasting reliability.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.13sec/60 degrees
Operating Speed (6.0V): 0.11sec/60 degrees
Operating Speed (7.4V): 0.09sec/60 degrees
Operating Speed (8.4V): 0.08sec/60 degrees
Stall Torque (5.0V): 23.0kg.cm
Stall Torque (6.0V): 28.0kg.cm
Stall Torque (7.4V): 30.0kg.cm
Stall Torque (8.4V): 38.0kg.cm
Dimentions: 40x20x27mm
Weight: 64g
Bearings: 2BB
Connector Wire Length: JR320 mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 38kg.cm |
| Stall Torque (7.4V): 30kg.cm |
| Stall Torque (6V): 28kg.cm |
| Blokiermoment(5V): 23kg.cm |
| Speed (8.4V): 0.08sec/60° |
| Speed (7.4V): 0.09sec/60° |
| Speed (6V): 0.11s/60° |
| Geschwindigkeit(5V): 0.13s/60° |
| Family: 20mm Low-Profile |
| Weight: 64g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 27mm |
Internal Reference:
CLS03L
