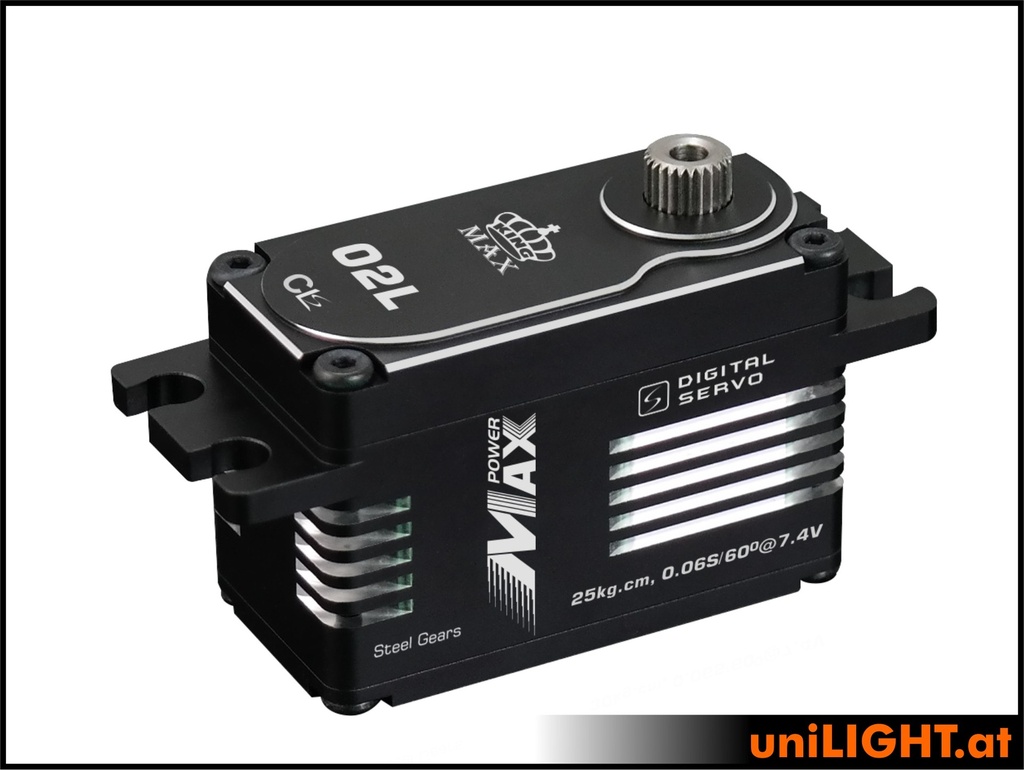

20mm Standard Low Profile CLS02L, HV, ALU, MG
CLS02L
The CLS02L 20mm Standard Low Profile Servo offers high-performance in a compact, low-profile design, perfect for applications with space constraints but high demands on precision and power. This digital servo features a patented gear chain design, ensuring superior stability and durability.
The high-precision steel gears provide smooth and reliable operation, while the full CNC-machined aluminum housing adds strength and resilience. Equipped with a high-quality coreless motor, this servo delivers consistent performance with minimal wear. Dual ball bearings enhance efficiency, reducing friction for smoother movement. With exceptional reliability and performance, the CLS02L is an ideal choice for a wide range of applications.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.08sec/60 degrees
Operating Speed (6.0V): 0.07sec/60 degrees
Operating Speed (7.4V): 0.06sec/60 degrees
Operating Speed (8.4V): 0.05sec/60 degrees
Stall Torque (5.0V): 18kg.cm
Stall Torque (6.0V): 20kg.cm
Stall Torque (7.4V): 25kg.cm
Stall Torque (8.4V): 28kg.cm
Dimentions: 40x20x27mm
Weight: 64g
Bearings: 2BB
Connector Wire Length: JR320 mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 28kg.cm |
| Stall Torque (7.4V): 25kg.cm |
| Stall Torque (6V): 20kg.cm |
| Blokiermoment(5V): 18kg.cm |
| Speed (8.4V): 0.05sec/60° |
| Speed (7.4V): 0.06sec/60° |
| Speed (6V): 0.07s/60° |
| Geschwindigkeit(5V): 0.08s/60° |
| Family: 20mm Low-Profile |
| Weight: 64g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 27mm |
Internal Reference:
CLS02L
