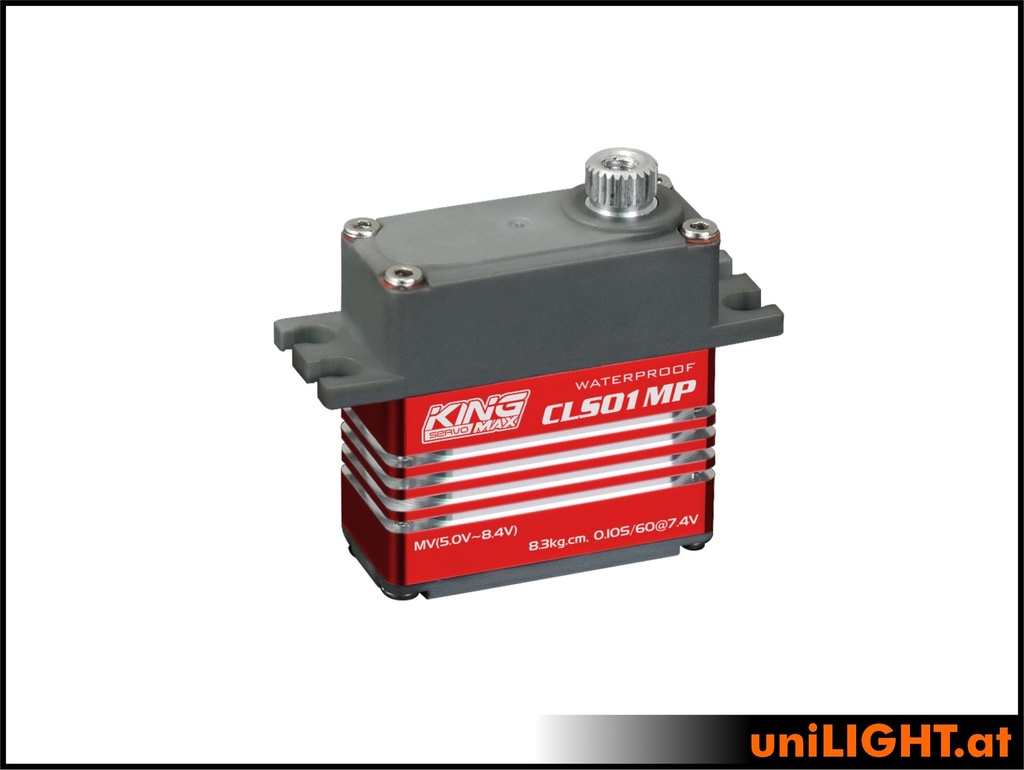

13mm Mini-Servo CLS01MP, HV, MG
CLS01MP
Mini-servo of 13mm class with metal gears and wide movement spectrum
The Kingmax CLS01MP 13mm Mini Servo is a robust and reliable servo in the 13mm class. With high-voltage capability, it operates up to 8.4V for consistent performance. The precision metal gears ensure durability and smooth operation. Its waterproof design makes it suitable for a variety of applications, offering excellent value for its quality and performance.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Waterproofed
Operating Voltage: DC5.0~8.4 V
Kugellager: 2BB
Spline: 25T (Futaba)
Operating Speed (5.0V): 0.16sec/60 degrees
Operating Speed (6.0V): 0.12sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.08sec/60 degrees
Stall Torque (5.0V): 6.4kg.cm
Stall Torque (6.0V): 7.4kg.cm
Stall Torque (7.4V): 8.3kg.cm
Stall Torque (8.4V): 9.3kg.cm
Dimensions: 29*13.6*30mm/1.13*0.53*0.1.17in
Weight: 27.8g(0.98oz)
Connector Wire Length: JR320mm(12.48in)
| Stall Torque (8.4V): 9.30kg.cm |
| Stall Torque (7.4V): 8.30kg.cm |
| Stall Torque (6V): 7.4kg.cm |
| Blokiermoment(5V): 6.40kg.cm |
| Speed (8.4V): 0.08sec/60° |
| Speed (7.4V): 0.10s/60° |
| Speed (6V): 0.12s/60° |
| Geschwindigkeit(5V): 0.16s/60° |
| Family: 15mm Mini |
| Weight: 28g |
| Gear: Metall |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Coreless |
| Softstart: No |
| Programmable: Yes, 180° possible |
| Axis: 5.90/25T/Futaba |
| Width: 13.5mm |
| Length: 29mm |
| Height: 30mm |
Internal Reference:
CLS01MP
