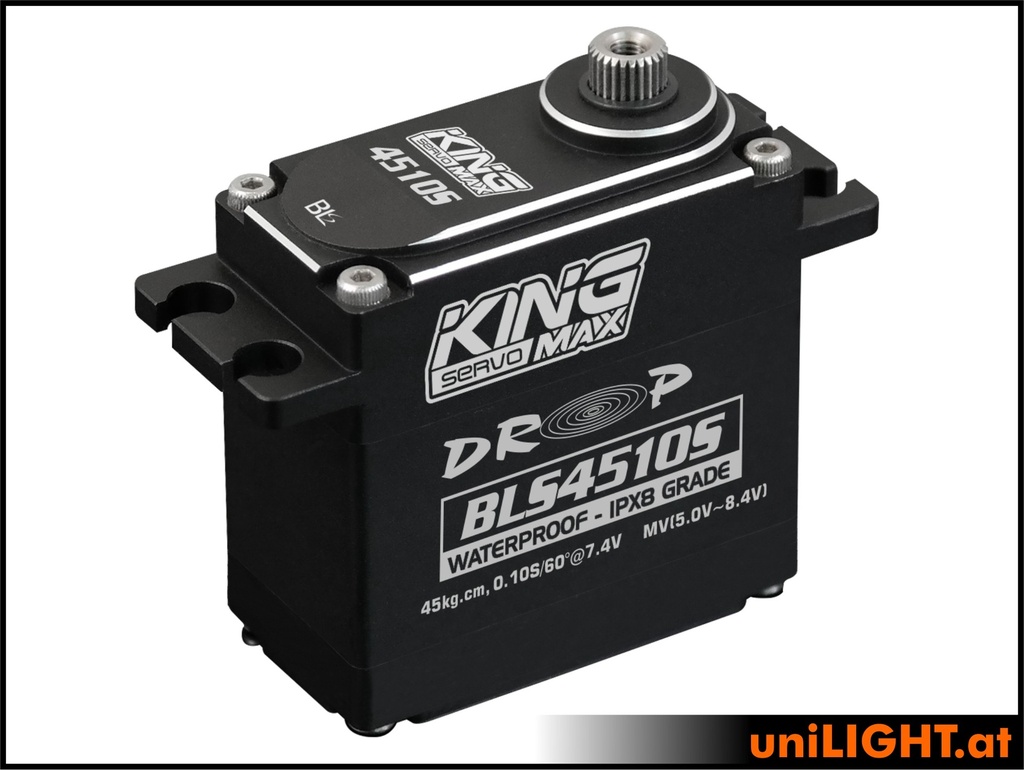

20mm Special Servo BLS4510S, HV, ALU, MG

https://www.unilight.at/web/image/product.template/3261/image_1920?unique=38adf06

BLS4510S

The BLS4510S is a high-performance, industrial-grade brushless servo designed for demanding applications where precision, durability, and reliability are paramount. With IPX8 waterproof certification, it is built to withstand the harshest conditions, making it perfect for outdoor or high-moisture environments. This digital multivoltage standard servo supports high-voltage operation up to 8.4V, delivering exceptional power and efficiency across a wide range of voltage setups.

The servo features high-precision steel gears, ensuring smooth and accurate operation under heavy loads. Its robust full CNC-machined aluminum housing provides maximum strength and rigidity, while the high-quality brushless motor offers long-lasting, efficient performance with minimal maintenance. Equipped with dual ball bearings, the BLS4510S boasts a super-long working life, making it an excellent choice for applications requiring top-tier performance, whether in industrial, competitive, or high-end hobbyist environments.

Technical Data:

Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.15sec/60 degrees
Operating Speed (6.0V): 0.13sec/60 degrees
Operating Speed (7.4V): 0.10sec/60 degrees
Operating Speed (8.4V): 0.09sec/60 degrees
Stall Torque (5.0V): 30kg.cm
Stall Torque (6.0V): 36kg.cm
Stall Torque (7.4V): 45kg.cm
Stall Torque (8.4V): 49kg.cm
Dimentions: 40.6x21x41.8mm
Weight: 92.7g
Bearings: 2BB
Connector Wire Length: JR300 mm
Spline: 25T (Futaba)

89.00 € 89.0 EUR 89.00 €

99.92 €

Not Available For Sale

  • Stall Torque (8.4V)
  • Stall Torque (7.4V)
  • Stall Torque (6V)
  • Blokiermoment(5V)
  • Speed (8.4V)
  • Speed (7.4V)
  • Speed (6V)
  • Geschwindigkeit(5V)
  • Family
  • Weight
  • Gear
  • Body
  • Ball Bearings
  • Motor
  • Softstart
  • Programmable
  • Axis
  • Width
  • Length
  • Height

This combination does not exist.

Stall Torque (8.4V): 49kg.cm
Stall Torque (7.4V): 45kg.cm
Stall Torque (6V): 36kg.cm
Blokiermoment(5V): 30kg.cm
Speed (8.4V): 0.09sec/60°
Speed (7.4V): 0.10s/60°
Speed (6V): 0.13sec/60°
Geschwindigkeit(5V): 0.15s/60°
Family: 21mm Spezial
Weight: 92.7g
Gear: Steel
Body: Aluminum
Ball Bearings: 2BB
Motor: Brushless
Softstart: No
Programmable: No
Axis: 5.90/25T/Futaba
Width: 21mm
Length: 40.5mm
Height: 41.5mm

Internal Reference: BLS4510S
