20mm Standard Low Profile BLS03L, HV, ALU, MG
BLS03L
The BLS03L is a high-performance digital low-profile servo designed for superior performance in tight spaces. Despite its compact, lightweight build, it offers outstanding power and reliability. With its patented gear chain design, it provides increased stability and durability, making it ideal for high-demand applications.

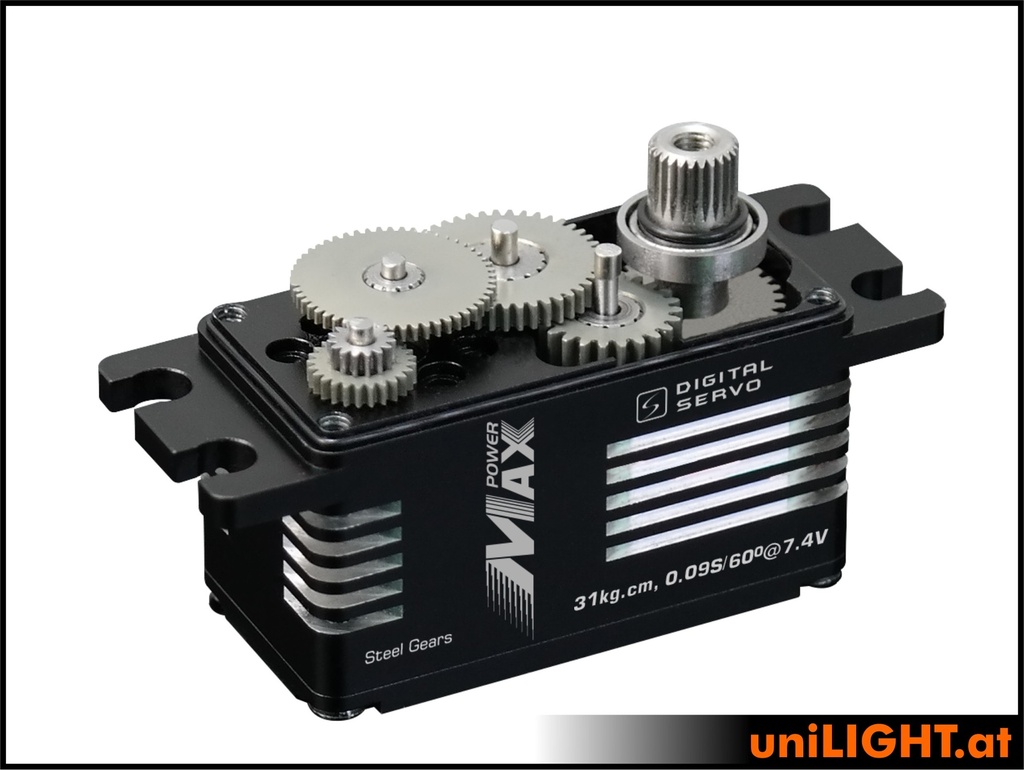

The high-precision steel gears ensure smooth and accurate operation, while the full CNC-machined aluminum housing guarantees strength and longevity. Equipped with a high-quality brushless motor, this servo operates efficiently with minimal wear. Dual ball bearings enhance overall performance, and the servo is waterproof, making it suitable for various environmental conditions. With high-voltage support up to 8.4V, the BLS03L is the perfect choice for professionals and enthusiasts who demand both performance and reliability.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.14sec/60 degrees
Operating Speed (6.0V): 0.12sec/60 degrees
Operating Speed (7.4V): 0.09sec/60 degrees
Operating Speed (8.4V): 0.08sec/60 degrees
Stall Torque (5.0V): 18.6kg.cm
Stall Torque (6.0V): 22.4kg.cm
Stall Torque (7.4V): 27.6kg.cm
Stall Torque (8.4V): 31.3kg.cm
Dimentions: 40x20x27mm
Weight: 70g
Bearings: 2BB
Connector Wire Length: JR320 mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 35kg.cm |
| Stall Torque (7.4V): 31kg.cm |
| Stall Torque (6V): 27kg.cm |
| Blokiermoment(5V): 23kg.cm |
| Speed (8.4V): 0.08sec/60° |
| Speed (7.4V): 0.09sec/60° |
| Speed (6V): 0.11s/60° |
| Geschwindigkeit(5V): 0.13s/60° |
| Family: 20mm Low-Profile |
| Weight: 65g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Brushless |
| Softstart: No |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 27mm |
Internal Reference:
BLS03L
