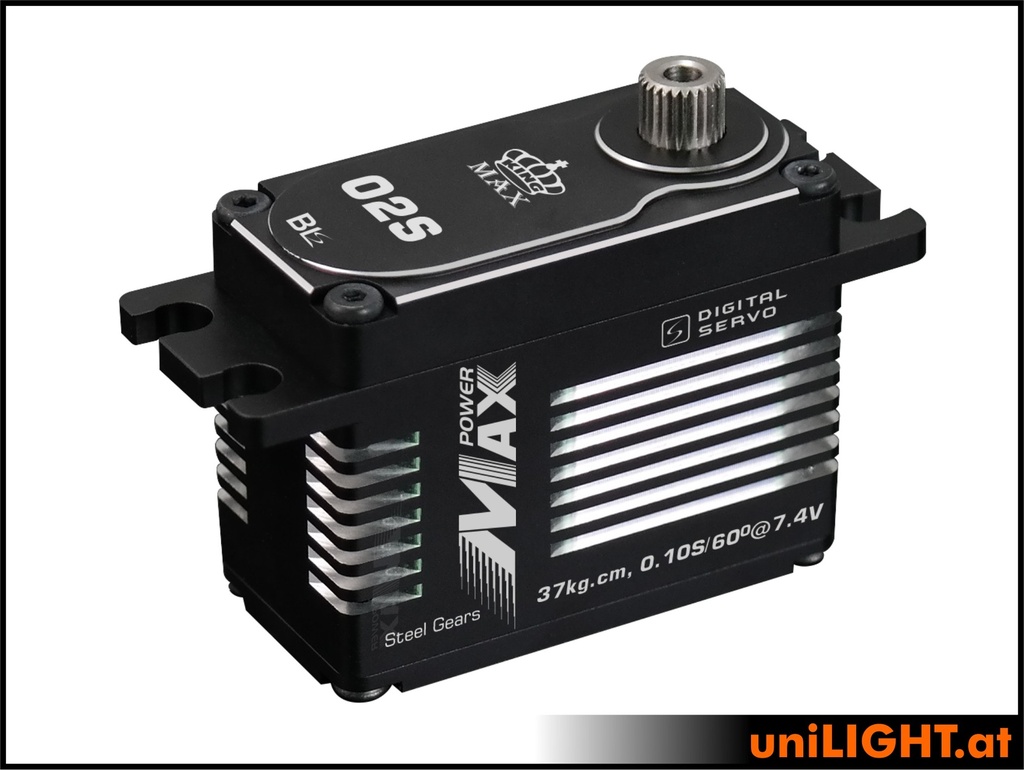

20mm Standard Servo BLS02S, HV, ALU, MG
BLS02S
The BLS02S 20mm Standard Servo combines high performance with robust durability, making it an excellent choice for demanding applications. Designed with a patented gear chain system, this servo ensures superior stability and extended lifespan.

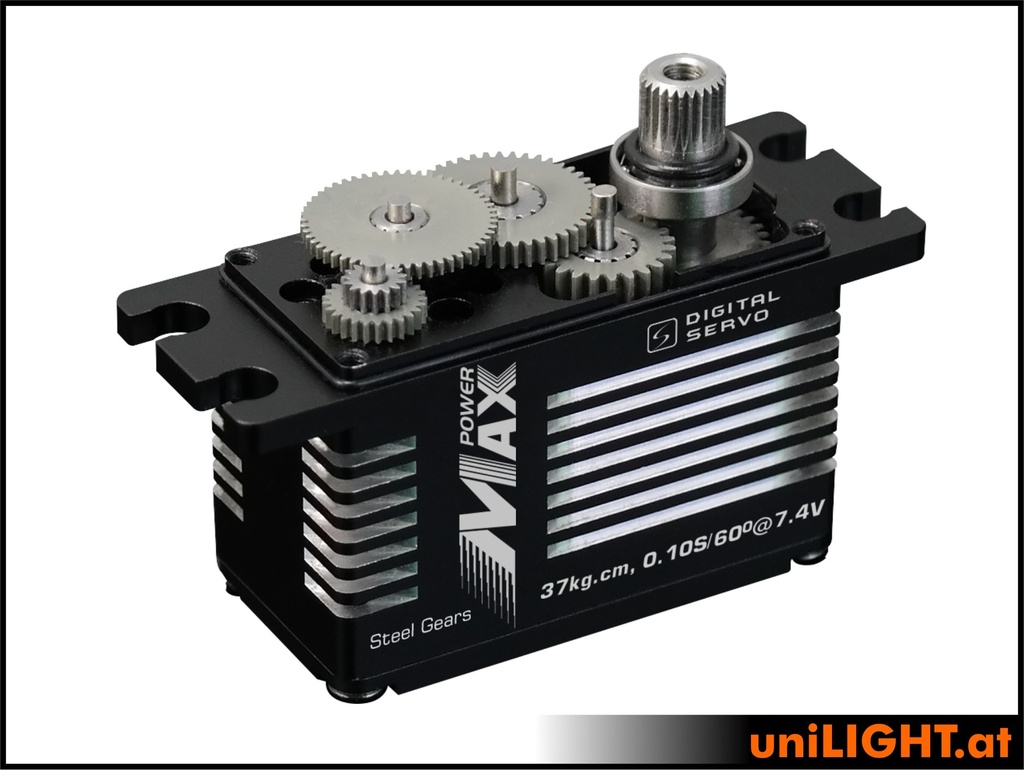

Its high-precision steel gears and full CNC-machined aluminum housing provide exceptional strength and reliability. Powered by a high-quality brushless motor, it delivers smooth and efficient operation, while dual ball bearings enhance performance and reduce wear. The waterproof design ensures reliable functionality in various environmental conditions. With support for high voltage up to 8.4V, the BLS02S is a versatile and powerful solution for professional and hobby applications.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.12sec/60 degrees
Operating Speed (6.0V): 0.10sec/60 degrees
Operating Speed (7.4V): 0.08sec/60 degrees
Operating Speed (8.4V): 0.07sec/60 degrees
Stall Torque (5.0V): 17.5kg.cm
Stall Torque (6.0V): 21kg.cm
Stall Torque (7.4V): 25.5kg.cm
Stall Torque (8.4V): 29kg.cm
Dimentions: 40x20x33mm
Weight: 79g
Bearings: 2BB
Connector Wire Length: JR320 mm
Spline: 25T (Futaba)
Water Resistant
| Stall Torque (8.4V): 39kg.cm |
| Stall Torque (7.4V): 37kg.cm |
| Stall Torque (6V): 29kg.cm |
| Blokiermoment(5V): 24kg.cm |
| Speed (8.4V): 0.09sec/60° |
| Speed (7.4V): 0.10s/60° |
| Speed (6V): 0.13sec/60° |
| Geschwindigkeit(5V): 0.16s/60° |
| Family: 20mm Power |
| Weight: 75g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Brushless |
| Softstart: No |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 33.5mm |
Internal Reference:
BLS02S
