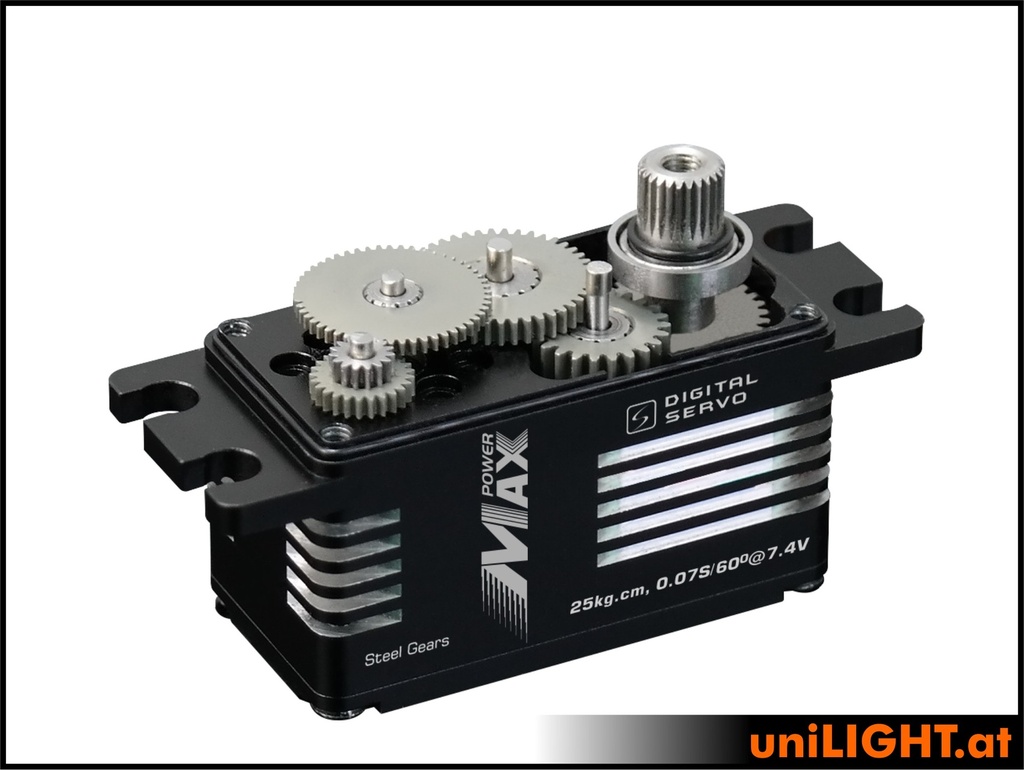

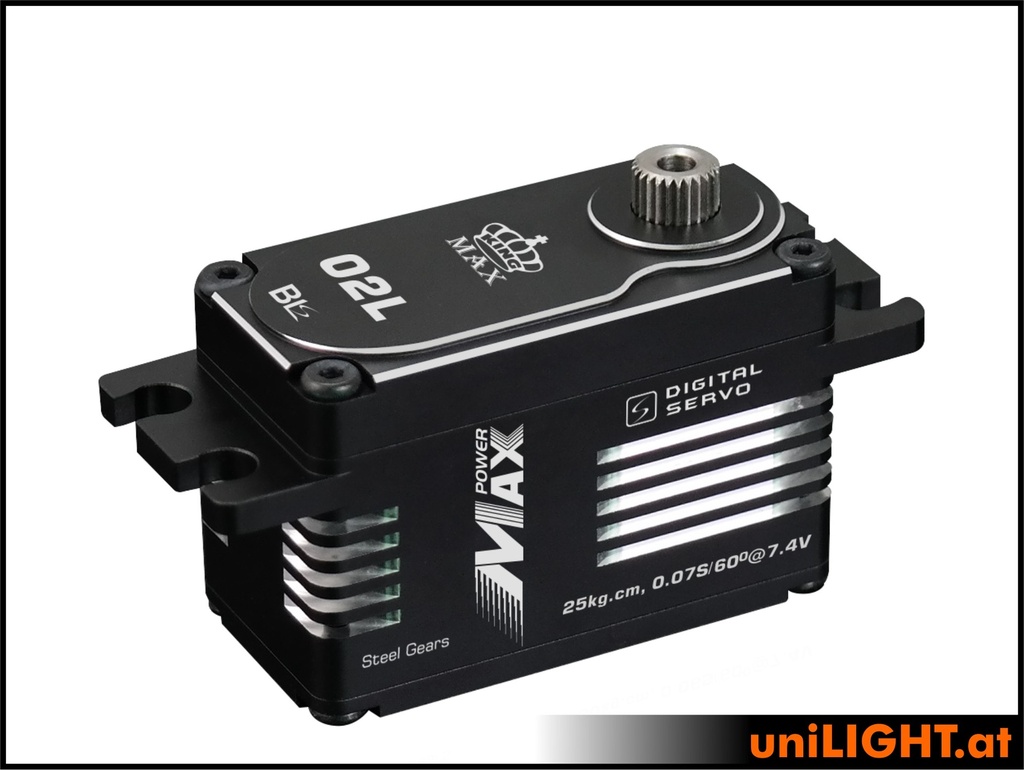

20mm Standard Low Profile BLS02L, HV, ALU, MG
BLS02L
The BLS02L 20mm Standard Low Profile Brushless Servo is a high-performance, low-profile servo that combines lightweight design with exceptional power and efficiency. Despite its compact size, it delivers outstanding performance, making it a perfect choice for applications where space is limited but high torque and precision are required.
The brushless motor ensures smooth, reliable operation with minimal maintenance, while the aluminum housing adds durability and strength. With high-voltage capability up to 8.4V, this servo provides the reliability and performance needed for demanding tasks. The BLS02L is ideal for applications where both performance and a low-profile design are essential.
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Voltage: DC5.0~8.4 V
Operating Speed (5.0V): 0.08sec/60 degrees
Operating Speed (6.0V): 0.07sec/60 degrees
Operating Speed (7.4V): 0.06sec/60 degrees
Operating Speed (8.4V): 0.05sec/60 degrees
Stall Torque (5.0V): 18kg.cm
Stall Torque (6.0V): 20kg.cm
Stall Torque (7.4V): 25kg.cm
Stall Torque (8.4V): 28kg.cm
Dimentions: 40x20x27mm
Weight: 70g
Bearings: 2BB
Connector Wire Length: JR320 mm
Spline: 25T (Futaba)
| Stall Torque (8.4V): 28kg.cm |
| Stall Torque (7.4V): 25kg.cm |
| Stall Torque (6V): 21kg.cm |
| Blokiermoment(5V): 18kg.cm |
| Speed (8.4V): 0.06/60° |
| Speed (7.4V): 0.07sec/60° |
| Speed (6V): 0.09sec/60° |
| Geschwindigkeit(5V): 0.11s/60° |
| Family: 20mm Low-Profile |
| Weight: 65g |
| Gear: Steel |
| Body: Aluminum |
| Ball Bearings: 2BB |
| Motor: Brushless |
| Softstart: No |
| Programmable: No |
| Axis: 5.90/25T/Futaba |
| Width: 20mm |
| Length: 40mm |
| Height: 27mm |
Internal Reference:
BLS02L
