5mm BAR Strobe light, 20Wx2
BAR5-200x2-WE
Extremely powerful strobe light designed for all sport applications
The 5mm Strobe bar has been equipped with eighth-generation LED chips, significantly enhancing its performance and achieving up to 1500 lumens. This extremely bright strobe light is perfect for all sports applications, gliders ACLs, and as a navigation guide. Compact and powerful – the ideal combination when functionality is key! As small as a matchstick yet delivering the power of a powerful spotlight!

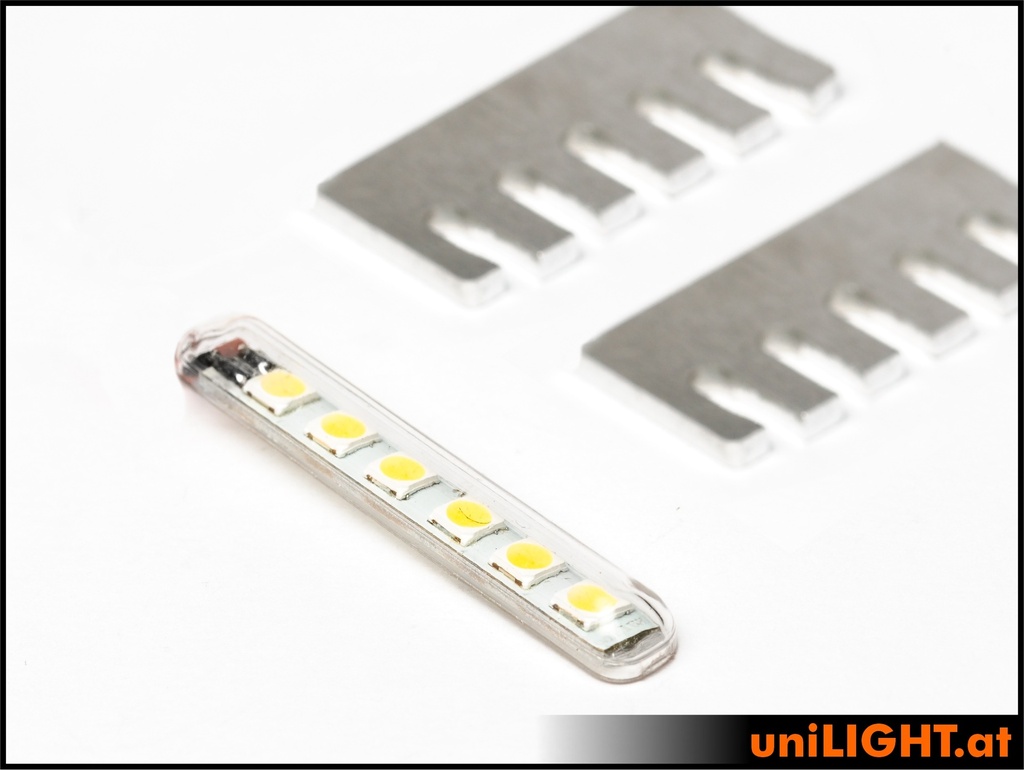

It features six extremely strong emitters mounted on an aluminum carrier, completed with a matching ultra-slim polycarbonate cover. The lights are pre-configured for direct operation with 2S/8V LiPo. The supplied heat sinks are necessary for vertical mounting to dissipate heat at a duty cycle of up to 10% to a maximum of 15%. Operation without heat sinks is NOT recommended.
Performance: 20W reference power with 2x technic,
Voltage: 8(12)V, 1.75A
Beam angle: > 160°
Light intensity: ~1500 Lumen WHITE
Dimentions: 38x5x4mm
Weight:3g (without cable)
Perfect for all sports applications, gliders ACLs, and as a navigation guide
Equipped with 1m silicone connection cable, 2 cooling plates
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Colour: White |
| Design: Bars/Stripes |
| Dimensions: 5mm |
| Function: Strobe |
Internal Reference:
BAR5-200x2-WE
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
