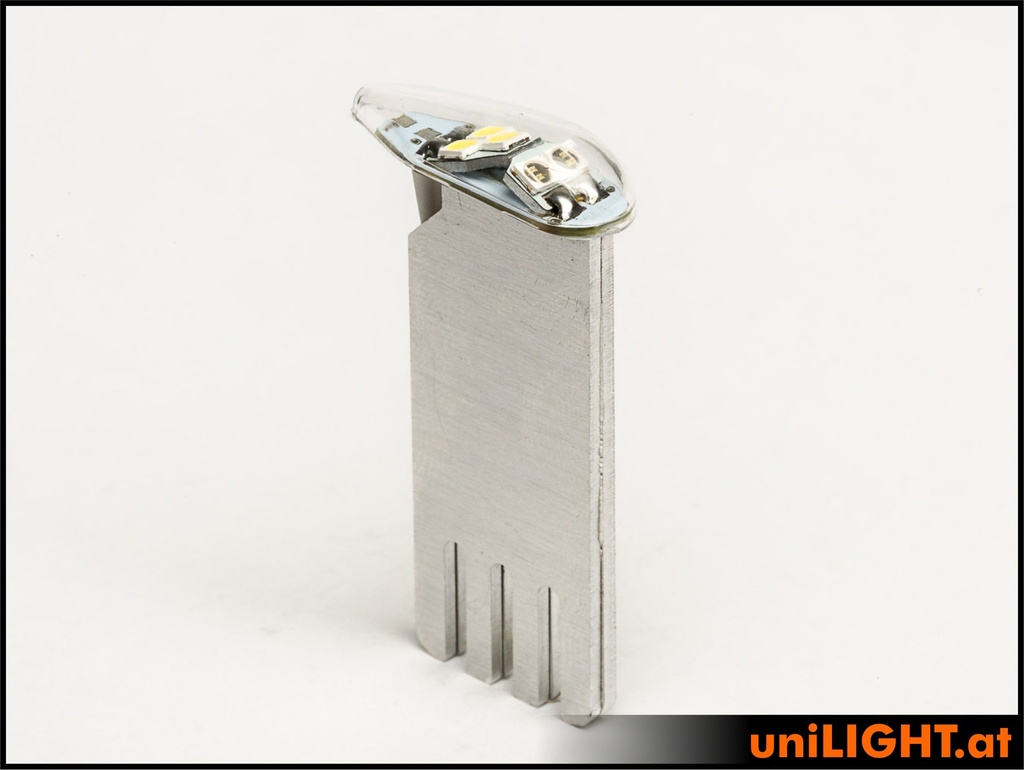

9mm DUAL Navigation Light + Strobe, 11Wx2, T-Fuse
DUAL9F-110x2
The power model of the new generation of compact 9mm position lights with integrated flash and temperature fuse!
The angled design ensures optimal forward emission for the position light and side emission for the strobe. Provides excellent visibility with minimal glare, just like the prototypes. The extremely compact design makes it easy to integrate in smaller models but also in bigger projects. Order includes a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate. The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down.
Electricity: 4Wx2 RED/GREEN and 7Wx2 WHITE reference power, 8(12)V Electricity: 0.4A RED/GREEN, 0,6A WHITE
Beam angle: 0 to 120° RED/GREEN, 60° to 180° WHITE
Light intensity: ~100 Lumen RED
Light intensity: ~150 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimension: 9.5x30x50mm
Weight: 9g (without cable)
Equipped with 1m silicone cable and pre-configured resistor for 2S. Fully assembled with high-quality polycarbonate cap
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 9mm |
Use additional resistor for 3S operation.
The cap must be glued to the light module on the model.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
