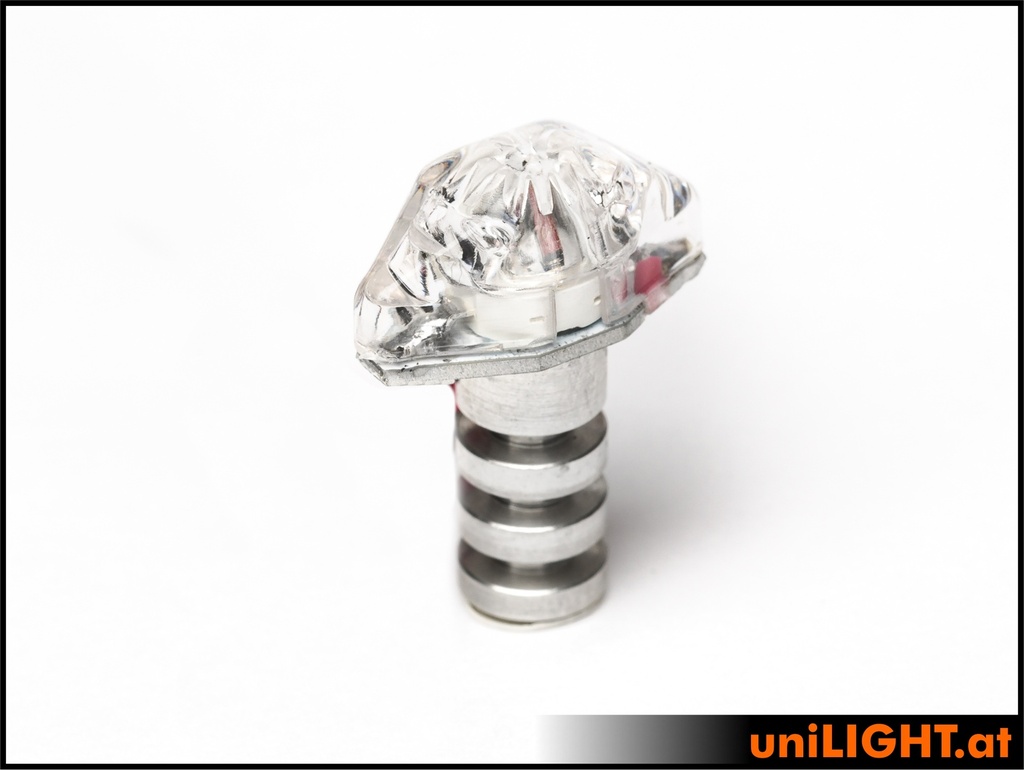

8mm MINI Strobe Light,4W, SHORT

https://www.unilight.at/web/image/product.template/1391/image_1920?unique=38a6efe

MINIX-040

The short version of the miniature high-performance light with 4W reference power for smaller models, on tail fins, thin wings or also on styrofoam models. The mini luminaire is delivered as a ready assembled unit on a CNC manufactured aluminium heatsink and an enclosed polycarbonate cap as covering. The cap is especially designed to scatter light for better visibility. It has to be glued on during installation.

​

Electricity: 4W reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~50 Lumen RED
Light intensity: ~80Lumen GREEN
Light intensity: 100 Lumen WHITE
Dimension cap: 8x18x9
Dimension cooling pin: D7x14
Weight: 2.5g (without cable)

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S.

15.75 € 15.75 EUR 15.75 €

15.75 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Strobe
Dimensions: 8mm

Short URL

Assembly Instruction:

Use additional resistor for 3S operation.
The cap has to be glued on during installation.

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
