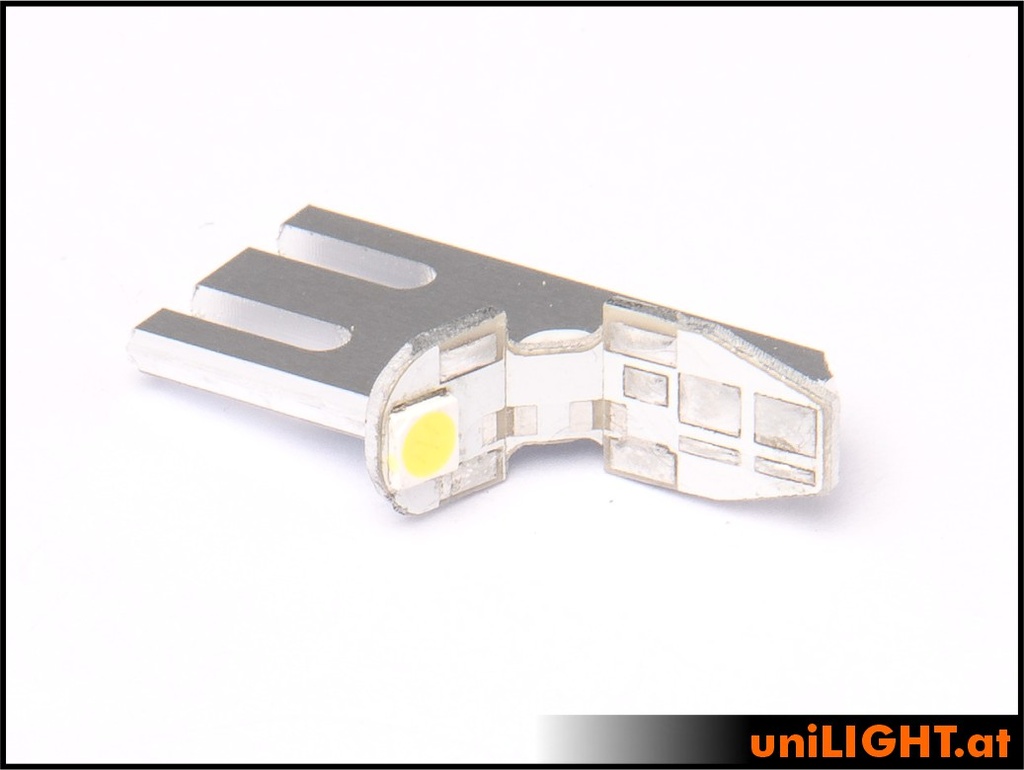

7mm REC Navigation light, 2Wx2

https://www.unilight.at/web/image/product.template/2132/image_1920?unique=bd8bf00

REC7-020x2

The RECESSED (=INTEGRATED) series lights are designed for direct installation into wings when cutouts and coverings that match the wing shape are already in place. This means that no additional caps are included, as these follow the wing's form. This type of integration into the wing geometry is increasingly common, especially in modern aircraft.

With this series, we now offer position lights as well as combined position and strobe lights for custom installation.

The series is available in 7mm, 10mm, and 15mm variants, each offering increased performance according to the size and weight.

​

Performance: 2W reference power with 2x technic
Voltage: 8(12)V, 0.4A
Beam angle: ~120°
Light intensity: ~55 Lumen RED
Light intensity: ~100 Lumen GREEN
Light intensity: ~150 Lumen WHITE
Dimentions: 27x12x7mm
Gewicht: 2g (ohne Kabel)

Delivery Content:

Equipped with 0.5m Teflon cable

14.08 € 14.08 EUR 14.08 €

14.08 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 0.5m PTFE 0,14mm²
Design: profile-shaped
Function: Navigation/Position Light
Dimensions: 7mm

Short URL

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
