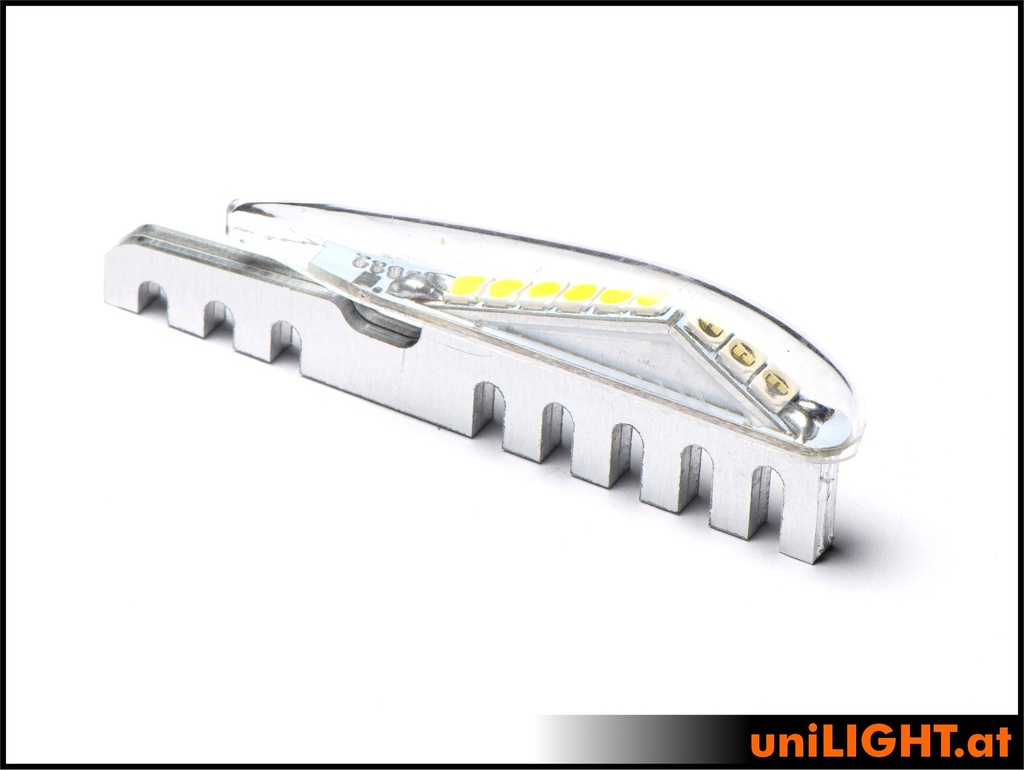

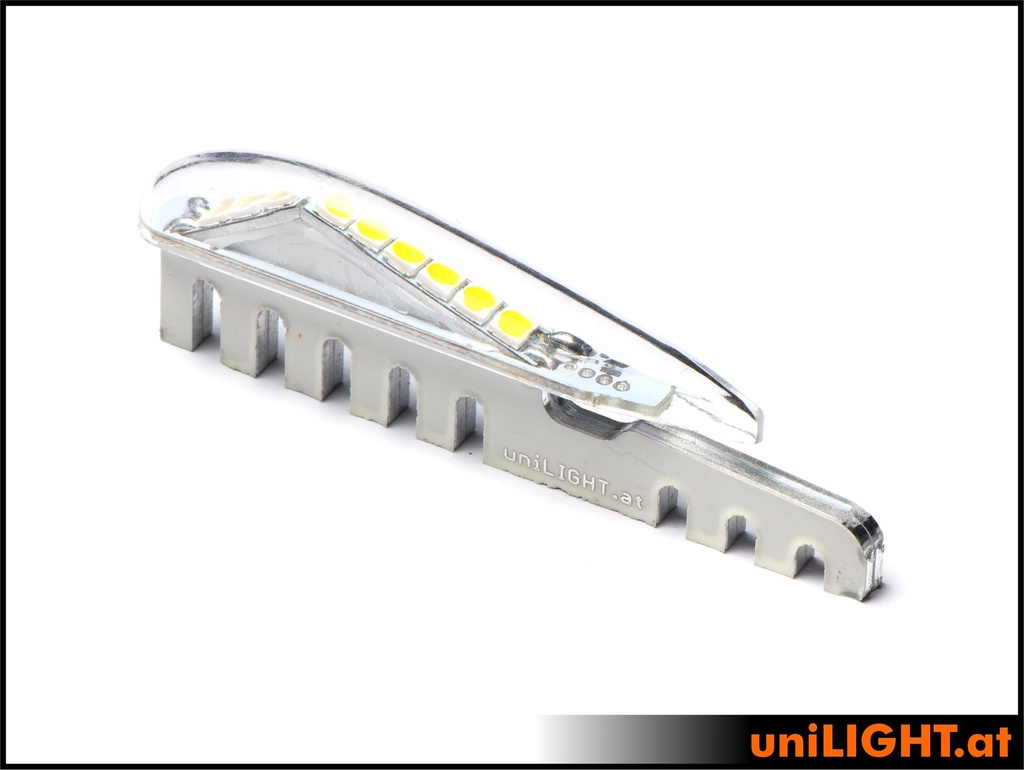

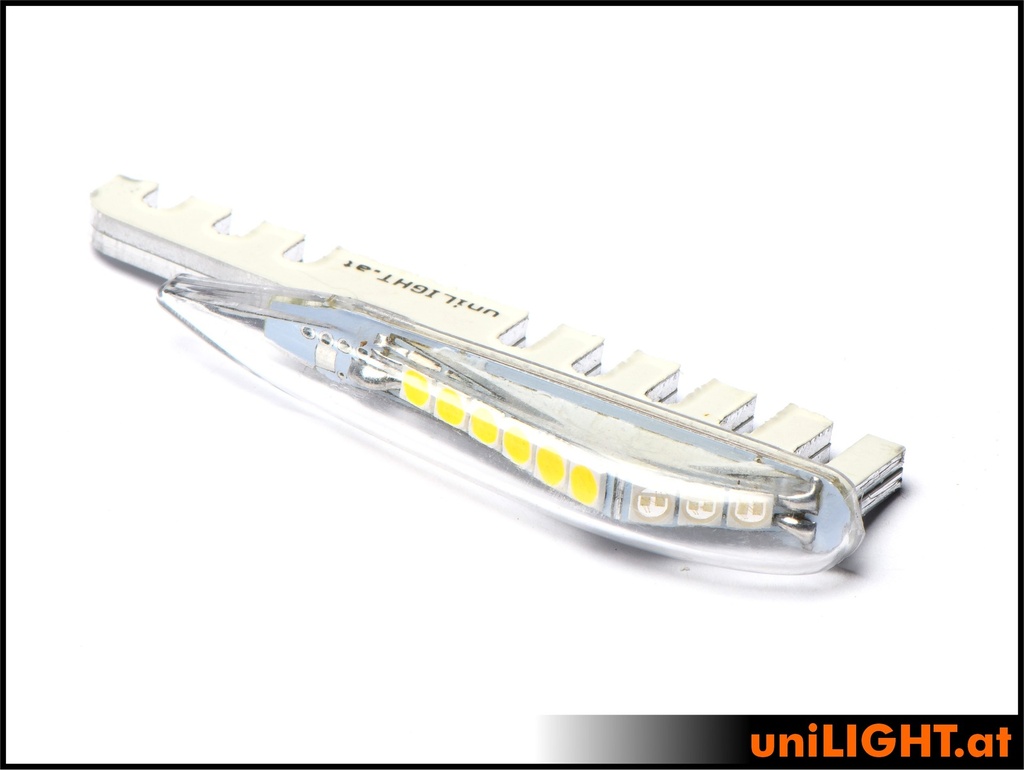

6mm DUAL Navigation + Strobe light, 9Wx2, SHORT
DUAL6X-090x2
The short version of the compact 6mm position lights line with an integrated strobe!
Ideal light for sport jets ranging from 1.5 to 2 meters in size and especially when there is no installation depth available. The angled design ensures optimal forward emission for the position light and side emission for the strobe. Provides excellent visibility with minimal glare, just like the prototypes.
The extremely compact design makes it easy to integrate in the thinnest wing tips of jets, sport aircrafts and gliders.
Performance: 4Wx2 RED/GREEN und 5Wx2 WHITE reference power
Voltage: 8(12)V; 0.2A RED/GREEN; 0.4A WHITE
Light intensity: ~90 Lumen RED
Light intensity: ~150 Lumen GREEN
Light intensity: ~470 Lumen WHITE
Dimentions: 6.6x55, 23mm
Weight: 7g (without cable)
Equipped with 1m silicone cable and a highly transparent and extremely break-proof cover cap made of injection-molded polycarbonate.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: profile-shaped |
| Function: Dual Navigation/Strobe |
| Dimensions: 6mm |
The cap must be glued to the light module on the model.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
