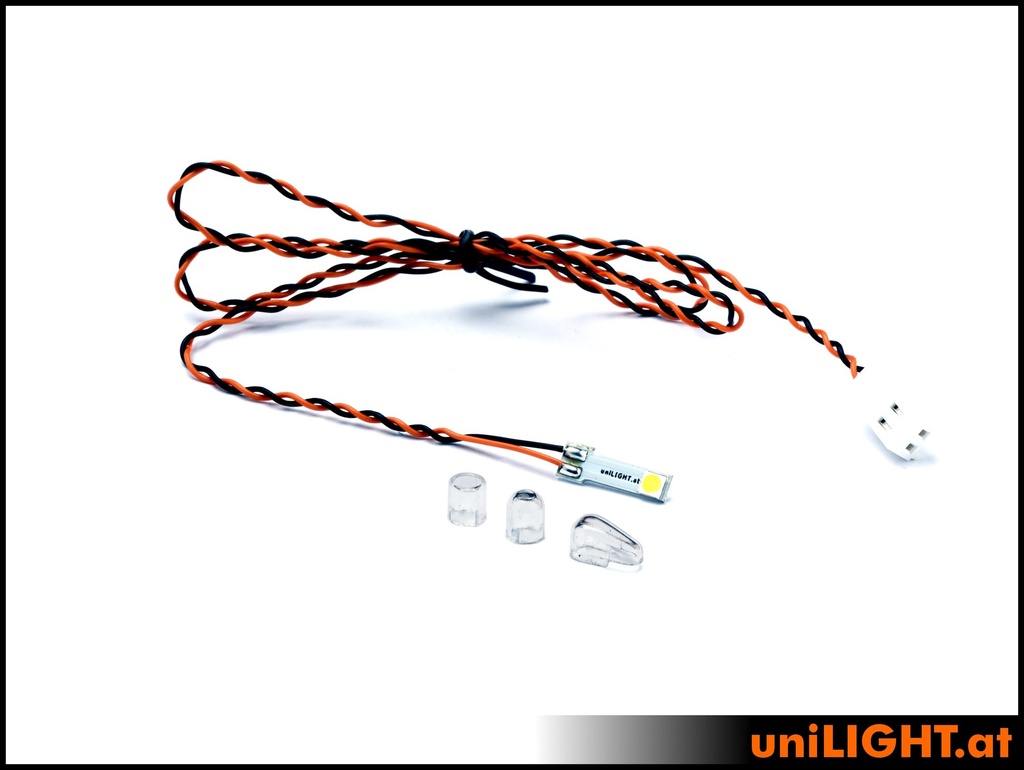

5mm PRO Navigation light, 1Wx2, SHORT
PRO5X-010x2
Extremely small and position / navigation light of the 5mm series is very compact and optically fits even with small models and helicopters even in the smallest positions. The delivery includes 3 highly transparent and break-proof polycarbonate caps and can be used according to taste and needs. In terms of size, this series corresponds approximately to the classic 5mm light-emitting diode, but with a multiple output and an enormously wide radiation.
Electricity: 1W reference power,
Voltage: 8(12)V, 0.1A
Beam angle: >120°
Light intensity: 25 Lumen RED
Light intensity: 54 Lumen GREEN
Light intensity: 90 Lumen WHITE
Dimentions: 4x15mm
Weight: 3g (without cable)
Cap 1: 5mm profile-shaped
Cap 2: 5mm round, cylindrical
Cap 3: 5mm round hemispherical, focusing
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 0.5m PTFE 0,14mm² |
| Design: profile-shaped |
| Function: Navigation/Position Light |
| Dimensions: 5mm |
Use additional resistor for 3S operation.
Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating. Attention: The LED lights are extremely bright! Never look directly into an LED!
