5mm DUAL Navigation+Strobe light, 10Wx2

https://www.unilight.at/web/image/product.template/2020/image_1920?unique=38a6efe

DUAL5-100x2

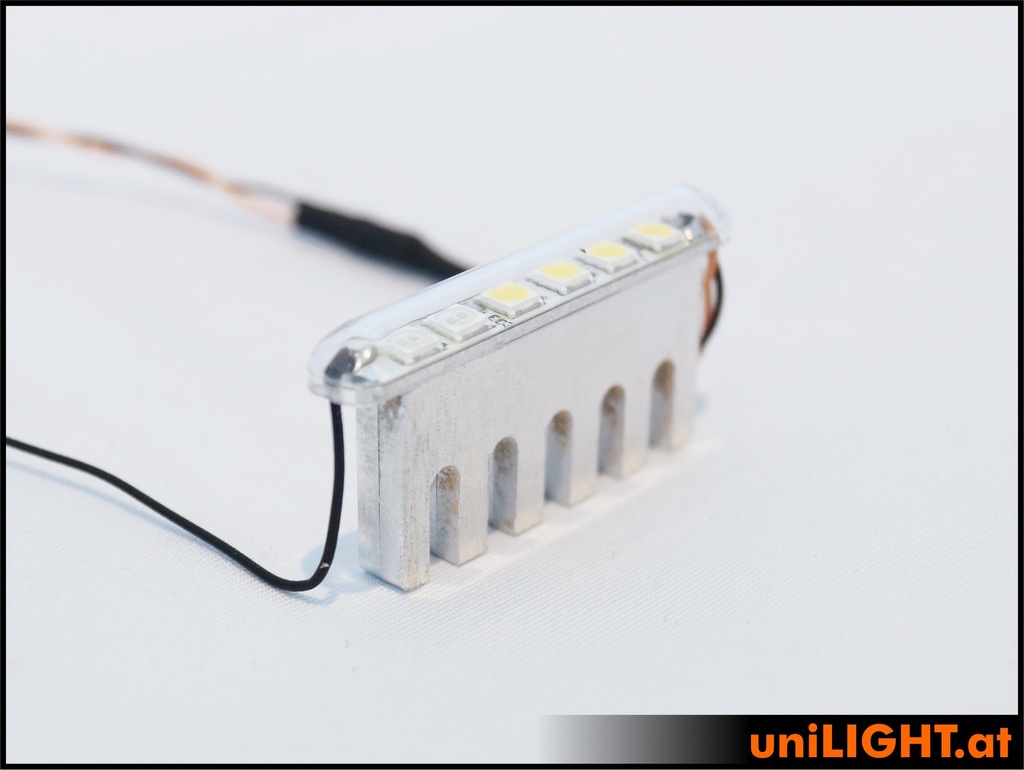

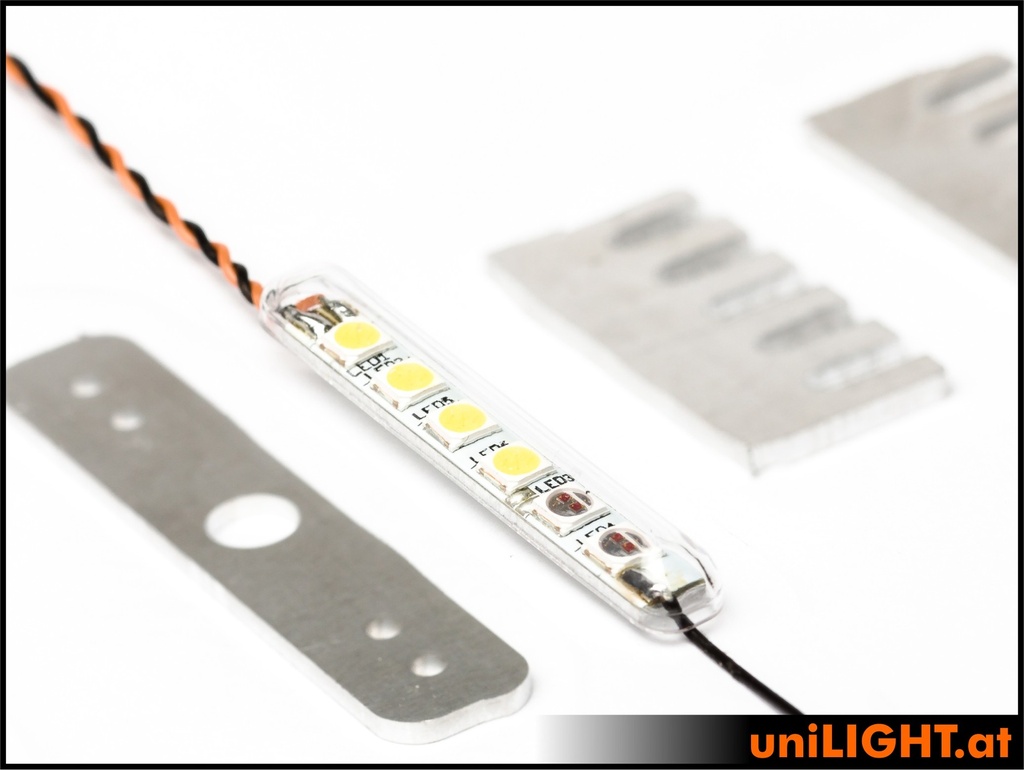

An extremely slim and powerful miniature position and strobe light in one unit

 The 5mm light bar is very slim on the outside, seamlessly integrating into small models and thin wings, making it perfect for all sport models. Due to the powerful LED emitters, it delivers exceptional light and strobe performance despite its micro dimensions, making it well-suited for larger models as well. The inwardly positioned heat sink allows for remarkably compact dimensions while maintaining a uniquely slender design.

​

Performance: 2Wx2 RED/GREEN and 8Wx2 WHITE reference power,
Voltage: 8(12)V, 0.3/0.6A
Beam angle: > 160°
Light intensity: ~100 Lumen RED
Light intensity: ~150 Lumen GREEN
Light intensity: ~580 Lumen WHITE
Dimentions: 38x5x4mm

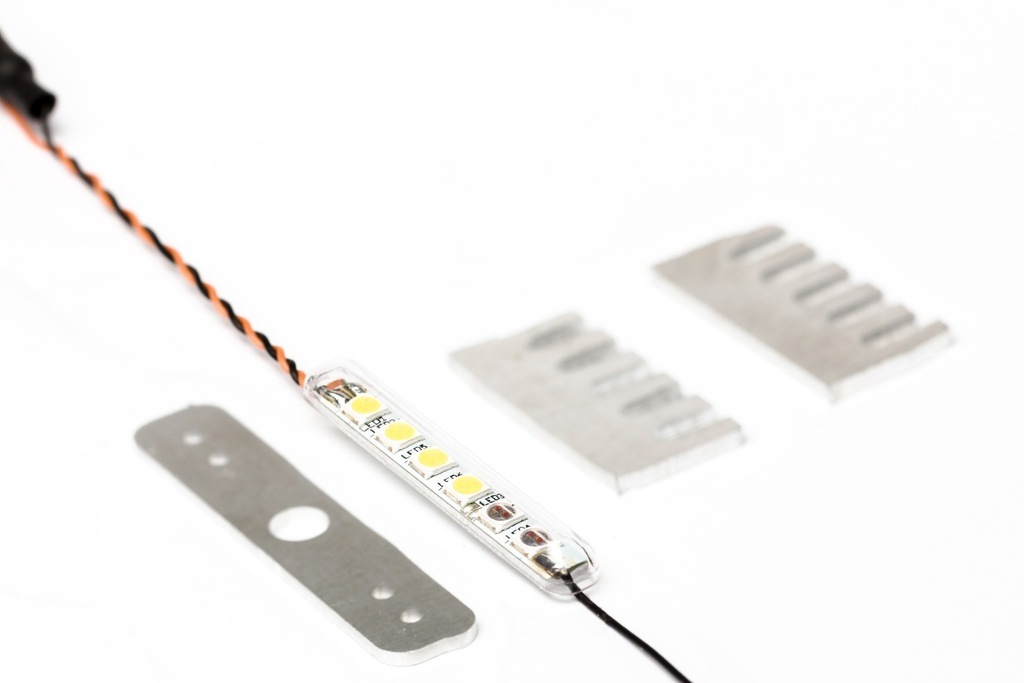

Dimentions cooling surface: 30x15x4 (use at least 2 heatsinks)
Weight:3g (without cable)

Purpose of Use:

Perfect for smaller models, thin wings and all sport models

Delivery Content:

Equipped with 2x0.5m teflon connection cable and pre-configured resistor for 2S

27.42 € 27.42 EUR 27.42 €

27.42 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Dimensions
  • Design
  • Function

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 0.5m PTFE 0,14mm²
Dimensions: 5mm
Design: Bars/Stripes
Function: Dual Navigation/Strobe

Short URL

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
