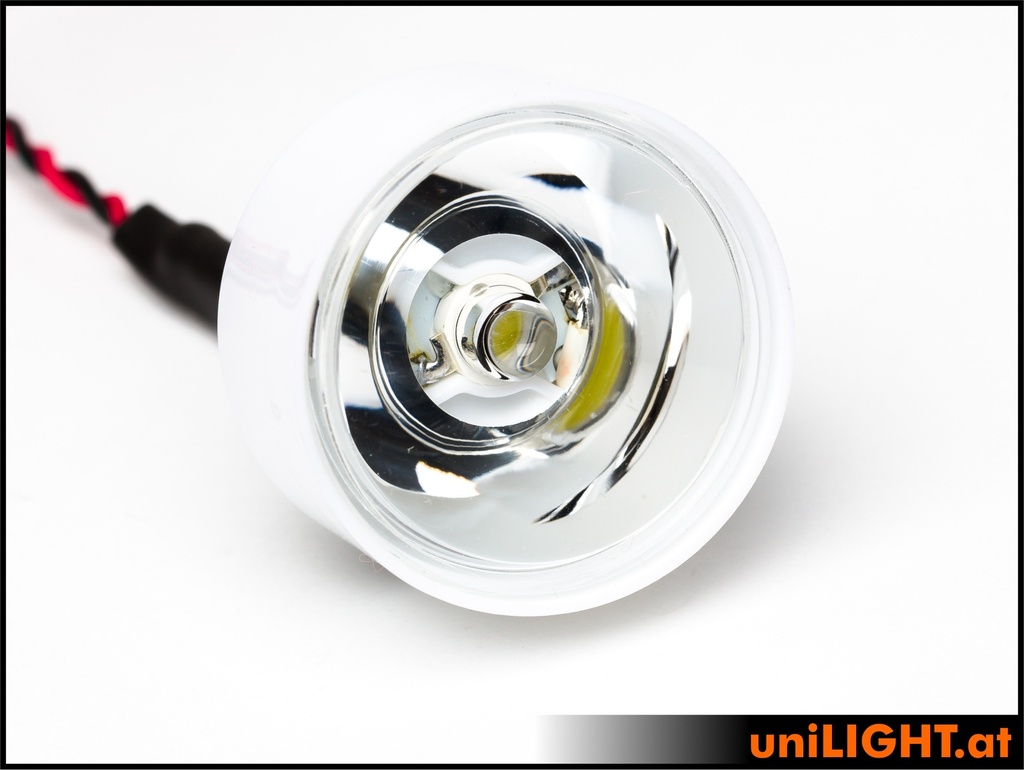

36mm ECO-Spotlight with lens, 8W, T-FUSE
SPOT36FE-080-WE
This ECONOMY series spotlight offers excellent light output, efficient beam focusing, and built-in thermal fuse for overheating protection. Designed for continuous operation, it automatically switches off when overheating occurs, safeguarding both the light and your aircraft model from damage. However, it's recommended to check the temperatures after installation, as running continuously at maximum output can reduce the LED's lifespan.
Performance: 8W reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.70A
Beam angle: ~30°
Light intensity: ~200 Lumen WHITE
Light intensity: ~190 Lumen WARMWHITE
Dimension: D36x19mm
Heat sink: 14x14x15mm
Weight: 19g (without cable)
Equipped with a 1m connection cable.
Dimensions: 35mm |
Operating Voltage: 2S/8V or 3S/12V with additional resistor |
Cable Length: 1m Silicone 0.25mm² |
Design: Round |
Function: Spot |
Please check the temperatures after installation, as running continuously at maximum output can reduce the LED's lifespan.
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3-4 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
