35mm Dropout Spotlight, 8Wx2, T-FUSE, HV
FLIP35HVF-080x2

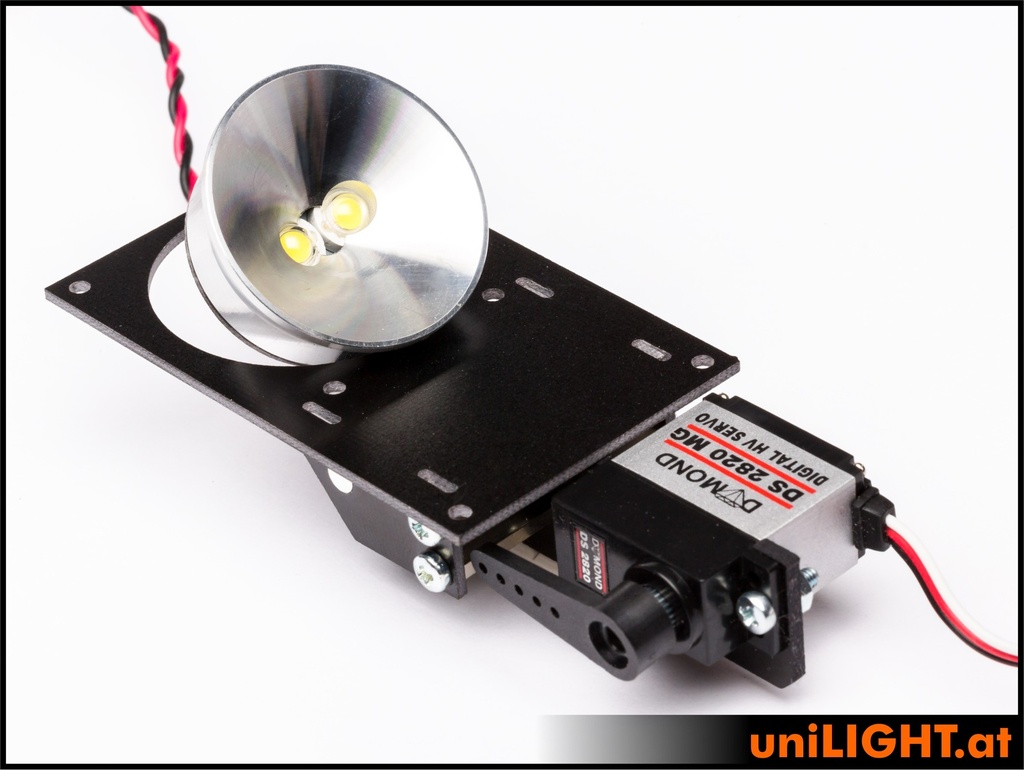

High Power 35mm Dropout Spotlight
High performance drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use!
Flat 35mm 8Wx2 spotlights with thermal fuse are used for our pre-assembled spotlights. They allow enormous luminous power in small dimensions. A Kingmax KM1203 HV Servo is integrated in the mechanics, which means you only have to define the mounting position and install the pull rod. The construction with the enclosed parts allows three different mounting positions of the rotation axis to the servo: In front of the axis, behind the axis or for compact fuselage mounting above the axis.
Power: 8Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C
Voltage: 8V, use additional resistor for 12V!
Current: 0.7A
Beam angle: ~110°
Light intensity: 430 lumens WHITE
Light intensity: 400 lumens WARM WHITE
Weight: 55g (with servo)
Mounting BEHIND axle
Mounting OVER axle
Overtemperature protection: at 65-70° the light is switched off or switched off safely
Ready assembled with 1m connection cable
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 35mm |
| Function: Flip Spotlights |
Documents
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.
Attention: The LED lights are extremely bright! Never look directly into an LED!
