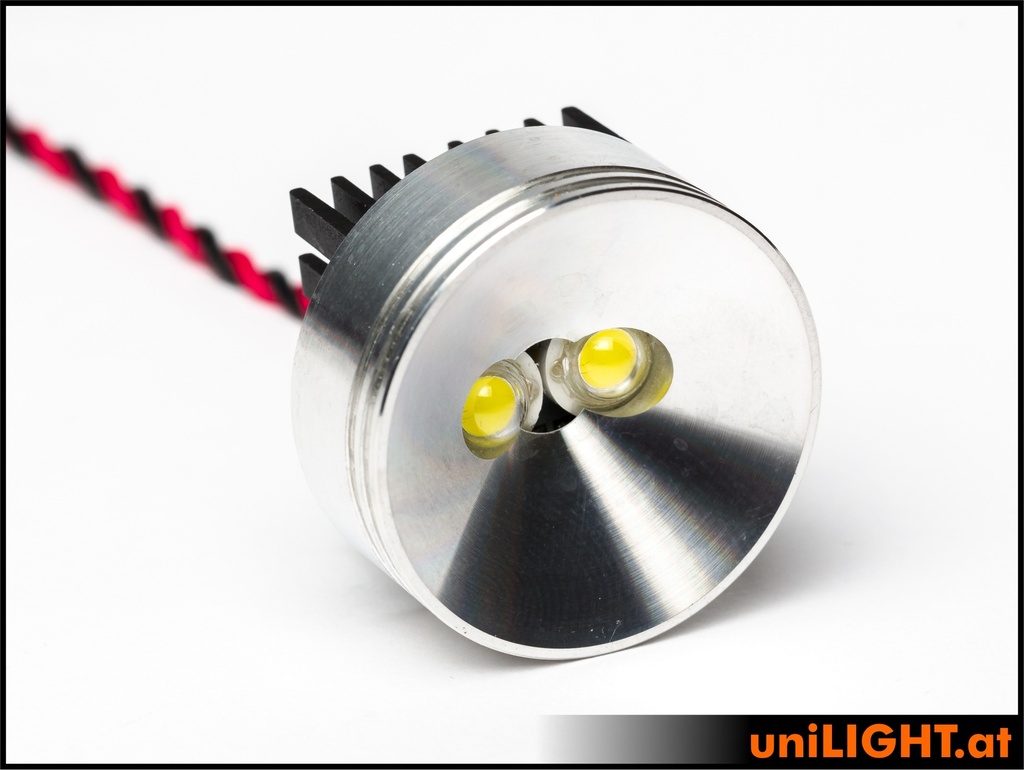

30mm Aluminum Spotlight, 8Wx2, T-FUSE
SPOT30F-080x2
High-quality spotlight with a solid, CNC-manufactured aluminum reflector with a diameter of 30 mm. With its extremely compact design and wide 100° beam angle, this spotlight delivers outstanding light performance, making it ideal for larger models. The combination of powerful light output and wide beam angle ensures excellent visibility in all conditions. The spotlights are equipped with an integrated thermal fuse. If the unit becomes too warm during operating, the light will shut off automatically.
Perfect for installation in tip tanks, engine cowls, or as landing lights in large high-wing models. Its compact design also makes it well-suited for use in the nose of the fuselage and as a drop-down spotlight.
Performance: 8Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.7A
Beam angle: ~110°
Light intensity: ~220x2 Lumen WHITE
Light intensity: ~200x2 Lumen WARMWHITE
Dimension: D30x21mm
Weight: 15g (without cable)
Perfect for installation in tip tanks, engine cowls, or as landing lights in large high-wing models. Its compact design also makes it well-suited for use in the nose of the fuselage and as a drop-out spotlight.
Equipped with a 1m connection cable.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Dimensions: 30mm |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Function: Spot |
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 5 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
