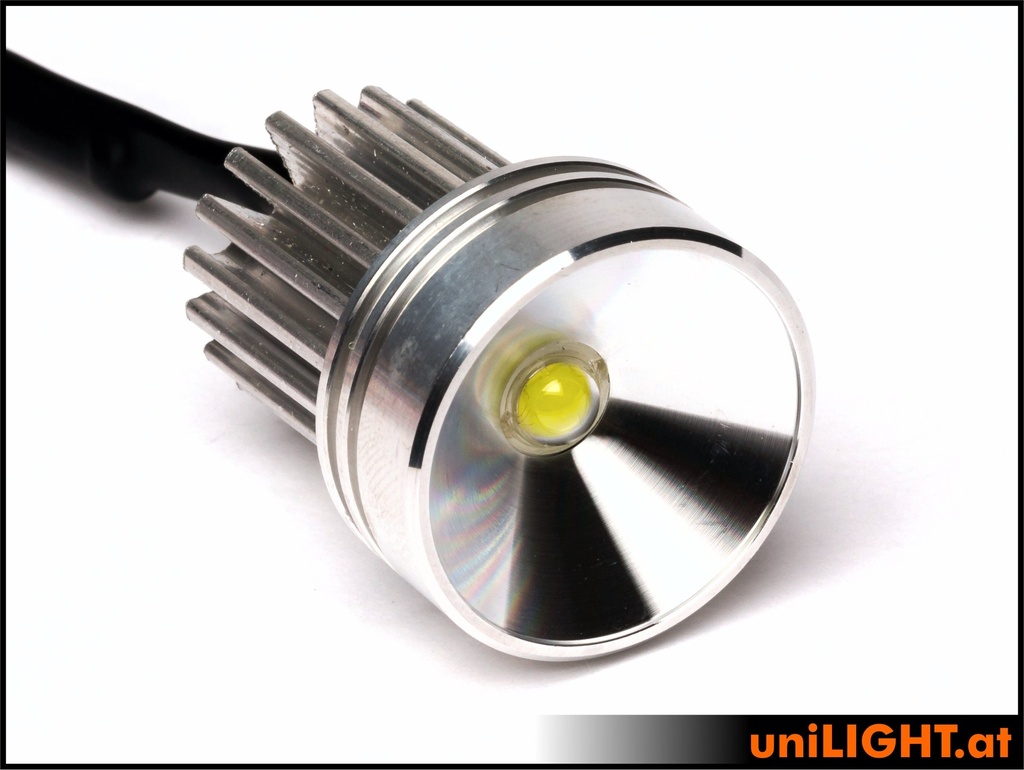

26mm Ultra Power Spotlight, 8Wx2, T-FUSE

https://www.unilight.at/web/image/product.template/1249/image_1920?unique=5d0bd55

SPOT26F-080x2

Ultra Power spotlight with up to 400 lumen light output

Flat spotlight with up to 400 lumens of light output and CNC-manufactured aluminum reflector, measuring 26mm in diameter. The LED emitter is equipped with 4 Cree-chips to achieve a remarkable light output in a minimal space.

The spotlights are equipped with an integrated thermal fuse. If the unit becomes too warm during operating, the light will shut off automatically.

​

Performance: 8Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.7A
Beam angle: ~100°
Light intensity: ~500 Lumen WHITE
Light intensity: ~450 Lumen WARMWHITE
Dimension: D26x31mm, mounting hole D10mm
Weight: 14g (without cable)

Purpose of Use:

Ideal for medium-sized models and when prominently visible spotlights are a priority.

Delivery Content:

Equipped with a 1m connection cable.

29.08 € 29.08 EUR 29.08 €

29.08 €

Not Available For Sale

  • Colour
  • Cable Length
  • Operating Voltage
  • Dimensions
  • Design
  • Function

This combination does not exist.

Contact Us
Cable Length: 1m Silicone 0.25mm²
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Dimensions: 26mm
Design: Round
Function: Spot

Short URL

Assembly Instruction:

A 10mm mounting hole is required.

Warning Notice:

Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
