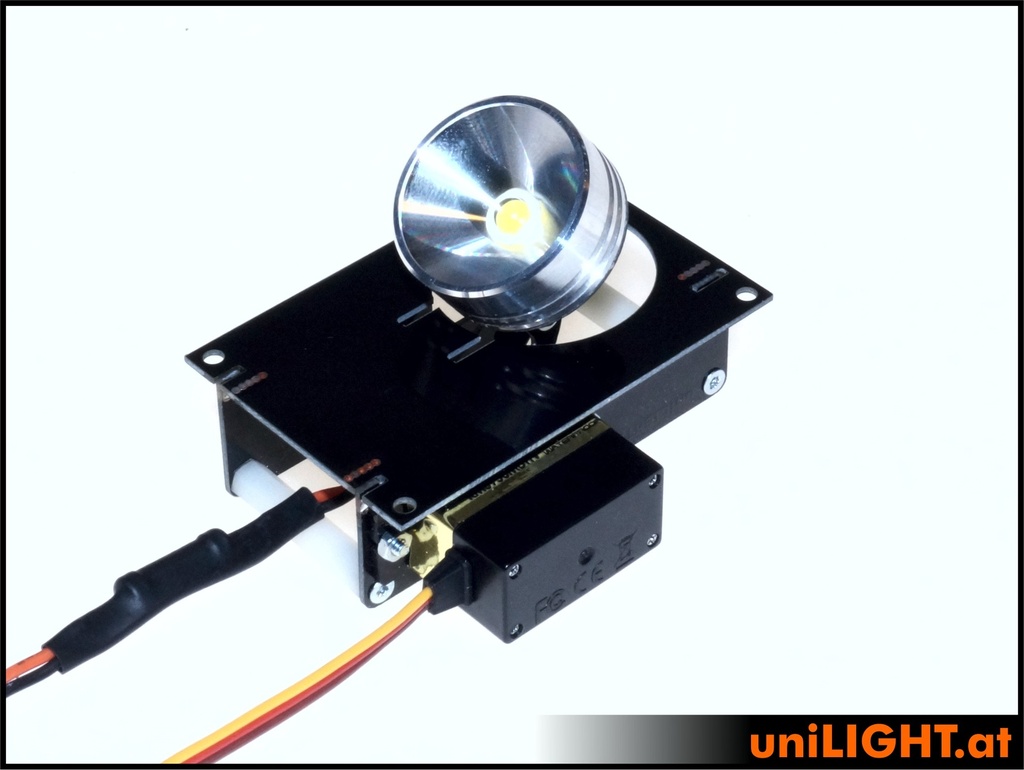

26mm Drop-out Spotlight, 8Wx2, T-FUSE, HV

https://www.unilight.at/web/image/product.template/877/image_1920?unique=c7f5b84

FLIP26HVF-080x2

Powerful high-performance spotlight in a compact casing.

Space-efficient drop-out spotlight now easier than ever. Inspired by many full-scale aircraft, this feature can now be quickly and effortlessly integrated into model planes. An excellent addition for any aircraft, whether for scale realism, as a brake flap, or simply for practical use! Now with Kingmax KM950HV Servo, making it compatible with any system.

​

Technical Data:

Power: 8Wx2 reference power
Voltage: 8V, use additional resistor for 12V!
Current: 0.70A
Beam angle: ~100°
Light intensity: ~400 lumens WHITE
Light intensity: ~350 lumens WARM WHITE
Dimensions frame: 61x27mm, height 19mm
Weight: 41g (including servo)

Overtemperature protection: at 65-70° the light is switched off or switched off safel

Delivery Content:

Ready assembled with 1m connection cable

62.42 € 62.42 EUR 62.42 €

62.42 €

Not Available For Sale

  • Colour
  • Operating Voltage
  • Cable Length
  • Design
  • Dimension
  • Function

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: Round
Dimension: 26mm
Function: Flip Spotlights

Short URL

Assembly Instruction:

The unit is fully assembled, attach the base plate with adhesive (e.g., UHU 300) as needed and adjust servo position

Warning Notice:

Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
After installation, check the temperatures. The service life of the LED suffers if it is constantly operated at the upper power limit.

Attention: The LED lights are extremely bright! Never look directly into an LED!
