25mm Ultra Power Spotlight, 10Wx2, T-FUSE
SPOT25F-100x2-45
Ultra Power spotlight with over 700 lumen light output!

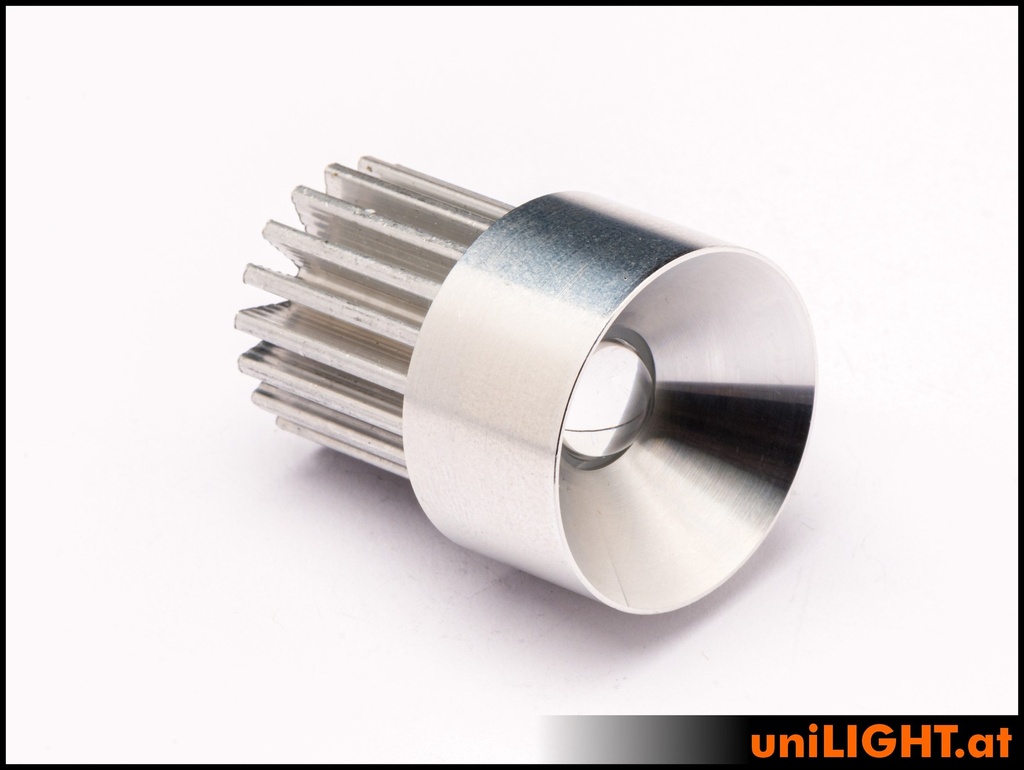

Ultrapower spotlight with integrated optics and over 700 lumens of light output, exceptional brightness thanks to high-performance COB chip technology. The CNC-manufactured aluminum reflector with a diameter of 25 mm and the integrated temperature fuse ensure an optimal balance between performance and weight. These headlights are already equipped with built-in optics, which further enhances their efficiency. By default these lights have a beam angle of approx. 90°. Alternatively there is also a well-bundled 45 ° beam angle light option.
These spotlights are equipped with an integrated thermal fuse. If the unit becomes too warm during operating, the light will shut off automatically. Without an additional cooling those spotlight can only operate for approx. 4-5 minutes at a time, thereafter the fuse will switch the light off or it will start flashing.
Performance: 10Wx2 reference power
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Voltage: 8V, use an additional resistor for 12V!
Electric current: 0.8A
Beam angle: ~90° or ~45°
Light intensity: ~720 Lumen WHITE
Light intensity: ~720 Lumen WARMWHITE
Dimension: D34x25mm
Weight: 18g (without cable)
Perfect for models that feature prominently visible spotlights
Equipped with a 1m connection cable.
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Dimension: 25mm |
| Design: Round |
| Function: Spot |
Ensure sufficient cooling during operation. Our spotlights are optimized for use in model construction and should only be operated for about 3 minutes at a time with a fully charged battery without an additional cooling – intended for use as landing lights! For other applications, improving the cooling is, of course, always possible.
Warning: The LED lights are extremely bright! Never look directly into an LED!
