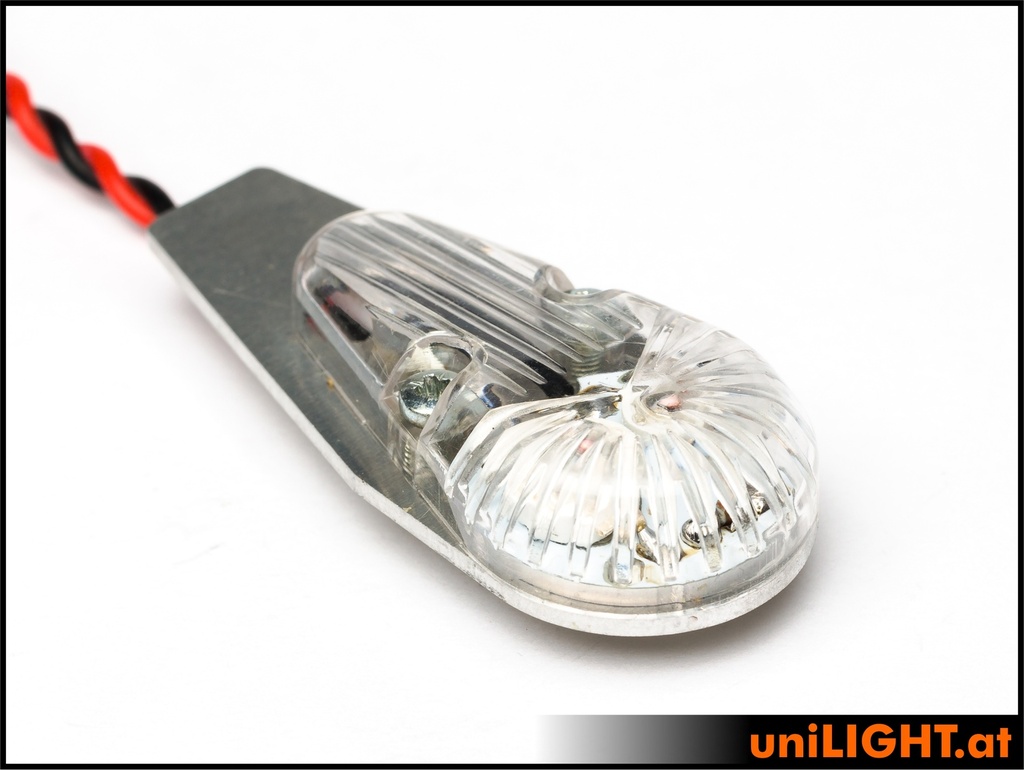

24mm PRO Navigation light, 8Wx2, T-Fuse

https://www.unilight.at/web/image/product.template/1451/image_1920?unique=38a6efe

PRO24F-080x2

Position/Navigation light with an integrated thermal fuse. This profile light of the 24mm range is suitable for larger models with a wingspan of around 2.5 meters or more.
The profile-shaped polycarbonate cover is screwed on and can be individually painted if desired. It is highly transparent and impact-resistant, ensuring durability and optimal light diffusion.

Technical Data:

Performance: 8W Referenzleistung,
Voltage: 8(12)V, 0.7A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: >160°
Light intensity: ~180 Lumen RED
Light intensity: ~280 Lumen GREEN
Light intensity: ~400 Lumen WHITE
Dimentions Base plate: 24x56x9mm
Mount base thickness: 2mm
Weight: 9g (without cable)

Delivery Content:

Equipped with 1m silicone cable and pre-configured resistor for 2S.

22.42 € 22.42 EUR 22.42 €

22.42 €

Not Available For Sale

  • Operating Voltage
  • Cable Length
  • Colour
  • Design
  • Function
  • Dimensions

This combination does not exist.

Contact Us
Operating Voltage: 2S/8V or 3S/12V with additional resistor
Cable Length: 1m Silicone 0.25mm²
Design: profile-shaped
Function: Navigation/Position Light
Dimensions: 24mm

Short URL

Warning Notice:

Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
