22mm ROUND strobe light, 16Wx2, SHORT
RND22X-160x2
Compact strobe light with 22mm diameter
The powerful strobe light in the 22mm class has a light output of over 1200 lumens, but can be easily mounted on any surface due to its flat design. Suitable as ACL, strobe or beacon.
Please note that heat development depends on the chosen light pattern - due to the low aluminum content, only short patterns are possible on the ground, but this is no longer an issue in the air. The dimensions refer to the size of the cap.
Electric: 16W reference power in x2 technology,
Voltage: 8V / 12V, 1.35A
Beam angle: 360 °
Light intensity: ~ 430 lumens RED
Light intensity: ~ 800 lumens GREEN
Light intensity: ~ 1200 lumens WHITE
Dimension: D22x17mm cylinder, 22x14mm round cap
Base plate: 25x4mm
Weight: 4g (without cable)
Suitable as a strobe, beacon or ACL

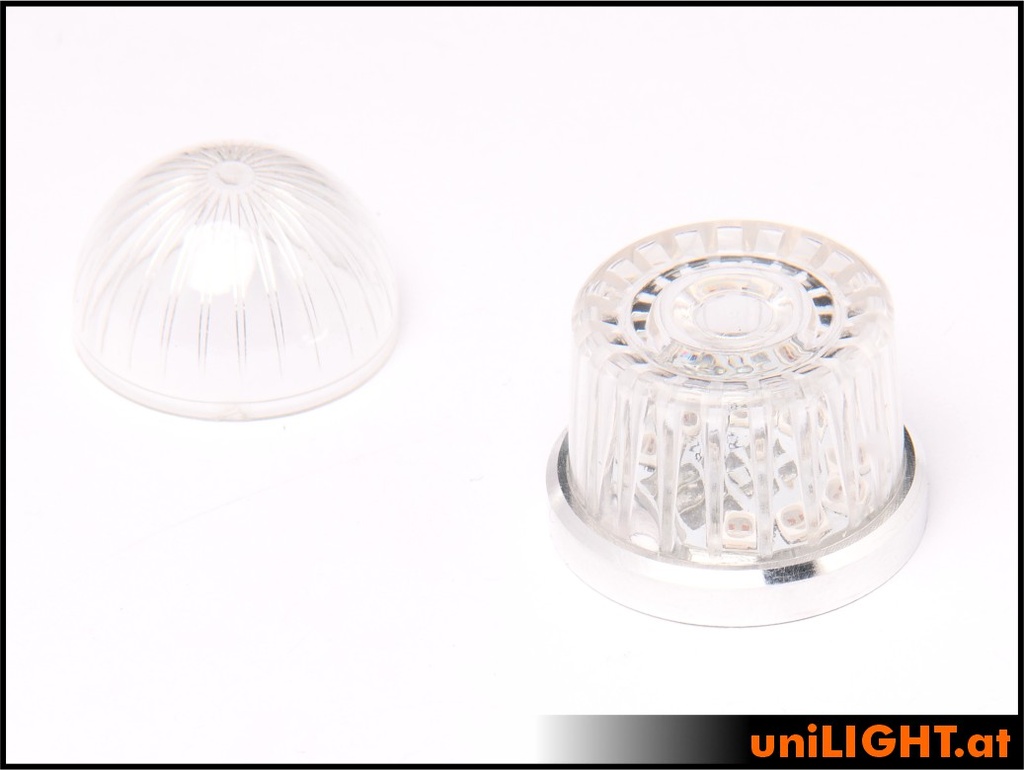

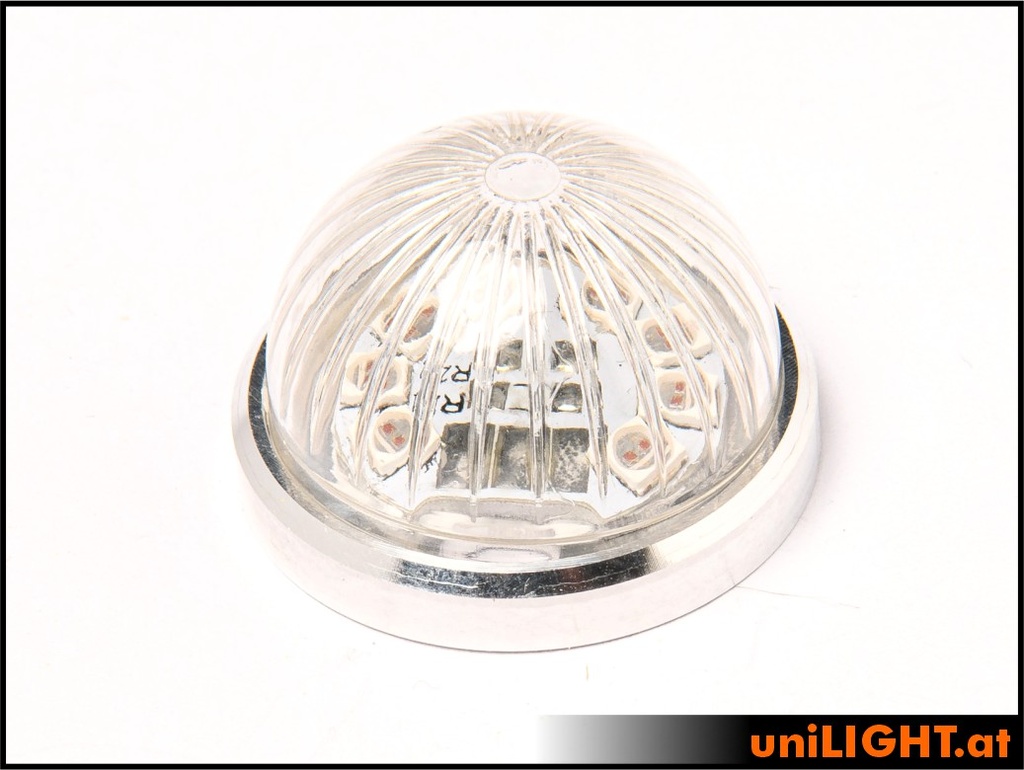

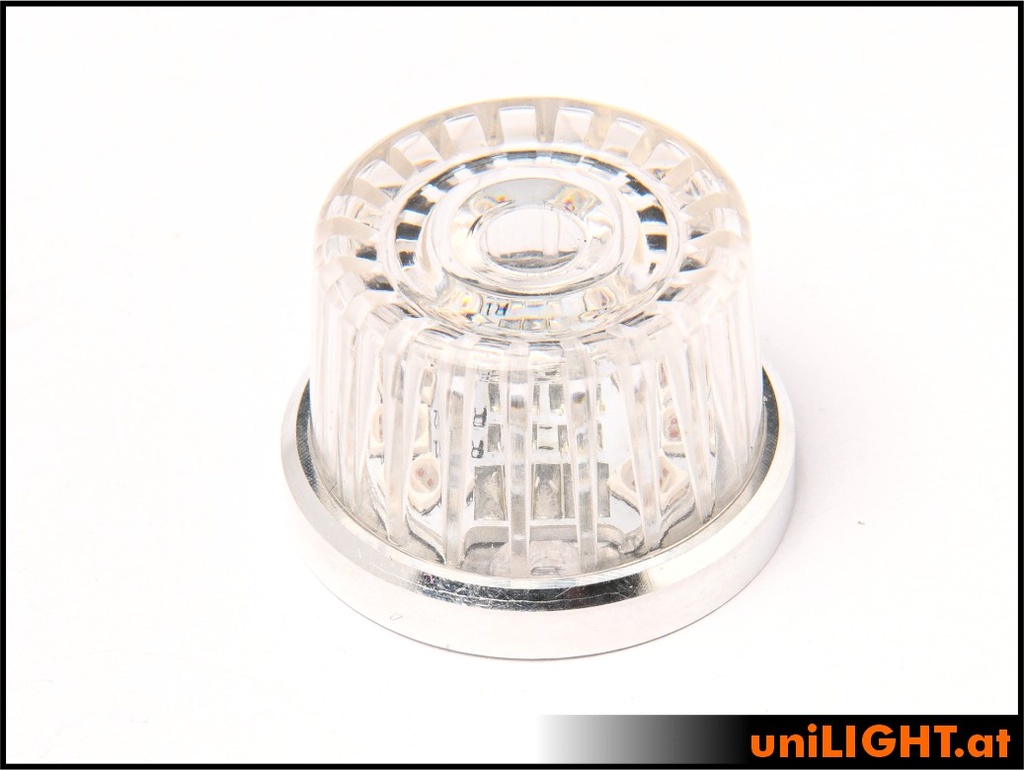

These round lights come with an attachable cylindrical and a spherical caps made of highly transparent polycarbonate.
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Cable Length: 1m Silicone 0.25mm² |
| Design: Round |
| Dimension: 22mm |
| Function: Strobe |
The cap selection and gluing are carried out directly on the model. Appropriate adhesives include: epoxy and Uhu Por.
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
