22mm ROUND Navigation light, 10Wx2, T-Fuse
RND22F-100x2
Powerful Navigation light with 22mm diameter und a thermal fuse!
One of the most powerful position lights in the uniLIGHT.at range! The multi-chip design allows for extreme brightness with a compact build and minimal heat generation. The perfect light for high-level large models.
The faceted cap results in perfect illumination across the entire horizon.
The light is equipped with an integrated thermal fuse that shuts off at 65°C and automatically reactivates after cooling down.
Performance: 10W reference power in 2x technic;
Voltage: 8V/12V; 0.8A
Overheating protection: the lights will safely turn off/be cycled at 65-70°C.
Beam angle: ~180°
Light intensity: ~270 Lumen RED
Light intensity: ~400 Lumen GREEN
Light intensity: ~650 Lumen WHITE
Dimentions: D22x53mm
Weight: 18g (without cable)

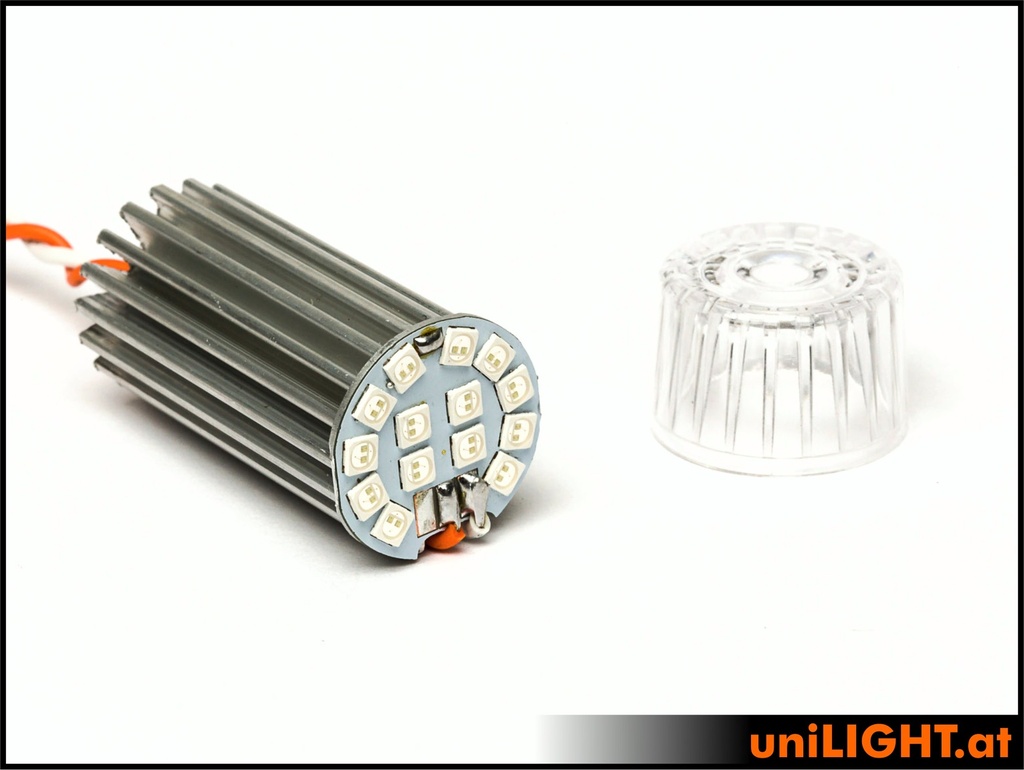

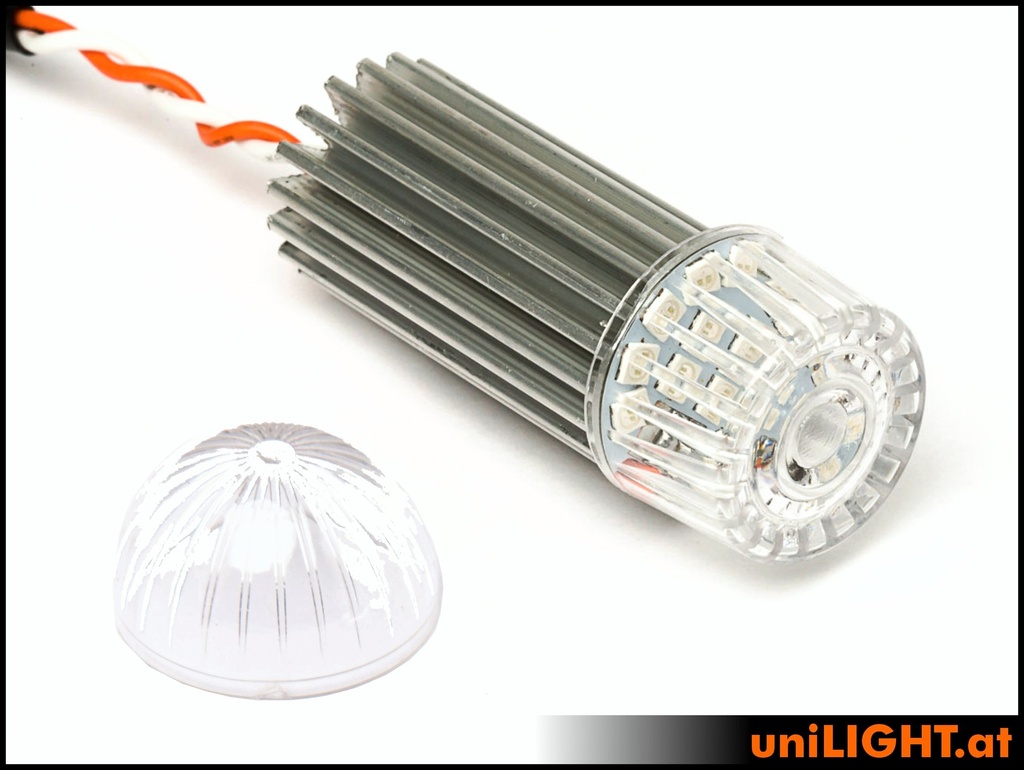

The round lights come with two attachable 19mm caps made of highly transparent polycarbonate. Ready assembled with 2 high-quality polycarbonate caps (1xball, 1xcylinder).
Equipped with 1m silicone cable and pre-configured resistor for 2S, use an additional resistor for 3S.
| Cable Length: 1m Silicone 0.25mm² |
| Operating Voltage: 2S/8V or 3S/12V with additional resistor |
| Design: Round |
| Dimension: 22mm |
| Function: Navigation/Position Light |
Without the cap the light can be easily installed in edge arches and prefabricated recesses.
Please pay attention to the operating temperature, we cannot accept any warranty due to overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
